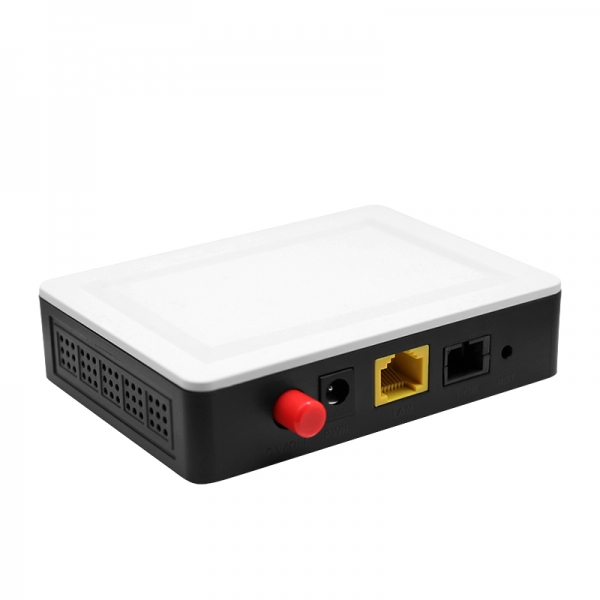

Hardware Specification
|
Technical item |
Details |
|
PON Interface |
1 EPON BOB（PX20+/PX20++）） |
|
Receiving sensitivity: ≤-27dBm/≤-28dBm |
|
|
Transmitting optical power: 0~+4dBm/+2~+7dBm |
|
|
Transmission distance: 20KM |
|
|
Wavelength |
TX: 1310nm, RX: 1490nm |
|

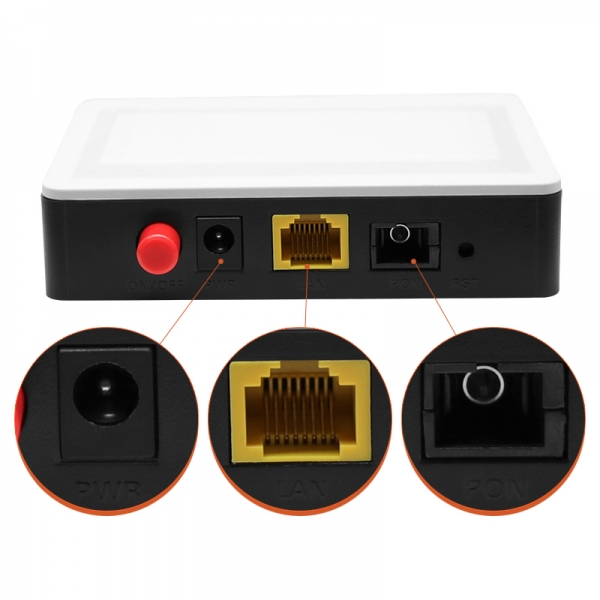

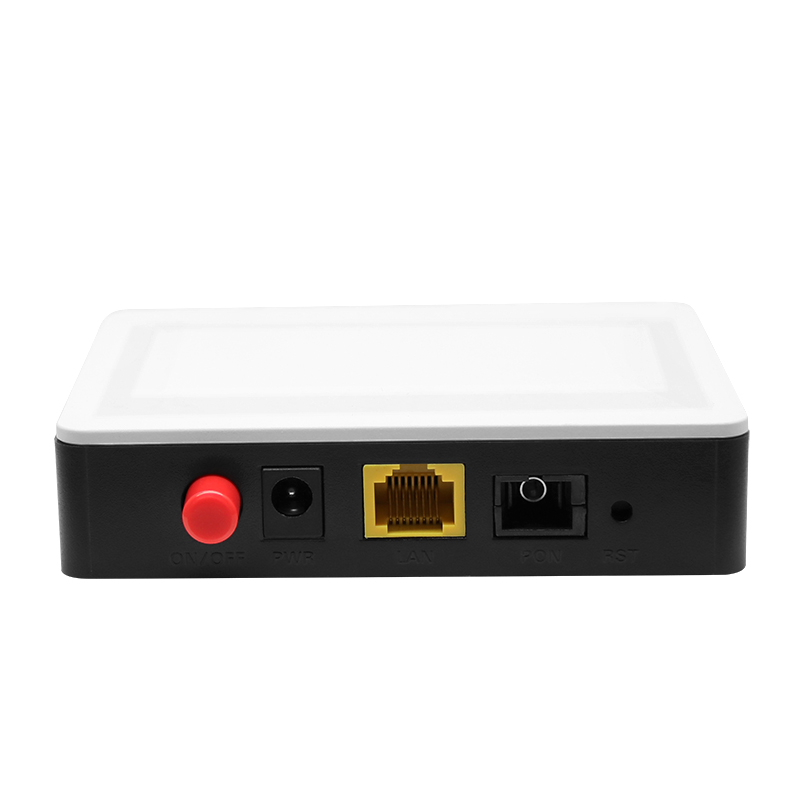

Optical Interface |
SC/UPC Connector |
|
Chip Spec |
RTL9601D ,CPU 300MHz,DDR2 32MB |
|
Flash |
SPI Nor Flash 8MB |
|

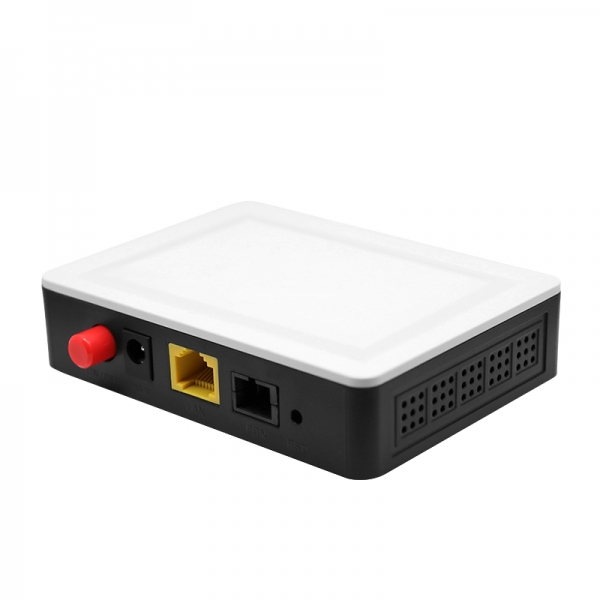

LAN Interface |
1x 10/100/1000Mbps auto adaptive Ethernet interface. RJ45 connector |
|
LED |
4 LED, For Status of PWR、LOS、PON、LINK/ACT |
|
Push-Button |
2,For Function of Power on/off,Reset |
|
Operating Condition |
Temperature: 0℃~+50℃ |
|
Humidity: 10%～90%（non-condensing） |
|
|
Storing Condition |
Temperature: -30℃~+60℃ |
|
Humidity: 10%~90%（non-condensing） |
|
|

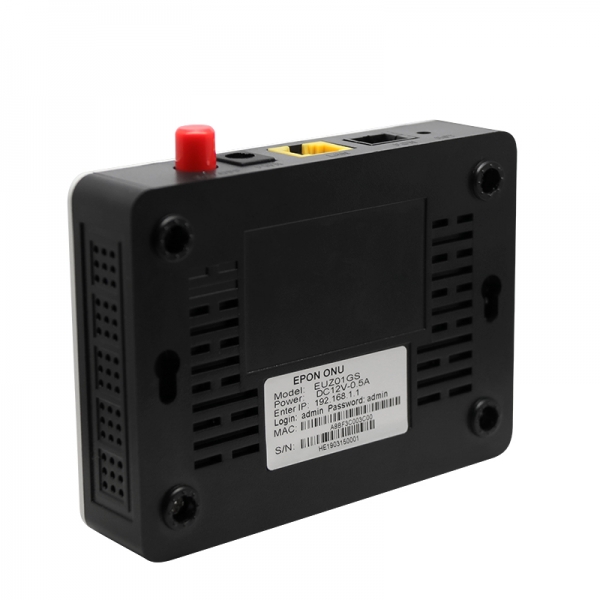

Power Supply |
DC 12V/0.5A |
|
Power Consumption |
<3W |
|
Dimension |
120mmx78mmx30mm(L×W×H) |
|
Net Weight |
0.13Kg |
Panel lights Introduction
|
Pilot |
Status |
Description |
|
PWR |
On |
The device is powered up. |
|
Off |
The device is powered down. |
|
|
PON |
On |
The device has registered to the PON system. |
|
Blink |
The device is registering the PON system. |
|
|
Off |
The device registration is incorrect. |
|
|
LOS |
Blink |
The device doses not receive optical signals. |
|
Off |
The device has received optical signal. |
|
|
LINK/ACT |
On |
Port is connected properly (LINK). |
|
Blink |
Port is sending or/and receiving data (ACT). |
|
|
Off |
Port connection exception or not connected. |
Application
n Typical Solution：FTTO(Office)、 FTTB(Building)、FTTH(Home)
n Typical Business：INTERNET、IPTV etc
