WDM Series

8 Channel CWDM Multiplexer Demultiplexer 1270-1610 nm

Feature



2-44 channels DWDM Mux/Demux (CH17-CH61)
Channel spacing: 0.8nm(100GHz Grid C-Band)
Protocol transparent (10Mbps to 100Gbps)
Low insertion loss
Excellent channel isolation
Epoxy-free optical path
Compliant to G.657A1 standard
ISO 9001 manufacturing facility
Wide Operating Temperature: -20~+70℃

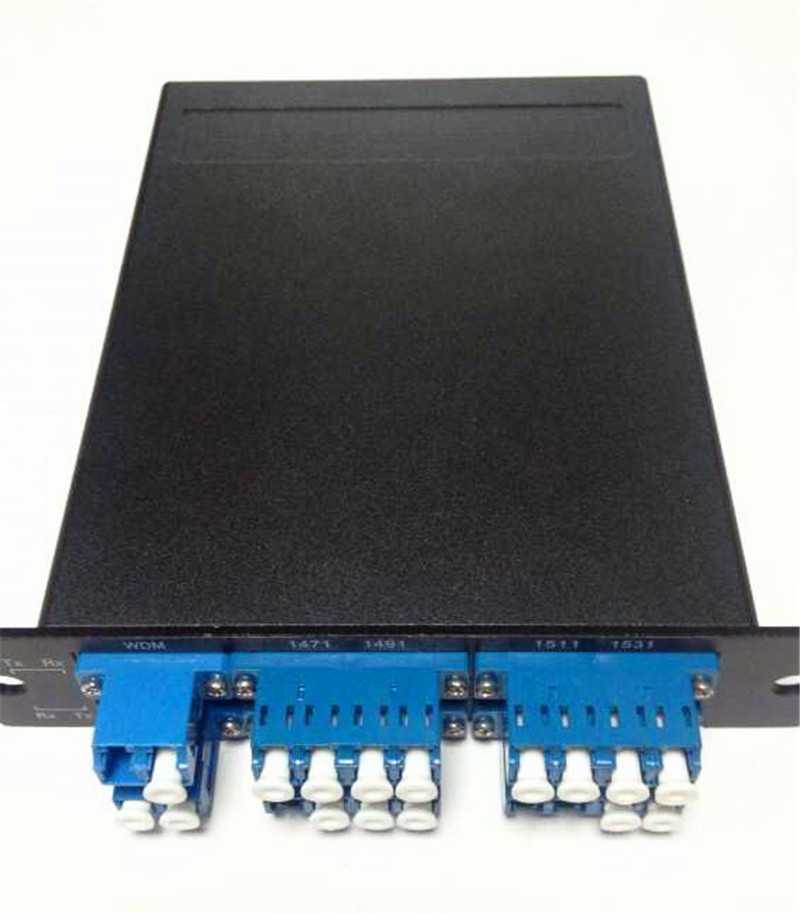

    8 Channel CWDM Multiplexer Demultiplexer 1270-1610 nm LGX Cassette With Monitor Port

    Wavelength Range nm 1260 ~ 1620
    Channel Center Wavelength nm 1270 / 1290 / … / 1610 or 1271 / 1291 / … /1611
    Channel Spacing nm 20
    Channel Passband nm λc ± 7.5
    Channel No. λ         18
    Insertion Loss dB ≤0.8 ≤1.5 ≤2.5 ≤5.2 ≤6.4
    Adjacent Channel Isolation dB ≥ 30
    Non-adjacent Channel Isolation dB ≥ 40
    Wavelength thermal stability nm/°C ≤ 0.003
    Insertion loss thermal stability dB/°C ≤ 0.005 ≤ 0.007 ≤ 0.008
    PDL dB ≤ 0.1 ≤0.15 ≤ 0.15 ≤ 0.20 ≤ 0.25
    Polarization mode dispersion ps ≤ 0.1 ≤ 0.15
    Directivity dB ≥ 50
    Return loss dB ≥ 45
    Optical Power mW ≤ 500
    Operating Temperature °C -10 ~ +70
    Storage Temperature °C -40 ~ +85
    Relative Humidity % 5 ~ 95

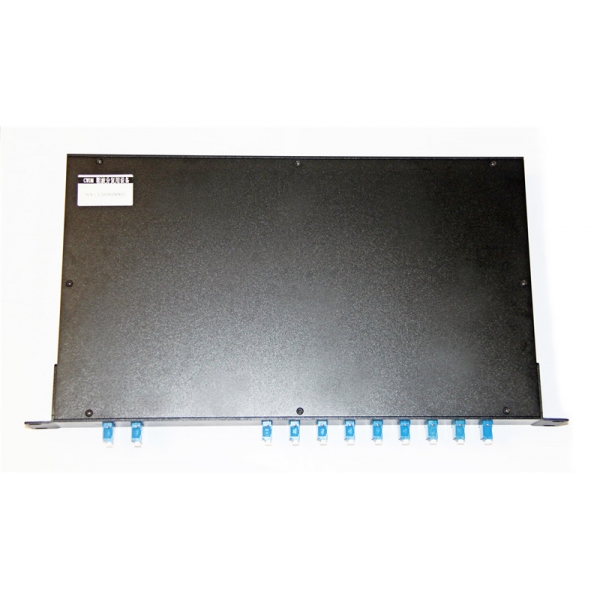

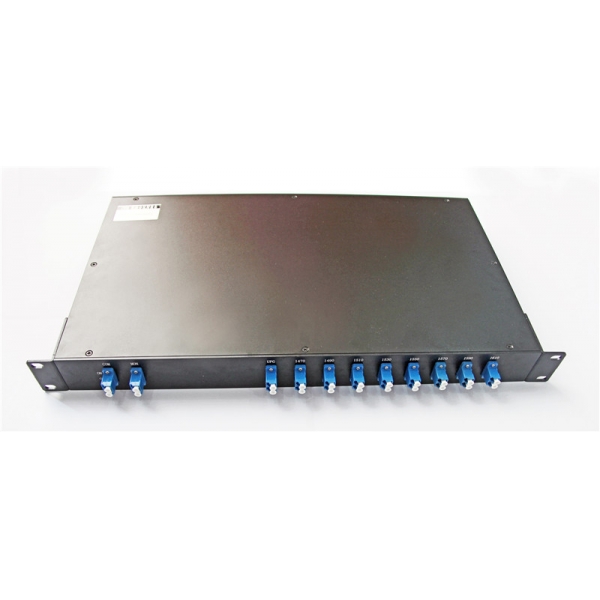

    Dimension   1U Rackmount
