WDM Series

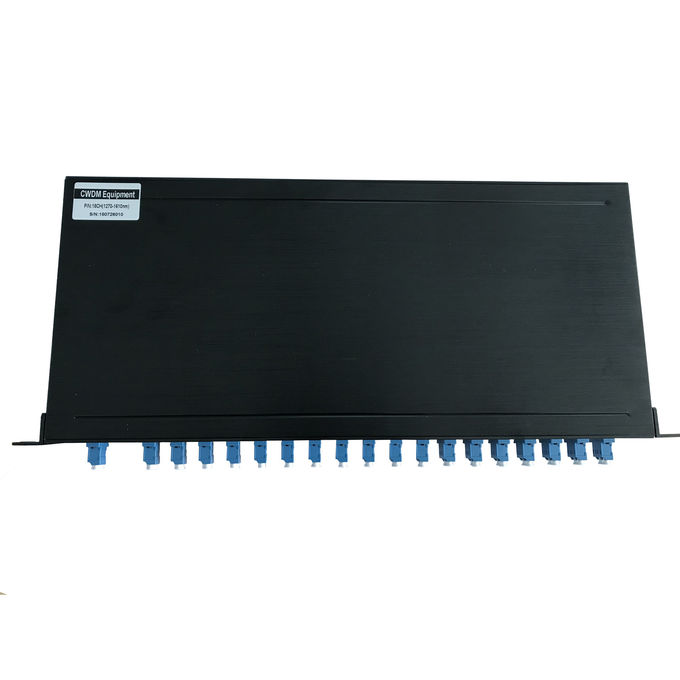

1U WDM BOX

Features

100GHz ITU Channel Spacing
Low insertion loss
broadband transmission
high channel isolation
High stability and reliability
Epoxy-free optical path

    Features

    ●100GHz ITU Channel Spacing

    ●Low insertion loss

    ●broadband transmission

    ●high channel isolation

    ●High stability and reliability

    ●Epoxy-free optical path

    Applications

    1. Channel Mux/Demux

    2. DWDM system

    3.Router

    4.Fiber optical amplifier

    5. CATV system

    Specifications 详细说明



    Mux

    Demux

    Channel Wavelength (nm)

    1530.33~1560.61(21~59 ITU grid

    Central Wavelength Accuracy (nm)

    ± 0.5

    Min Channel Spacing (GHz)

    100

    Passband (@-0.5dB bandwidth)(nm)

    >0.22

    Insertion LossdB)

    Add/Drop Ch.

    1.0

    Reflective Ch.

    ≤0.4

    Passband Flatness(dB

    ≤0.3

    Add/Drop channel Isolation(dB) 上

    Adjacent Channel

    N/A

    25

    Non-adjacent Channel

    N/A

    35

    Reflective IsolationdB)

    12

    Insertion Loss Temperature (dB/°C )

    ≤0.003

    Wavelength Temperature Shifting (nm/ °C )

    ≤0.002

    PDL (dB)

    ≤0.1

    PMD (ps)

    ≤0.1

    Directivity (dB)

    50

    Return Loss (dB)

    45

    Rated power (mW)

    500

    Operation Temperature (°C)

    0 ~ +70

    Storage Temperature (°C)

    -40 ~ +85

    Dimension (mm)

    W430 x D250 x H44



    Ordering Information

    SDWDM



    Channel Spacing

    1=100GHz

    Application Type

    M=Mux

    D=Demux

    ITU channel

    C21=1560.61nm

    C23=1558.98nm

    Fiber diameter

    1=Bare Fiber

    2=900um Loose tube

    3=3mm Cable

    Fiber Length

    1=1Meter

    2=2Meter

    Connector

    0=None

    1=FC/APC
    2=FC/PC
    3=SC/APC
    4=SC/PC
    5=ST
    6=LC
