POE Switch

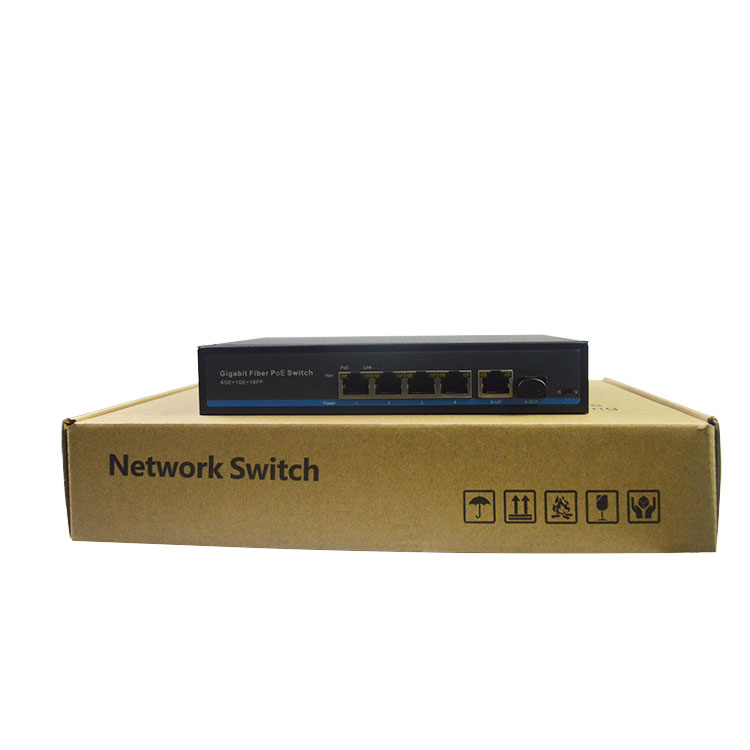

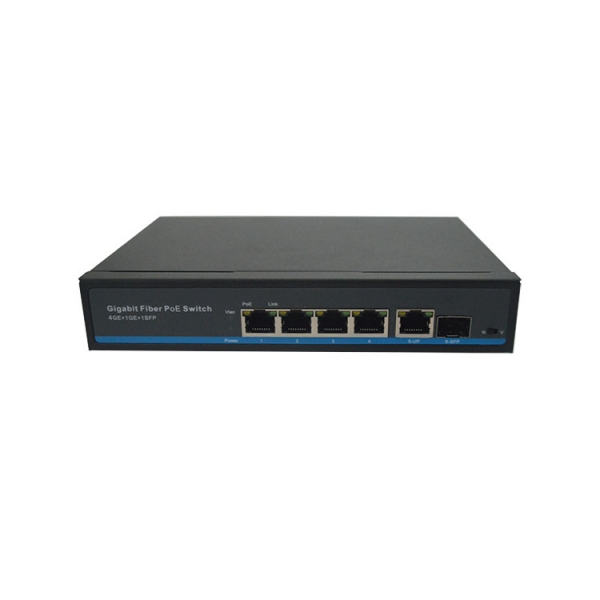

4GE 1GE 1GE 1SFP POE Swtich

1automatic  IEEE802.3af/at

2Dynamic power to ensure stable and reliable output power

3Anti collinear interference to solve the problem of grounding installation

4Queue up to effectively reduce current impact

5Reliable short circuit protection, safe and reliable

    1000M  POE Rj45

    4

    1000M  UPLINK

    1

    SFP port

    1

     Exchange Mechanism

    Store-and-forward

    Bandwidth

    2.0G

    MAC

    1K



    Environmental

    Working Temperature:-10℃~55℃

    Storage temperature :-40℃~70℃

    Working Humidity :10%~90% RH non-condensing

    Storage Humidity:5%~90% RH non-condensing

    POE

    IEEE802.3af/at,  Port PoE MAX 30W,

    System model

    Default standard/VLAN isolation/Super 250meters

    Power input

    AC 100-240V 50/60Hz 1.5A MAX120W





    Standards Protocols

    IEEE 802.3

    IEEE 802.3i 10BASE-T

    IEEE 802.3u 100BASE-TX

    IEEE 802.3af/at

    IEEE 802.3x

    IEEE 802.1q

    System model

    Default standard;VLAN isolation

    Speed

    Ethernet 10Mbps half-duplex, 20Mbps full-duplex

    Fast Ethernet 100Mbpshalf-duplex, 200Mbps full-duplex



    Network Media

    10Base-T: Pair 2 Category 3(Cat3) and above UTP/STP(≤250m)

    100Base-TX: Pair 2 Category 5(Cat5) and above UTP/STP(≤150m)

    Product specifications

    Product Size:210mm*150mm*30mm(L*W*H)

    package Size:300mm*175mm*100mm(L*W*H)

    Weight:1.2kg



      POE characteristics:

    1automatic  IEEE802.3af/at

    2Dynamic power to ensure stable and reliable output power

    3Anti collinear interference to solve the problem of grounding installation

    4Queue up to effectively reduce current impact

    5Reliable short circuit protection, safe and reliable

    6Overpressure undervoltage protection
