POE Switch

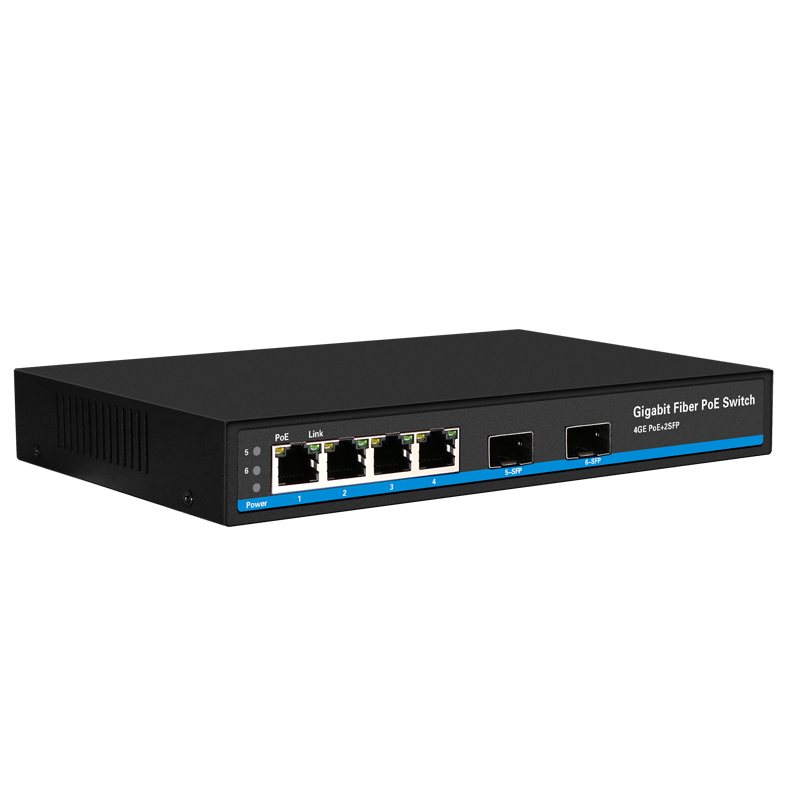

4CH Gigabit POE Ethernet switch POE 4 Port 10/100/1000Mbp With 2SFP Port

Smart PoE switch series , consistent with the IEEE 802.3af/at standard, single port PoE power of up to 30W. As a PoE power supply device,

it can automatically detect and identify the electrical equipment that meets the standard and supply it through the wire. Plug and play, the use of simple and convenient, suitable for hotels, campus, factory dormitory and small and medium-sized enterprises to form an economic and efficient PoE network.

    Model

    H1100P-4G-2S

    Product

    Full Gigabit 4+2 PoE Switch

    Fixed  Port

    4*10/100/1000Base-TX  PoE portData/Power

    2*1000M SFP

    PoE Ports

    1-4 port supports PoE optional first port outputs HiPoE_60W

    Network  Protocol

    IEEE 802.3

    IEEE 802.3i 10BASE-T

    IEEE 802.3u 100BASE-TX

    IEEE 802.3ab1000BASE-T

    IEEE 802.3x

    IEEE 802.3z 1000BASE-X

    IEEE 802.3af/at

    PoE Standard

    IEEE802.3af/at

    Port Specification

    10/100/1000BaseTXAuto

    Transmission Mode

    Store and Forward(full wirespeed)

    Bandwidth

    16Gbps

    Packet Forwarding

    14.44Mpps

    MAC Address

    2K

    Buffer

    2.5M

    Transmission Distance

    10BASE-T Cat3,4,5 UTP(≤250 meter)

    100BASE-TX Cat5 or later UTP(150 meter)

    1000BASE-TX Cat6 or later UTP(150 meter)

    1000BASE-SX:62.5μm/50μm MMF(2m~550m)

    1000BASE-LX:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m)

    Power Pin

    Default 1/2(+)3/6(-)Optional order 4/5(+)7/8(-)

    Single port power

    Average 15.4WMAX 30W

    Total power/Input voltage

    MAX 80W AC100-240V  50/60HZ

    Watt

    Standby Power Consumption≤8W

    LED Indicator

    Power: Power LED(optional over-power LED)

    5 6:(SFP LED)

    Port:(Orange=PoE LED+Green=Link LED)

    Power Input

    Built-in power AC100240V 50-60Hz 1A

    Operating Temperature/Humidity

    -10+55°C5%90% RH Non coagulation

    Storage Temperature/Humidity

    -40+75°C5%95% RH Non coagulation

    Product size/Packing

    sizeL*W*H

    210mm*150mm*35mm

    270*mm220mm*68mm

    N.W/G.Wkg

    0.7kg/1.1kg

    Installation

    Desktop(optional wall and machine hanger parts)

    Lightning protection level

    3KV 8/20us

    IP30

    Certificate

    CE mark, commercialCE/LVD EN60950
    FCC Part 15 Class BRoHS

    Warranty

    Whole device for 1 year(Accessories not included)
