POE Switch

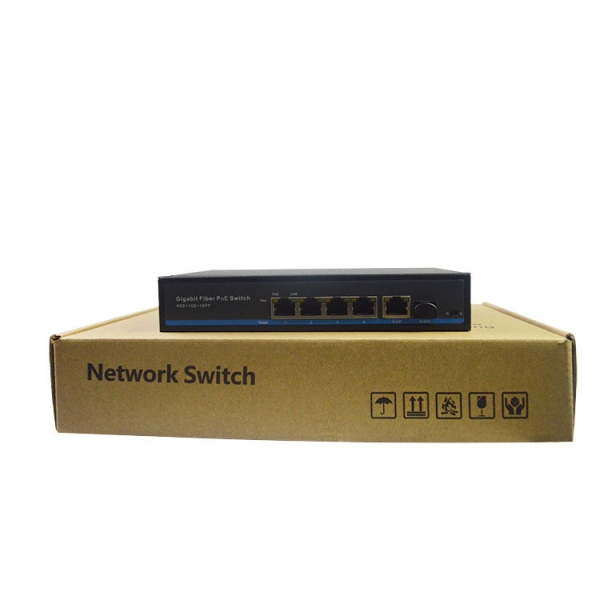

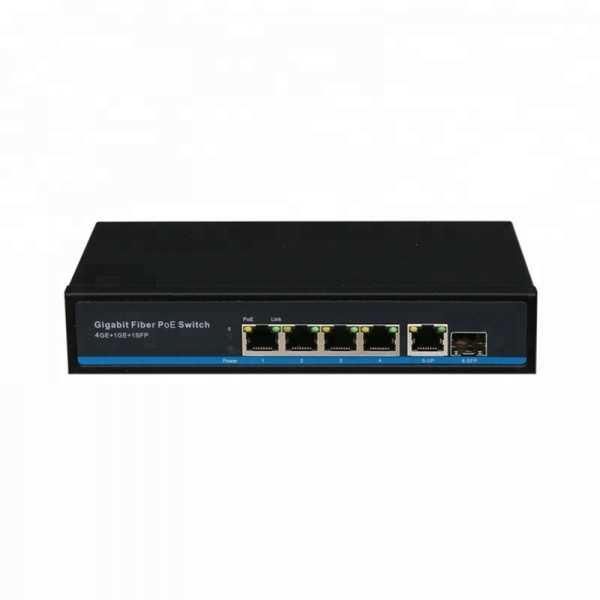

4CH Gigabit POE Ethernet switch POE 4 Port 10/100/1000Mbp With 1Uplink And 1SFP Port

Smart PoE switch series , consistent with the IEEE 802.3af/at standard, single port PoE power of up to 30W. As a PoE power supply device,

it can automatically detect and identify the electrical equipment that meets the standard and supply it through the wire. Plug and play, the use of simple and convenient, suitable for hotels, campus, factory dormitory and small and medium-sized enterprises to form an economic and efficient PoE network.

    Functional Feature



    Smart PoE switch series , consistent with the IEEE 802.3af/at standard, single port PoE power of up to 30W. As a PoE power supply device,

    it can automatically detect and identify the electrical equipment that meets the standard and supply it through the wire. Plug and play, the use of simple and convenient, suitable for hotels, campus, factory dormitory and small and medium-sized enterprises to form an economic and efficient PoE network.



    Physical features:



    Model

    H-4G-1TS

    1000M POE Rj45

    4

    1000M uplink

    1*FX+1*Rj45

    Exchange Mechanism

    Store-and-forward

    Bandwidth

    12G

    MAC

    1K

    Environmental

    Working Temperature:-10℃~55℃

    Storage temperature :-40℃~70℃

    Working Humidity :10%~90% RH non-condensing

    Storage Humidity:5%~90% RH non-condensing

    POE

    IEEE802.3af/at,  Port PoE MAX 30W,

    Power input

    AC 100-240V 50/60Hz

    Standards Protocols

    IEEE 802.3

    IEEE 802.3i 10BASE-T

    IEEE 802.3u 100BASE-TX

    IEEE 802.3ab 1000BASE-TX

    IEEE 802.3z 1000BASE-X

    IEEE 802.3af/at

    IEEE 802.3x

    Speed

    Ethernet 10Mbps half-duplex, 20Mbps full-duplex

    Fast Ethernet 100Mbpshalf-duplex, 200Mbps full-duplex

    Gigabit Ethernet 2000Mbps full-duplex

    Network Media

    10Base-T: Pair 2 Category 3(Cat3) and above UTP/STP(≤150m)

    100Base-TX: Pair 2 Category 5(Cat5) and above UTP/STP(≤150m)

    1000Base-TX: Pair 2 Category 6(Cat6) and above UTP/STP(≤150m)

    1000Base-SX:62.5μm/50μm MMF(2m~550m)

    1000Base-LX:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m)

    Product specifications

    Product Size:190mm*130mm*35mm(L*W*H)

    package Size:305mm*205mm*60mm(L*W*H)

    Weight:0.9kg
