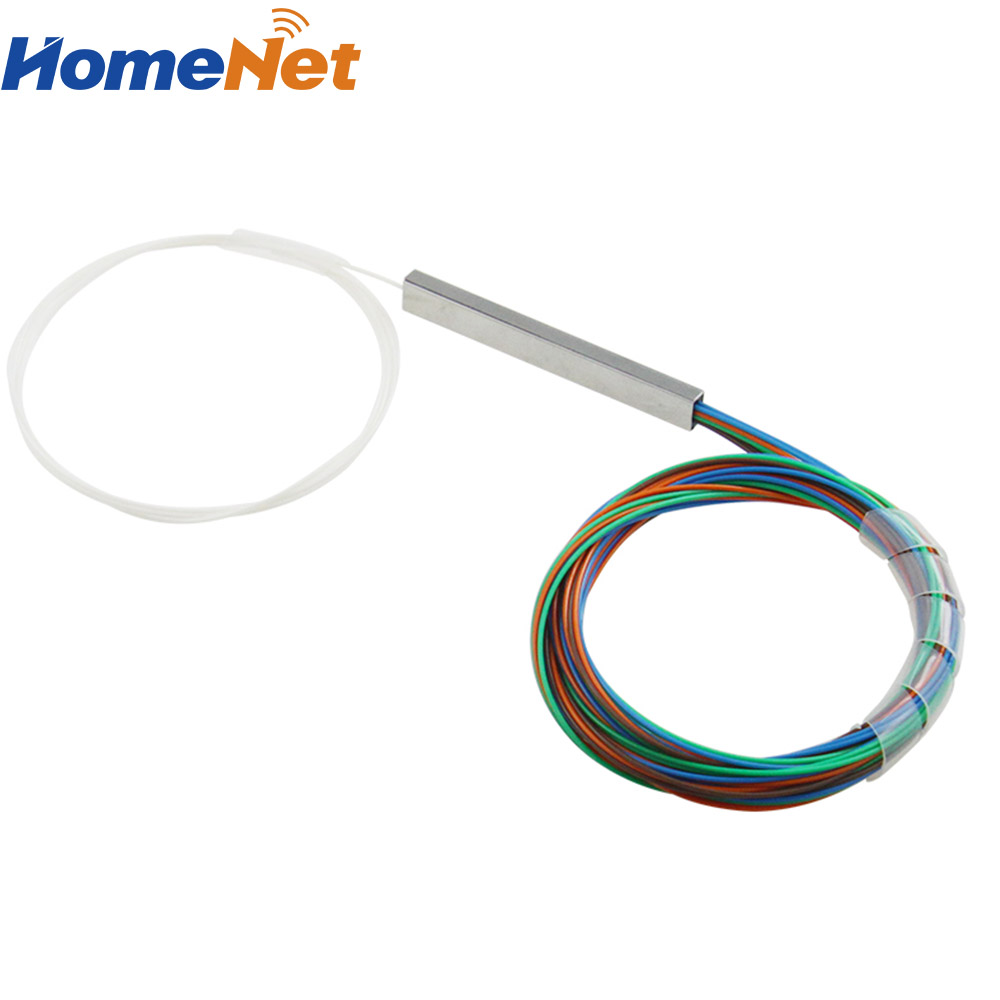

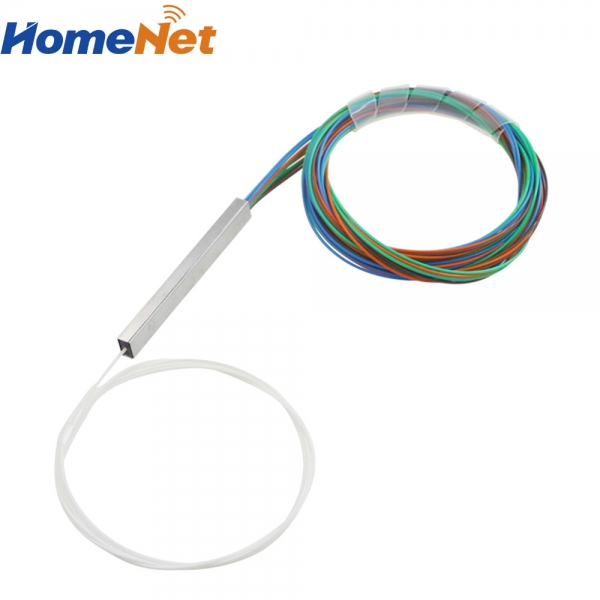

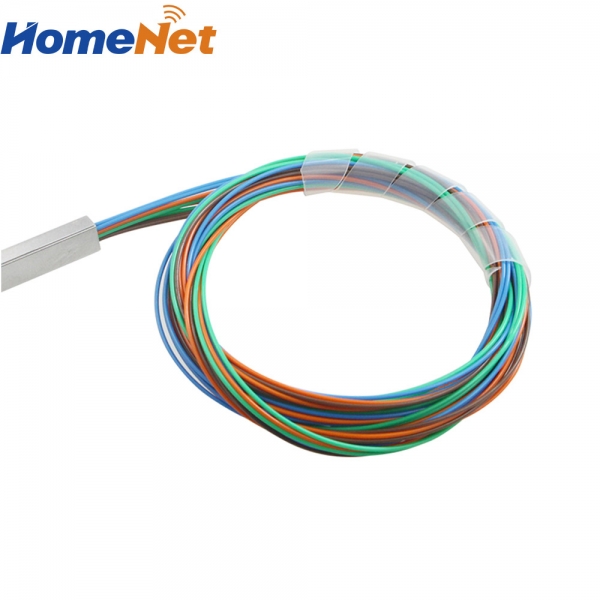

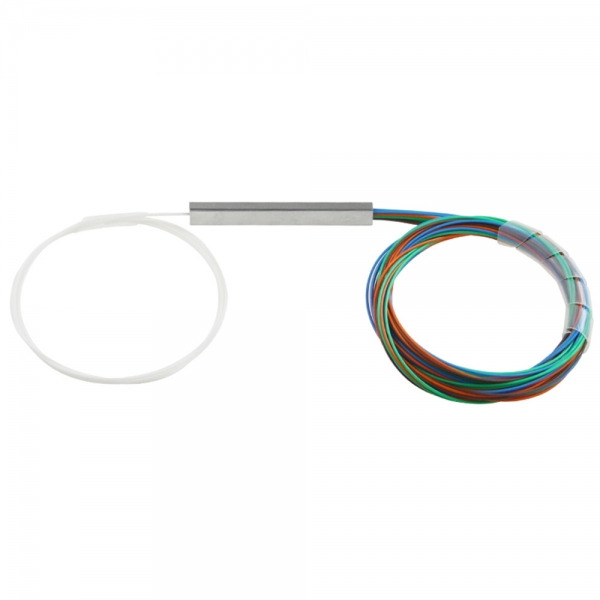

Without Connector 1 : 8 Mini steel tube PLC Opitc Splitter -Homenet Electronic Technology Co.,LTD

Products

homenet2007@hotmail.com

You are here：Home >> Products >> PLC Splitter

< >

Products application:

FTTx Systems

Digital, hybrid and AM-Video systems

LAN,WAN and Metro Networks

CATV systems

Other applictaions in fiber optic systems

PLC Splitter Feature

• Low Insertion loss

• Low PDL

• High Return Loss

• Uniform Power Splitting

• Compact Design

• Wide Operating Wavelength

• Wide Operating Temperature

• Excellent Environmental & Mechanical Stability

• Qualified Under Telcordia GR-1221 and GR-1209

PLC Splitter Specification

Parameter	Unit	Specification
Operation Wavelength	nm	1260~1650
Channel Number		1x2	1x4	1x8	1x16	1x32	1x64
Insertion Loss(Max.)	dB	4.2	7.3	10.5	13.5	17.2	21.5
Uniformity(Max.)	dB	0.5	0.8	1	1.4	1.6	2
Polarization Dependent Loss	dB	0.2	0.3	0.3	0.3	0.3	0.5
Return Loss	dB	≥50
Directivity	dB	≥50
