PLC Splitter

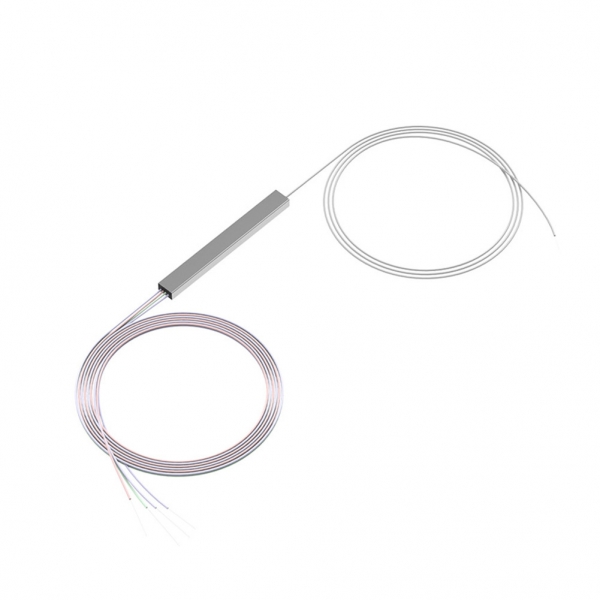

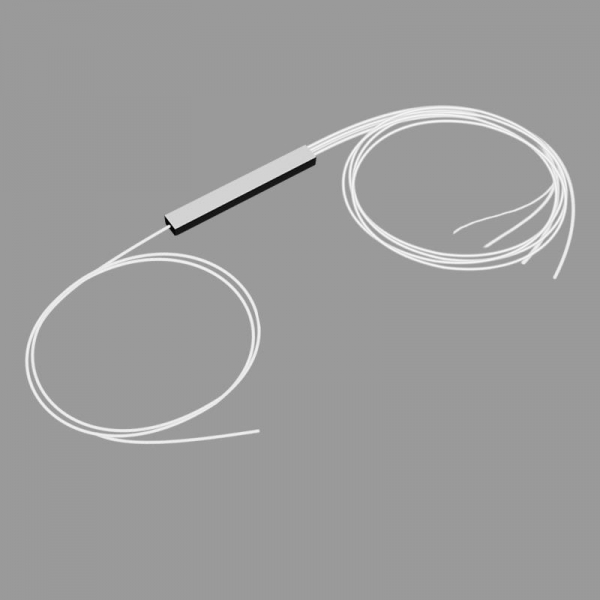

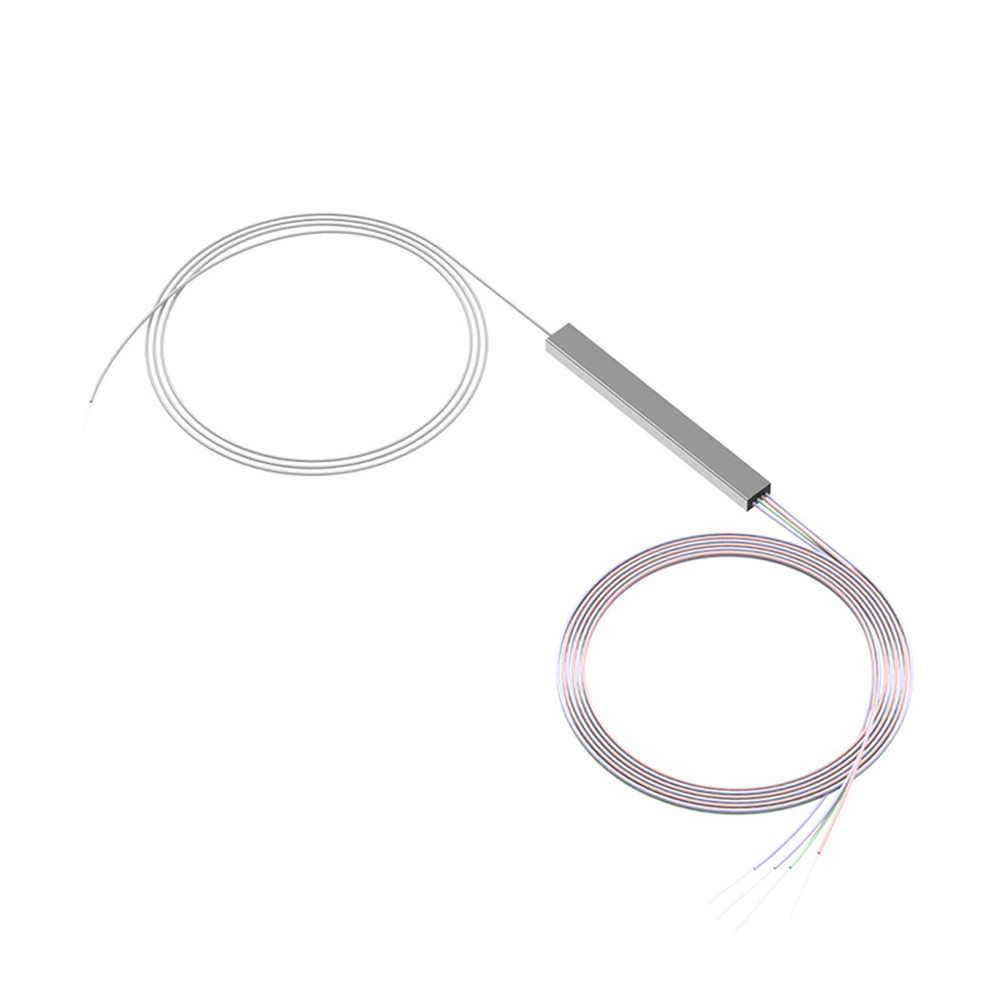

Without Connector 1 : 4 Mini steel tube PLC Opitc Splitter

Products application:
FTTx Systems
Digital, hybrid and AM-Video systems
LAN,WAN and Metro Networks
CATV systems
Other applictaions in fiber optic systems
    PLC Splitter Feature
    • Low Insertion loss
    • Low PDL
    • High Return Loss
    • Uniform Power Splitting
    • Compact Design
    • Wide Operating Wavelength
    • Wide Operating Temperature
    • Excellent Environmental & Mechanical Stability
    • Qualified Under Telcordia GR-1221 and GR-1209

    PLC Splitter Specification
    Parameter
    Unit
                                                                               Specification
    Operation Wavelength
    nm
                                                                                1260~1650
    Channel Number

    1x2
    1x4
    1x8
    1x16
    1x32
    1x64
    Insertion Loss(Max.)
    dB
    4.2
    7.3
    10.5
    13.5
    17.2
    21.5
    Uniformity(Max.)
    dB
    0.5
    0.8
    1
    1.4
    1.6
    2
    Polarization Dependent Loss
    dB
    0.2
    0.3
    0.3
    0.3
    0.3
    0.5
    Return Loss
    dB
                                                                        ≥50
    Directivity
    dB
                                                                        ≥50
