PLC Splitter

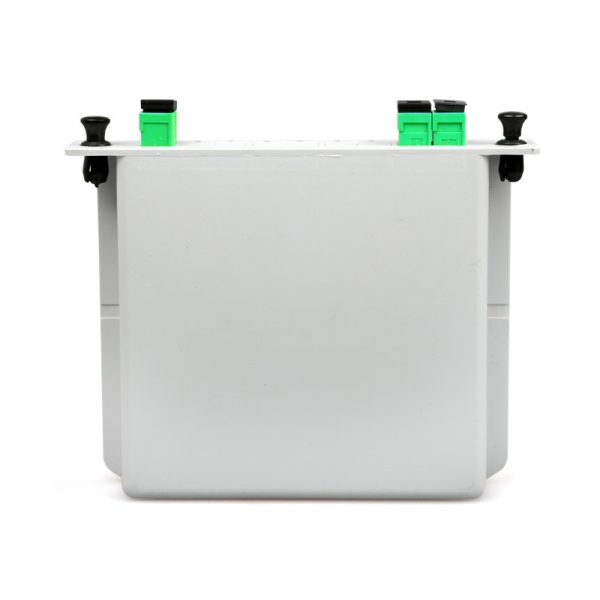

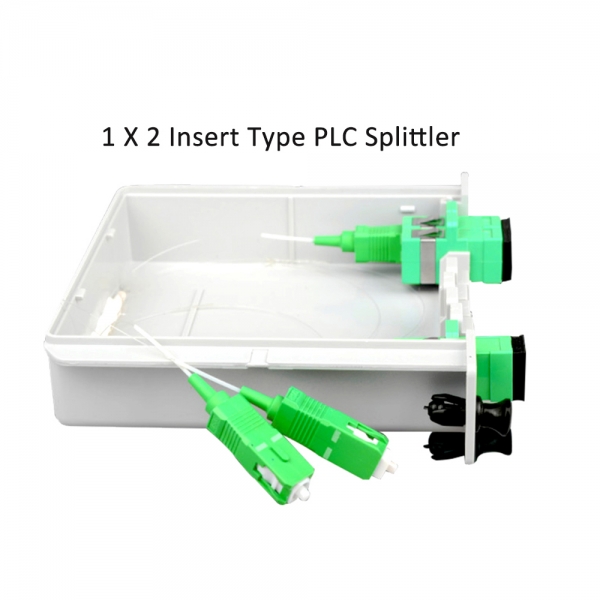

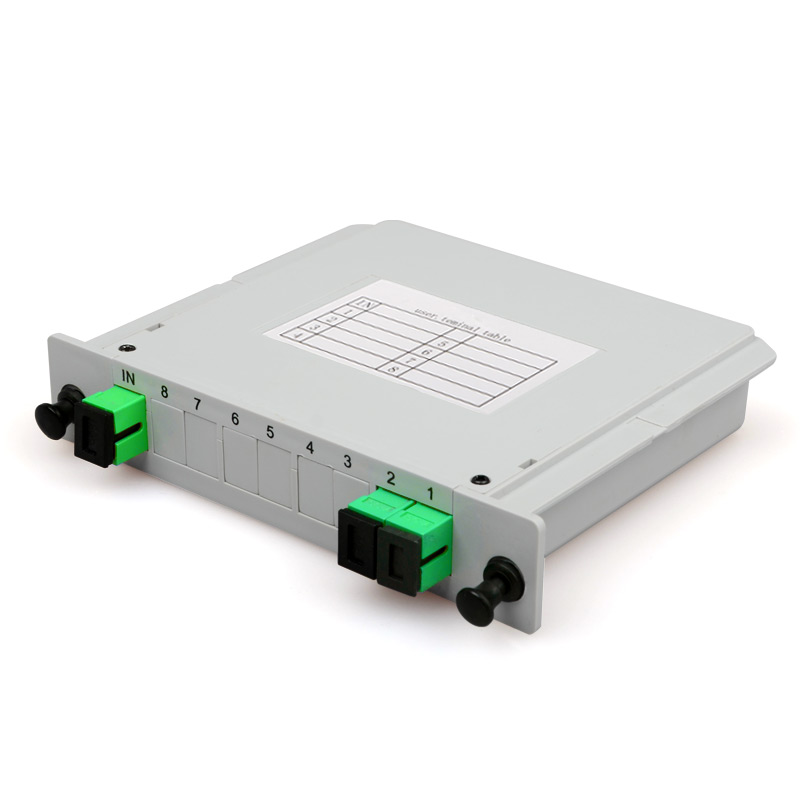

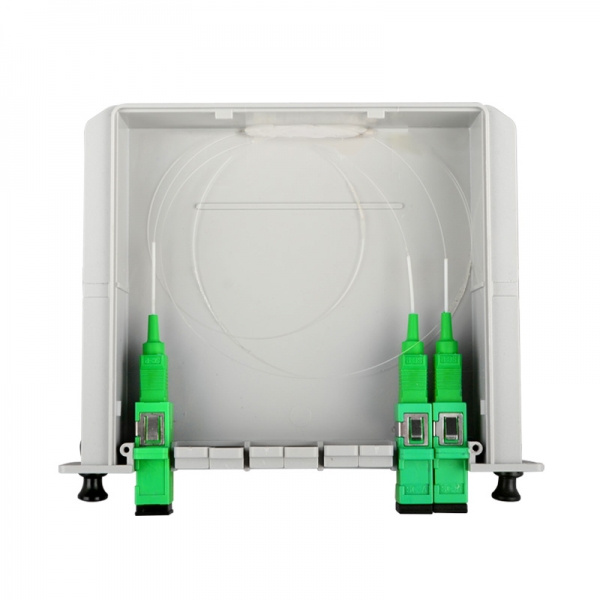

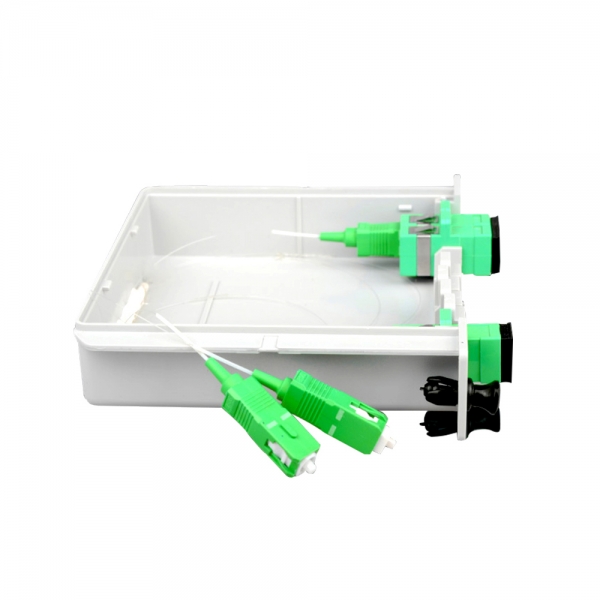

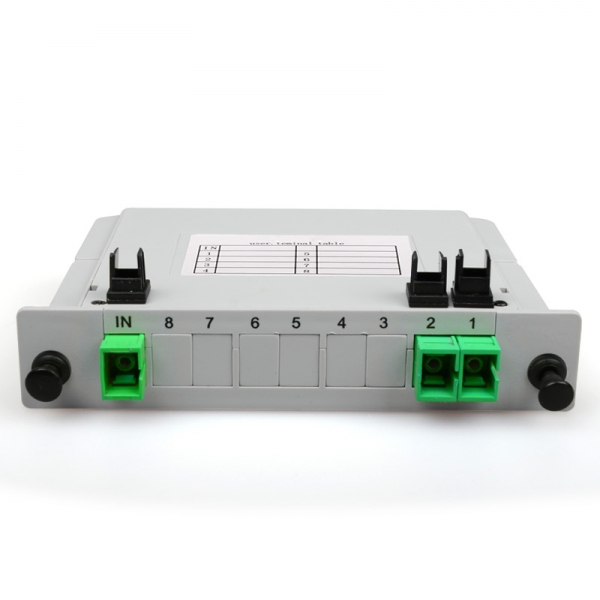

1x2 SC/APC LGX Box Cassette Card Inserting PLC splitter

Feature
Low polarization dependent loss
Excellent mechanicai
Good uniformity and low insertion loss
Various Coupling Ratio
Environment stable
Single mode and multi mode available
Applications
• Fiber optic equipment & systems
• CATV networks
• Data communications
• Passive Optical Networks

    Features:

    1. Low Insertion loss

    2. Low PDL

    3. Compact Design

    4.Good channel-to-channel uniformity

    5. Wide Operating Wavelength

    6. Wide Operating Temperature

    7. High Reliability and Stability


    Main parameters

    unit

    Performance

    Port structure

    1×2

    1×4

    1×8

    1×8L

    1×16

    1×32

    1×64

    1×128

    L × W × H

    mm

    60×7×4

    120×80×18

    141×115×18

    Working wavelength

    nm

    1260~1650

    Insertion loss

    dB

    ≤4.1

    ≤7.4

    ≤10.5

    ≤13.5

    ≤16.8

    ≤20.6

    ≤23.7

    Uniformity

    dB

    ≤0.5

    ≤0.6

    ≤0.8

    ≤1.0

    ≤1.3

    ≤1.8

    ≤2.0

    Polarization dependent loss

    dB

    ≤0.2

    ≤0.2

    ≤0.3

    ≤0.3

    ≤0.3

    ≤0.4

    ≤0.4

    Return loss

    dB

    ≥55

    Directionality

    dB

    ≥55

    Operating temperature

    -40~85°C

    Application:

    1. FTTX Systems

    2. PON Networks

    3. CATV Links

    4. Optical Signal Distribution
