Place of Origin: Guangdong, China

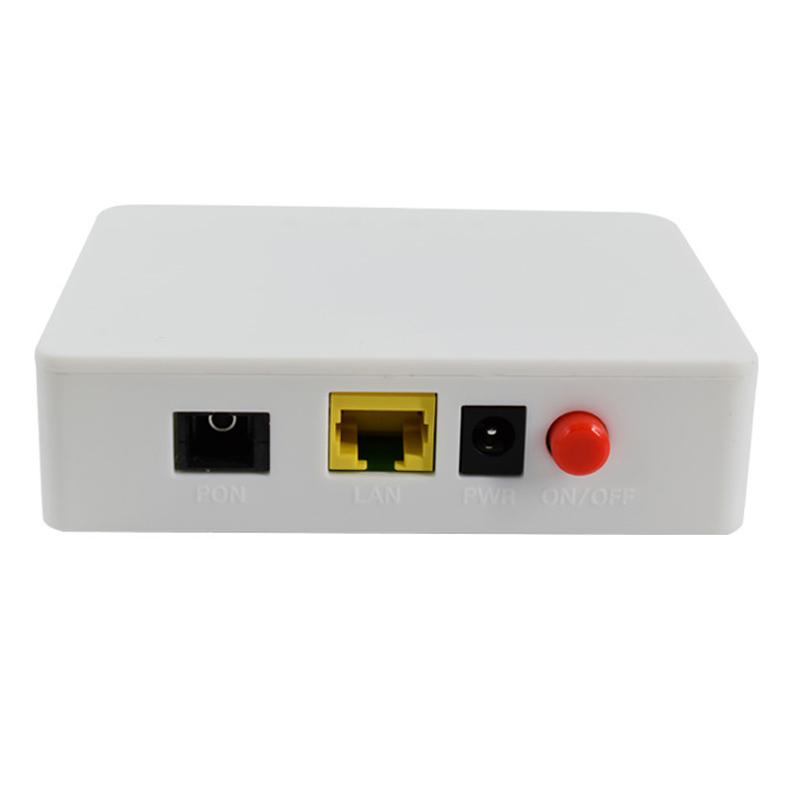

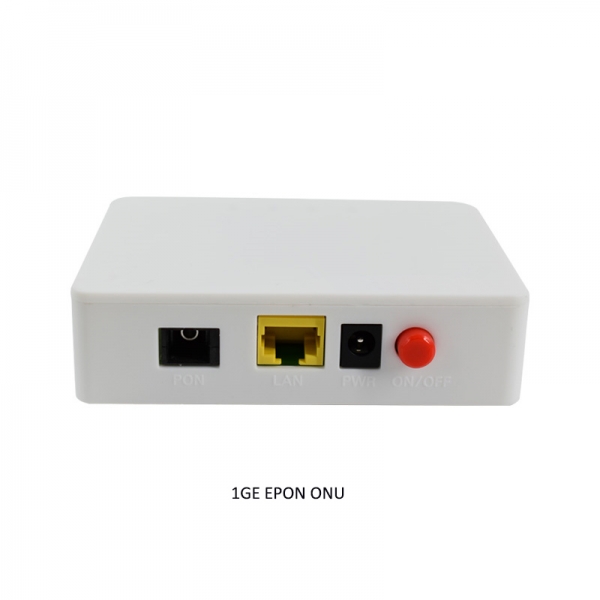

EPON ONU is mainly designed for FTTH,FTTO application. EPON ONU support 1000Base-PX20+ standard with 1:64 maximum optical splitting ratio and 20km distance, and provide 1uplink GE PON port.
ONU together with OLT could realize flexible network structure and maintenance and provide total FTTx solutions.
ONU has 1 PON port and one 10/100BASE-T ports.
ONU has 1 PON port and one 10/100/1000BASE-T ports
Functional Feature
n Support port-based rate limitation and bandwidth control;
n In compliant with IEEE802.3ah Standard
n Up to 20KM transmission Distance
n Support data encryption, group broadcasting, port Vlan separation, etc.
n Support Dynamic Bandwidth Allocation (DBA)
n Support ONU auto-discovery/Link detection/remote upgrade of software;
n Support VLAN division and user separation to avoid broadcast storm;
n Support power-off alarm function ,easy for link problem detection
n Support broadcasting storm resistance function
n Support ACL and SNMP to configure data packet filter flexibly
n Specialized design for system breakdown prevention to maintain stable system
n Support software online upgrading EMS network management based on SNMP ,convenient for maintenance
Specification
|
Item |
Parameter |
|
|
Interface |
PON Interface |
1 EPON optical interface Meet 1000BASE-PX20+ standard Symmetric1.25Gbpsupstream/downstream split ratio:1:64 Transmission distance 20KM |
|
User Ethernet |
1*10/100M auto-negotiation 1*10/100/1000M auto-negotiation |
|
|
Power Interface |
12V DC Power supply |
|
|
Performance Parameters |
PON Optical Parameter |
Wavelength: Tx 1310nm, Rx1490nm Tx Optical Power: -1~4dBm Rx Sensitivity: -27dBm Saturation Optical Power: -3dBm Connector Type: SC Optical Fiber: 9/125 single-mode fiber |
|
Data Transmission |
PON Throughput: Downstream 950Mbps; Upstream 930Mbps Packet Loss Ratio:<1*10E-12 |
|
|
Business |
Layer 2 wire speed switching Support VLAN TAG/UNTAG,VLAN conversion Support Port-based speed limitation Support Priority classification Support storm control of broadcast |
|
|
Network Management |
Management Mode |
Support IEEE802.3 QAM, ONU can be remotely managed by OLT Support Remote management through SNMP and Telnet Local management |
|
Management |
Status monitor, Configuration management, Alarm management, |
|
|
Indicator |
LED Indicator |
PWR: Power up or down SYS: System instructions OPTIN: Optical Link Status LINK:ONU Registered LAN: Link Status of Ethernet Interface |
|
Physical Features |
Shell |
Plastic casing |
|
Power |
External 12V 0.5A AC/DC power supply adapter Power consumption: <2W(),<2.3W(PL311HC) |
|
|
Physical |
Item Dimension:110mm(L) x 70mm(W) x 30mm (H) Item weight:0.1kg |
|
|
Environmental |
Operating temperature: 0 to 50 ºC Storage temperature: -40 to 85 ºC Operating humidity: 10% to 90% (Non-condensing) Storage humidity: 10% to 90% (Non-condensing) |
|
