Items

Unit

Specifications

PON standard.

GPON ITU-T G.984.x

PON interface

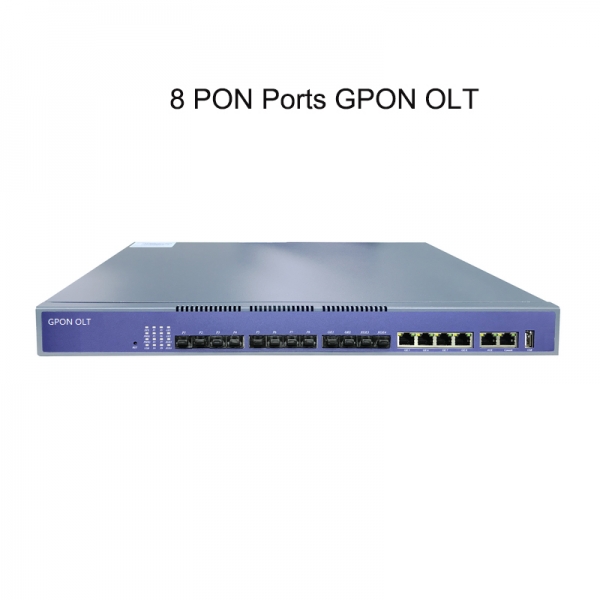

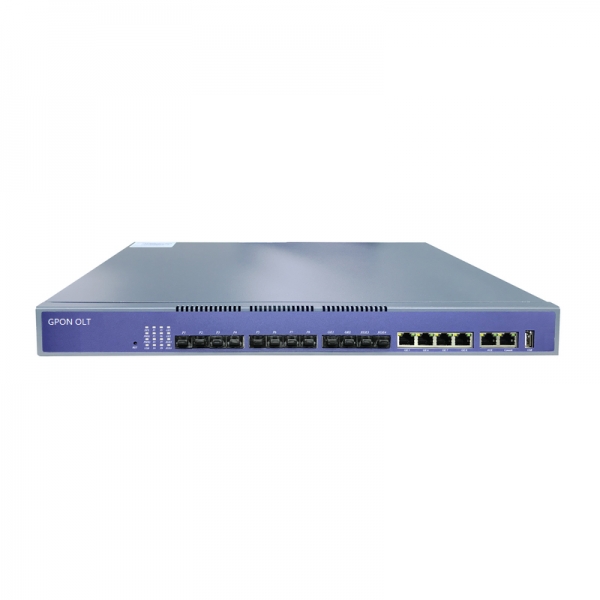

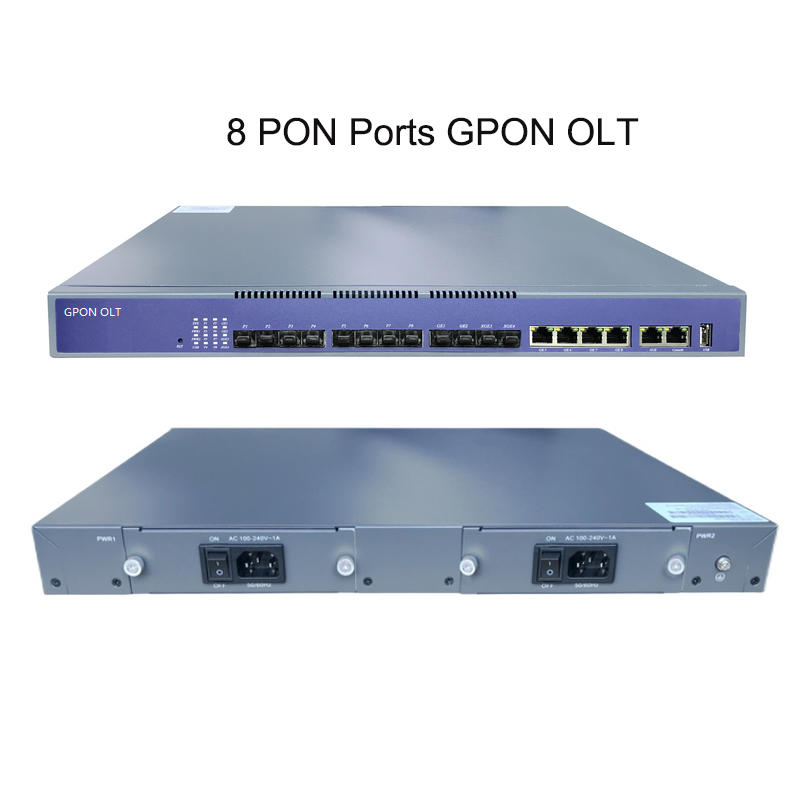

8*GPON SFP Ports (Class C+),  Receiving sensitivity: ≤-30dBm(Saturation Optical -12dBm). Power,Transmitting optical power: +3～+7dBmTransmission distance: 20KM. Max splitting ratio1:128

Speed

Downstream 2.488G

Upstream1.244G

Wavelength

nm

Tx1310, Rx 1490

Uplink

GE

4*copper Ethernet ports 10/100/1000M auto-negotiation

SFP GE

2*SFP(GE)

SFP 10GE

2* SFP+ (10GE)

Layer 3

Support static route, ARP proxy, hardware Host Routes, hardware Subnet Routes

Management Ports

1*10/100BASE-T out-band port, 1*CONSOLE port

Management Mode

SNMP、Telnet、CLI、WEB、SSH v1/v2

Backplane

Gbps

128

MAC table

K

16

Operating condition

℃

Operating temp: -5 ~ +55

Storing condition

℃

Storing temp: -40 ~ +85

Humidity

%

5~90(non-condensing)

Power consumption

W

≤45

Dimension

mm

442mm×320mm×44mm（L×W×H）

Net weight

Kg

4.9Kg (two power supply)
