Distribution Box

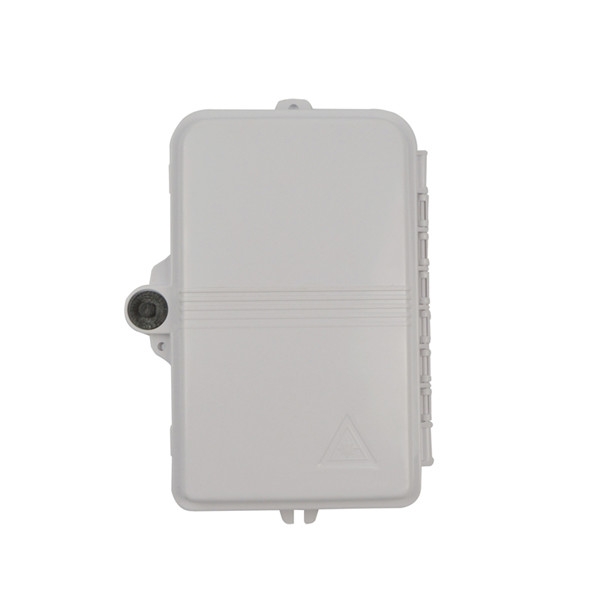

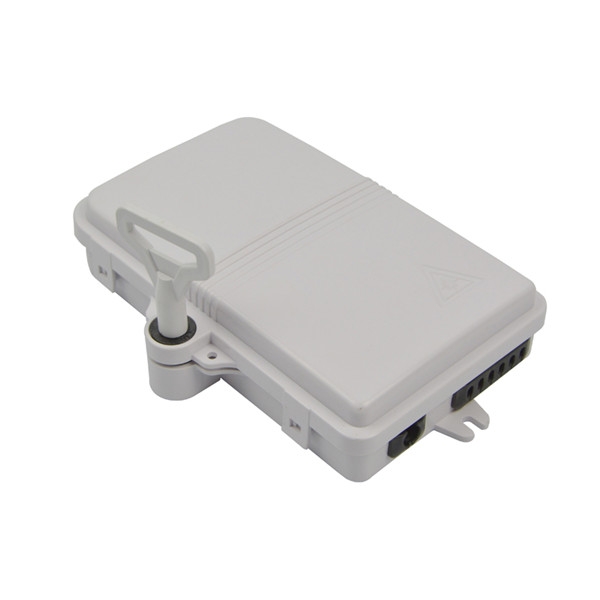

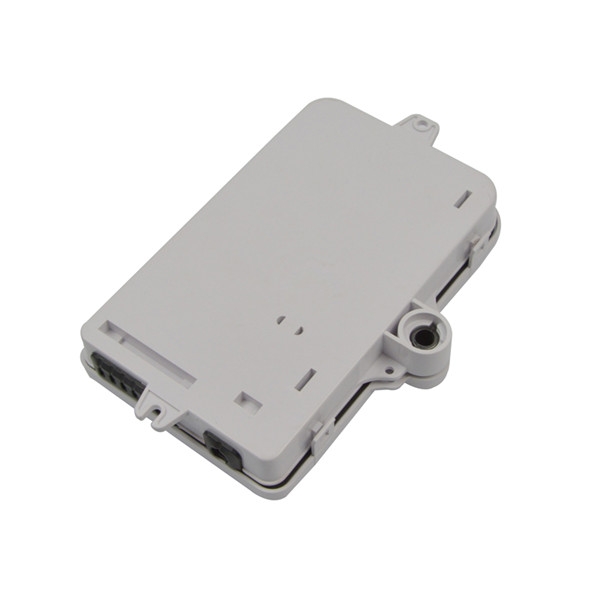

6 Core Fiber Access Terminal Box

Features:
1. PC material used ensures the body strong and light.
2. Protection Level: IP65.
3. Water-proof design for outdoor uses, lock provided for extra security.resistance and dustproof,flame-retardant.

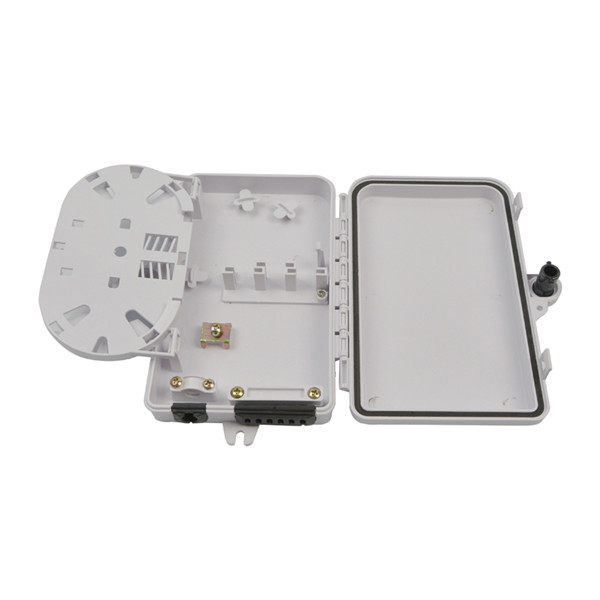

4. Space saving! Double-layer design for easier installation and maintenances
5. Dimensions: 186X116X41mm (W x H x D)
6. Adapter Capacity: 6 SC/FC simplex adapters or LC duplex adapters
7. Cable Entrance: 2
8. Cable Exit: 6 simplex drop cables (Pre-connectorized cables supported)



    Description FTTH 4Cores Splitter box fiber optical terminal box
    Dimensions (WxDxH) 186X116X41mm
    Splice Capacity  4,6Cores
    Working temperature -40ºC~+85ºC
    Color  White,Blue,Gray,Black
    Main Body Material Plastic: ABS+PC
    Installation Type Wall /Pole Type Outdoor











    6 Core Fiber Access Terminal Box PLC Splitter  Waterproof Ftth Box Fiber Optic Distribution Box6 Core Fiber Access Terminal Box PLC Splitter  Waterproof Ftth Box Fiber Optic Distribution Box6 Core Fiber Access Terminal Box PLC Splitter  Waterproof Ftth Box Fiber Optic Distribution Box
