Distribution Box

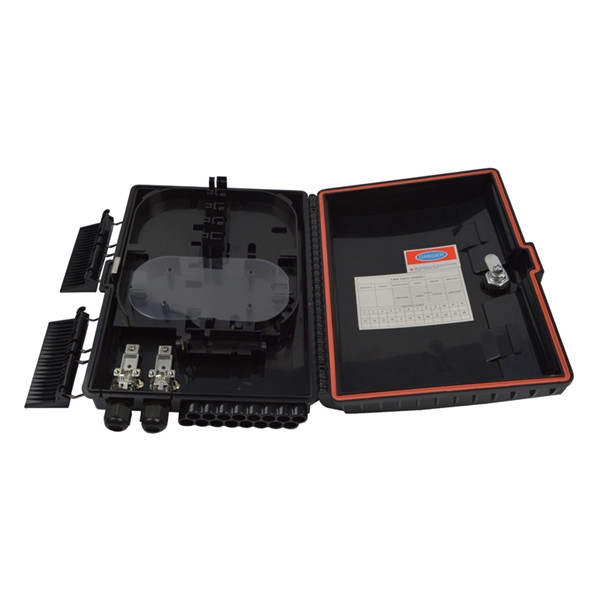

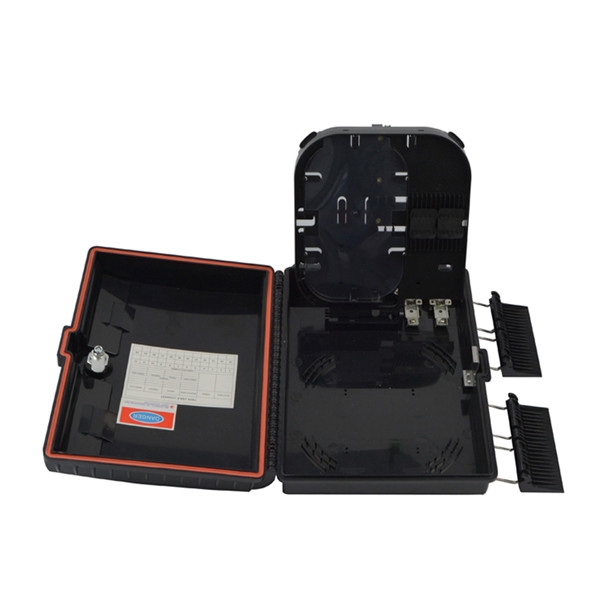

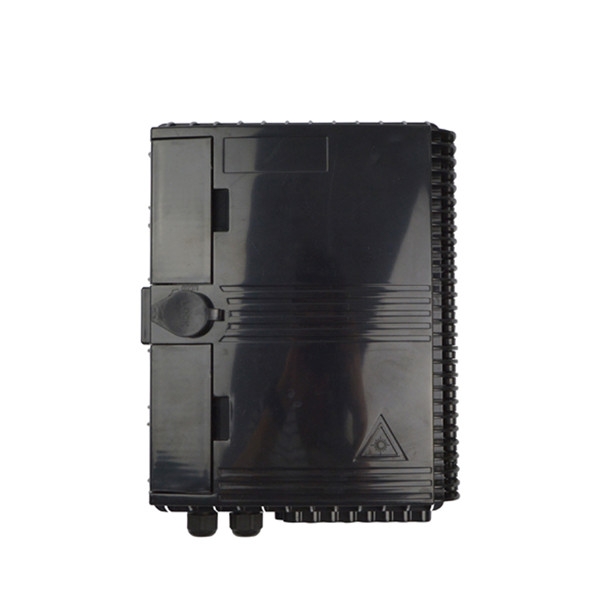

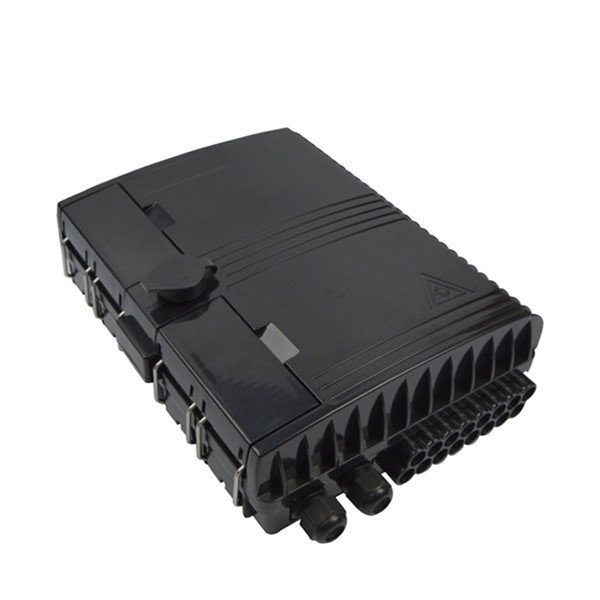

16 Core Fiber Optic Terminal

Product size: 320*240*100 1. PC/ABS alloy material has a service life of more than 20 years. 2: Design of Double-Layer Structure FTTH indoor wall-mounted optical splitter box is used to connect optical cables with optical communication equipment. Through the adapter in the cabinet, the optical signal is drawn by the optical fiber jumper to realize the optical distribution function. It is suitable for the protective connection of optical cable and distribution tail fiber, and also for the optical fiber terminal point in the optical fiber access network. It is suitable for FTTH engineering optical cable to be used after arriving at the building and installed in the corridor, basement, computer room and external wall of the building. Optical cables can also be opened and coiled by the splitting cabinet and fused with the in-door optical cables to achieve the direct function of optical cables to meet the needs of traditional transmission network engineering. 3. Working environment temperature: - 40-60 C; ambient humidity: <95%(40 C); atmospheric pressure: 70kPa-106 kPa; opening angle of box door: > 180 degree 3-7; optical cable entry number: 1X2 (downward cable) 3-5; leather fiber entry number: 8X2 (downward fiber) 3-6; adapter: SC/PC (upper connection is green, downward connection is blue) 3-8; voltage withstanding level of grounding row: > 3000V (DC) / 10mA/1min 3-9 Insulation Resistance: > 2*104M/500V3-10

    Physical features:



    1) User familiar industry interface, using high impact plastic PC/ABS



    2) Can accommodate 1x8 PLC splitter and 1x16 PLC splitter



    3) The high strength plastic, anti-ultraviolet radiation and ultraviolet radiation resistant, resistant to rain



    4) Up to 16 FTTH drops ,2 inlet ports, 16 outlet ports

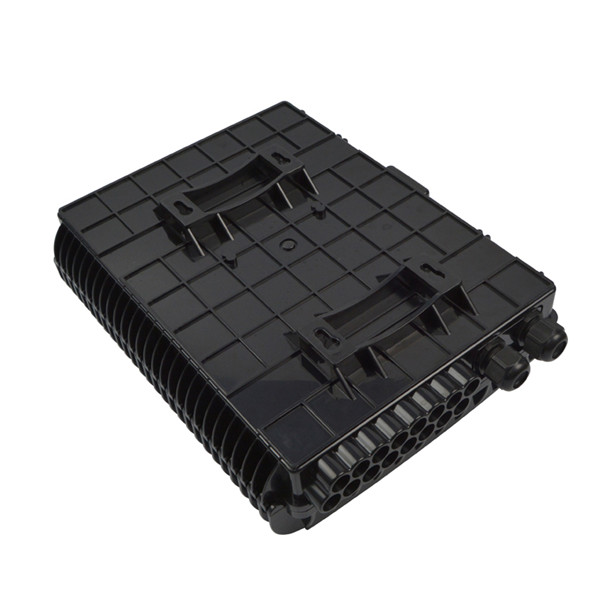

    5) Wall and pole mountable



    Specifications :



    Model No

    FTTH 16B

    Dimension( L×W×H )

    310mm×240mm×110mm

     Weight(gross)

     1.68kg

    Function

    cable terminal,passive splitter

    Adaptor type

    SC /LC

    Material

    ABS PC

    Max ratio

    2:16

    Max capacity(F)

    16 Core



    Environment

    1. Tempreture:  -40°C—60°C

    2. Ambient Humidity : 95% above 40°C

    3. Air pressure: 62kPa—105kPa

    Accessories:

    1. 2 hoops (outdoor air frame) Optional

    2.wall mount kit 1 set

    3.two lock keys used waterproof lock



    High quality 16 Core Fiber Optic Terminal Box 16 port FTTX Fiber Optic Distribution Box
