Distribution Box

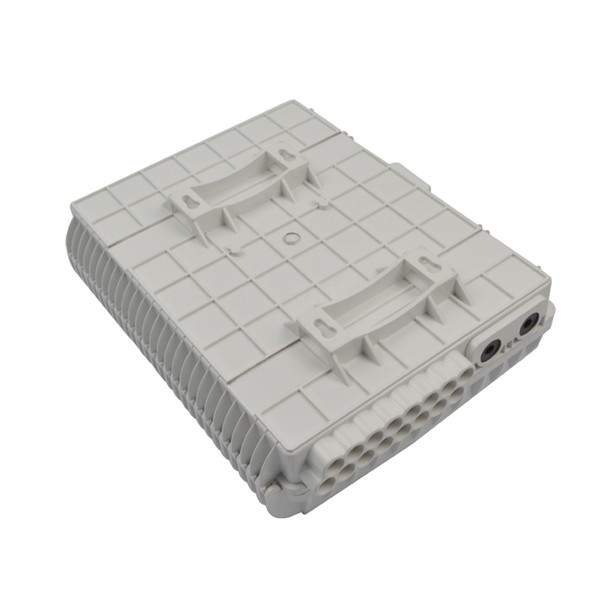

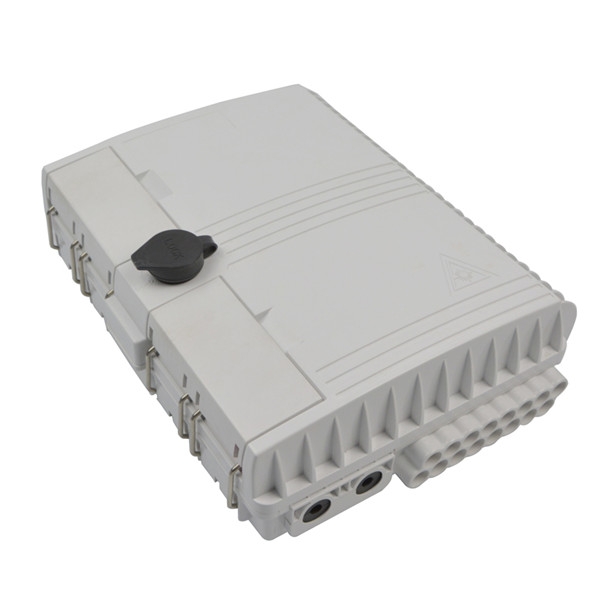

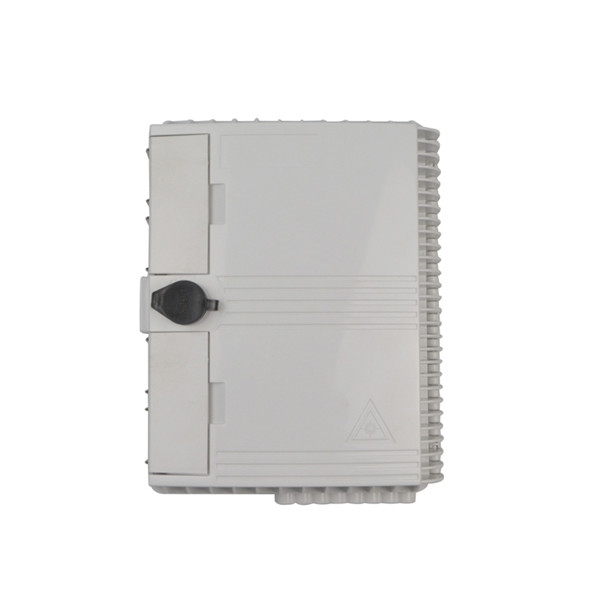

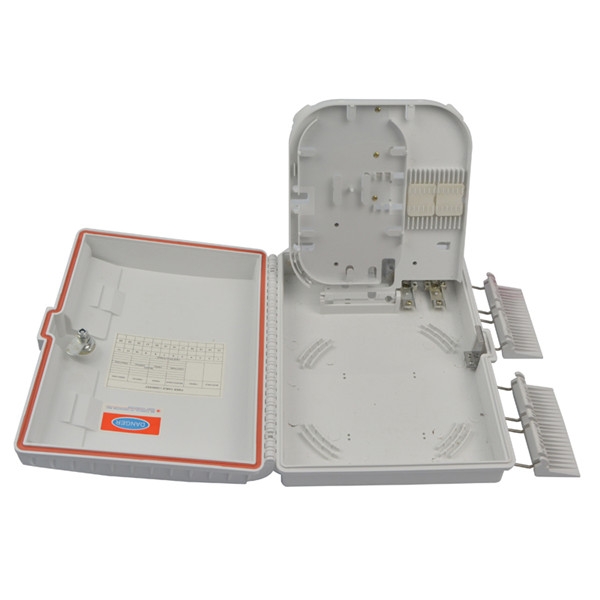

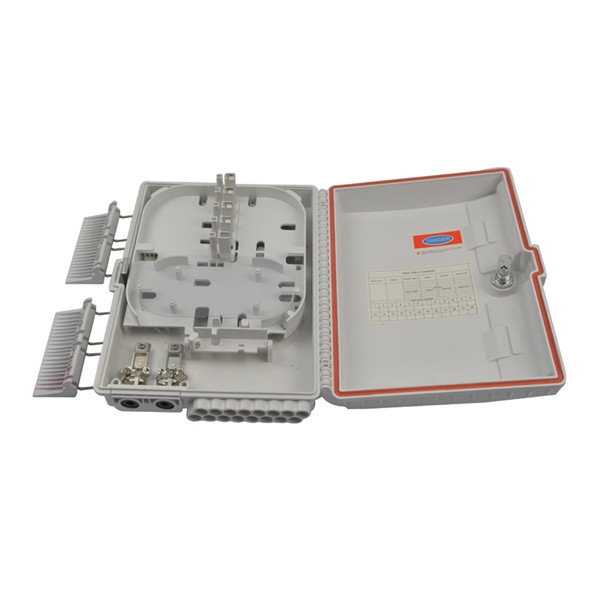

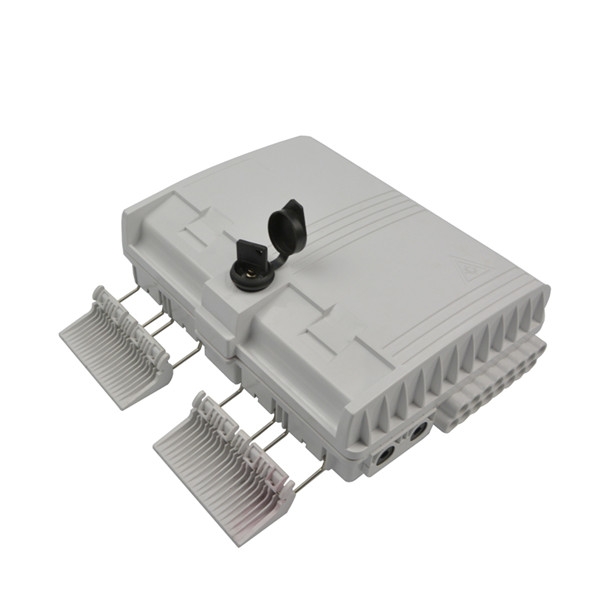

16 Core Fiber Optic Termination

1) User familiar industry interface, using high impact plastic PC/ABS
2) Can accommodate 1x8 PLC splitter and 1x16 PLC splitter
3) The high strength plastic, anti-ultraviolet radiation and ultraviolet radiation resistant, resistant to rain
4) Up to 16 FTTH drops ,2 inlet ports, 16 outlet ports
5) Wall and pole mountable

    Physical features:


    Description FTTH 16Cores Splitter box fiber optical terminal box
    Dimensions (WxDxH) 245*195*55mm
    Splice Capacity  4,8Cores
    Weight 1.2KG
    Color  White,Blue,Gray,Black
    Main Body Material Plastic: ABS+PC
    Installation Type Wall /Pole Type Outdoor




    White 16 Core Fiber Optic Termination Box 2X16 Core FTTX Fiber Optic Distribution Splitter Box
