Distribution Box

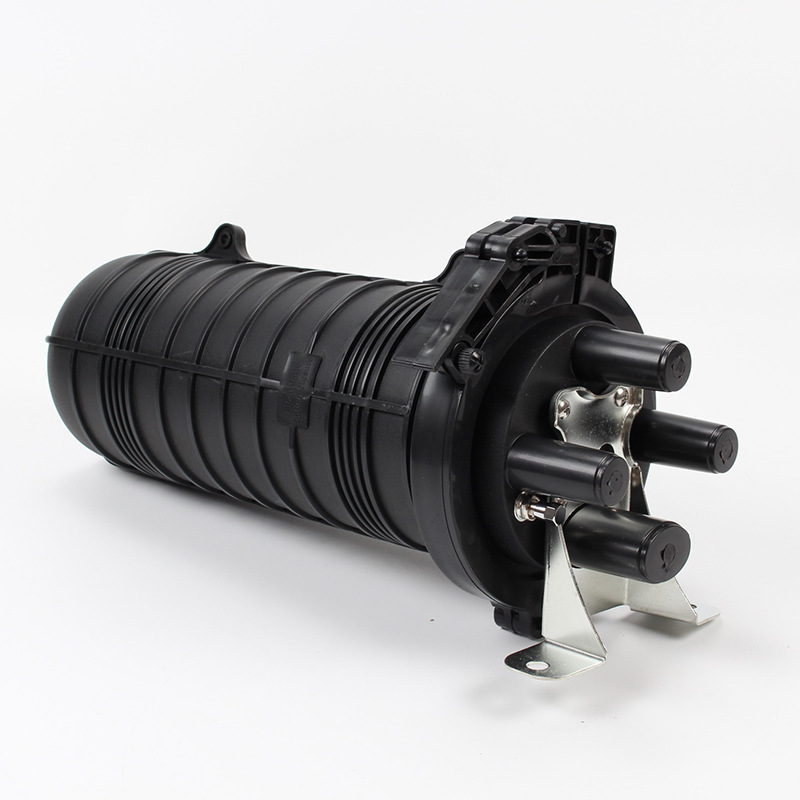

12core 24 core 48core 96 core Waterproof Vertical Fiber Optic Splice Closure

Features
 1.  Provide from“2 in 2 out”to“4 in 4 out”
 2.  Available for the diameter of cable isφ7-φ23mm
 3. Sealed by 2 types: Screw mechanical splicing or Hot melt sealing
 4. Can be used in aerial, duct, pole mounted and direct buried application
 5. Available for 12 cores, 24 cores, 48 cores and the max capacity can reach 288 cores
 6. Support the PLC Splitter installation, ax ratio 2:32 or 2:16, the max quantity of SC adapter is 36 pcs
 7. The case body is made from imported high-intensity engineering plastics and formed the shape with mould plastics

    Description:


    The Splice closure is an indispensable equipment used in Fiber Communication System ,play the roles in sealing, protection, installation of fiber connector head and storage . It is applicale well in cable splicing and differences in follow through,the system a,with the protection function on fiber optic connect head.

    Features:

    Advanced internal structure design, thus fiber suffering no attenuation
    The closure is spacious enough for winding and storing fibers

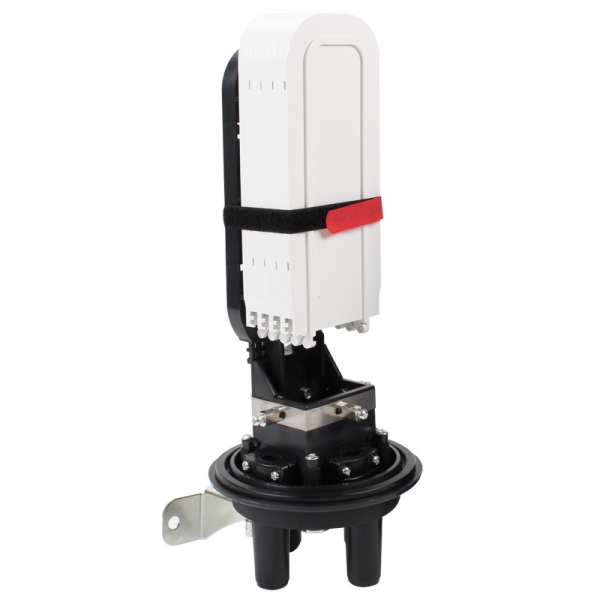

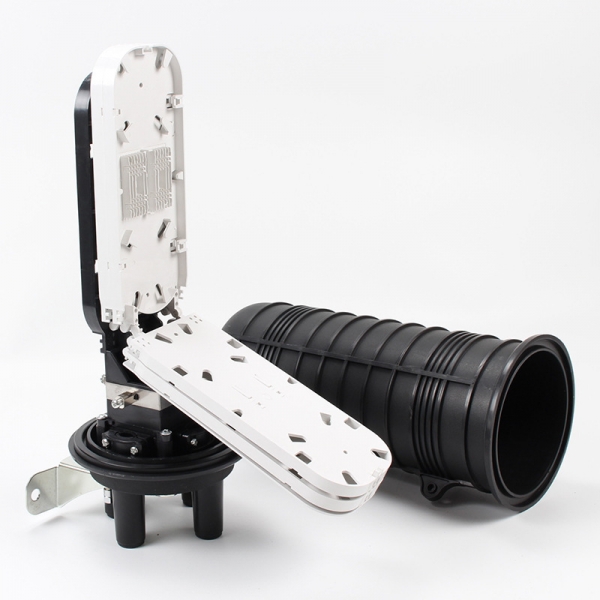

    Flip style fiber splice trays are designed
    The curved radius meets with international standard
    Easy and fast to increase and reduce splice tray
    Innovative elastic integrated seal fitting
    Adopting PC material for plastic parts and excellent steel for the external fasteners and structural parts.
    With the function of reuse and capacity expansion for many times
    With the function of electric connection and disconnection for electrical for the fiber optic cables.

    Main Specifications

    Working temperature: –40℃ to +60 ℃
    Atmospheric pressure: 70~106Kpa
    Normal temperature sealing performance: 72h, internal air pressure 70Kpa, without decrease.
    High temperature sealing performance: 60 ℃168h, internal air pressure 70Kpa, without decrease.
    Tensile strength: 1000N
    Compressive strength: 2000N/10cm2 within 1 min
    Insulation resistance: more than 10MΩ between metal parts or between metal parts and the ground
    Dielectric strength: 15KV DC, 2min, without spark over and flying arc

    Application

    It can be used in straight-through and branching application.
    It can be used in aerial, underground, direct buried, wall-mounting, hand hole and duct mounting application.
    It can be mounted on a pole, wall or strand.
