Patch Cords

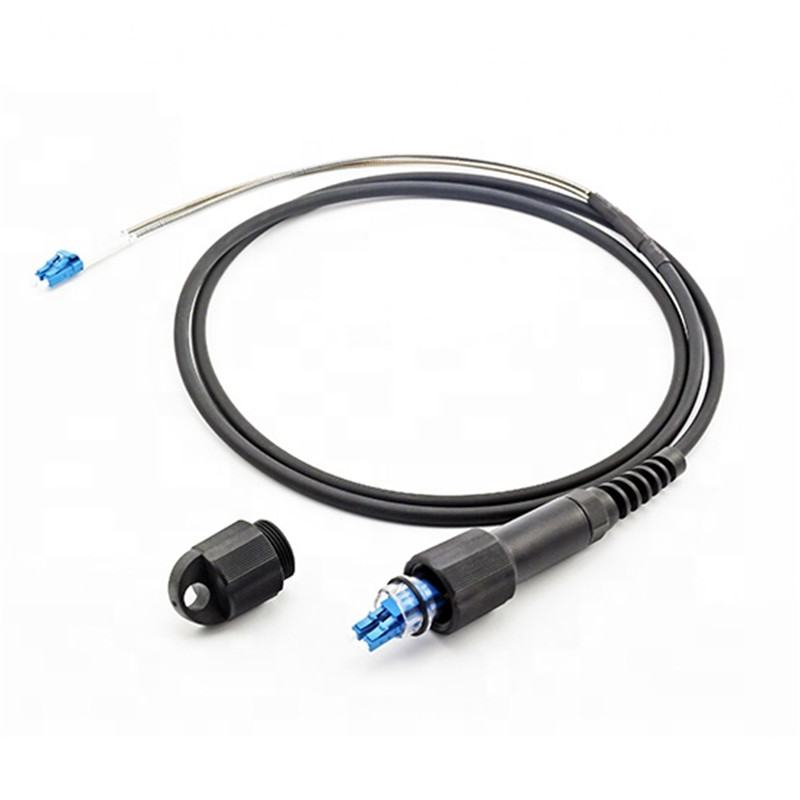

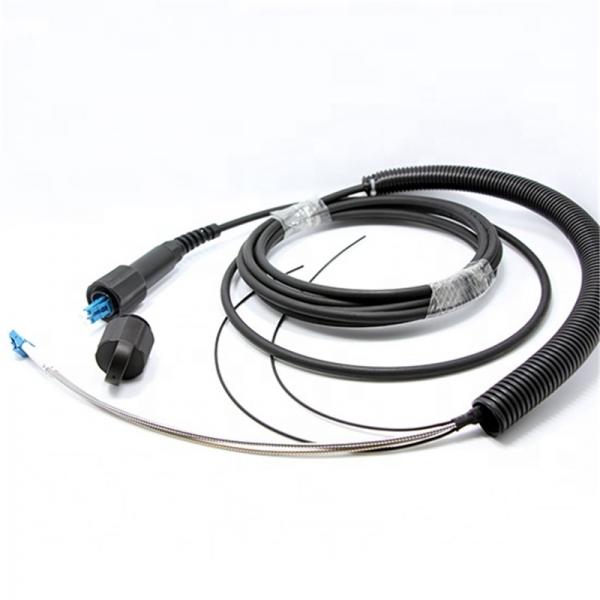

Outdoor PDLC IP67 PDLC to DLC ST FC single mode armored OS2 sfp Fiber Optic CPRI cable patch cord

Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Homenet
Model Number:
CPRI cable patch cord
Product name:
CPRI cable patch cord
Name:
CPRI cable patch cord
lenth:
50 60 100 200 m
color:
Black
pplications:
Long-haul,Metro and Access System Fiber CATV

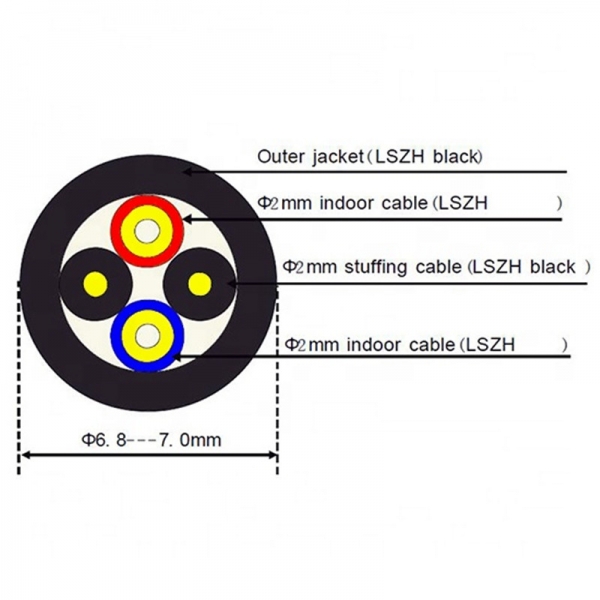

Cable diameter:
7 mm
cable type:
single mode, multimode
Fiber Type:
G652D
Compliant::
IEC, TIA/EIA, NTT and JIS specifications
OEM:
Support
    Quick Details
    Place of Origin:
    Guangdong, China
    Brand Name:
    Homenet
    Model Number:
    CPRI cable patch cord
    Product name:
    CPRI cable patch cord
    Name:
    CPRI cable patch cord
    lenth:
    50 60 100 200 m
    color:
    Black
    pplications:
    Long-haul,Metro and Access System Fiber CATV
    Cable diameter:
    7 mm
    cable type:
    single mode, multimode
    Fiber Type:
    G652D
    Compliant::
    IEC, TIA/EIA, NTT and JIS specifications
    OEM:
    Support
    Supply Ability
    Supply Ability:
    1000 Unit/Units per Day
    Packaging & Delivery
    Packaging Details
    100pc/plastic box
    Port
    Shenzhen,HK ,Guangzhou
    Lead Time :
    Quantity(Units) 1 - 100 >100
    Est. Time(days) 3 To be negotiated

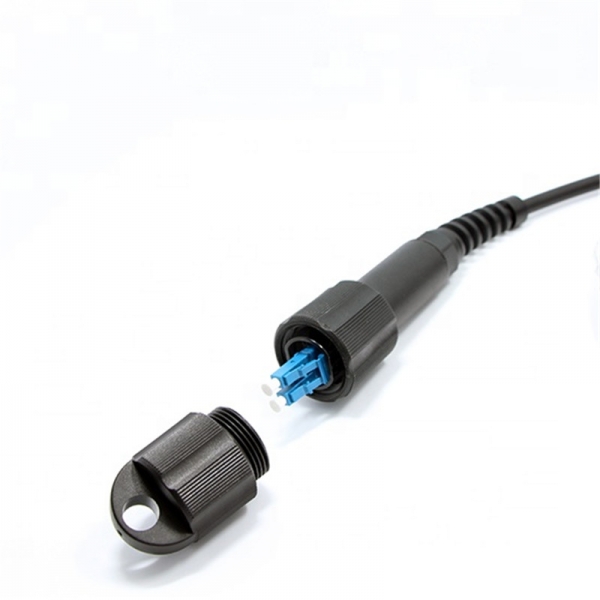

    IP67 ODVA Duplex Fiber Optic Connectors

    ODVA PDLC BBU RRU Patch Cable is for CPRI application,that widely used in 3G,4G and WIMAX base station, Long term Evolution(LTE),and Remote Radio Units to the FTTA connectivities.

    ODVA PDLC BBU/RRU Patch cables, together with IP-67 rated compact RRH/RRU Helix cover connectors that have fast coupling. these patch cables are always sealed with rugged fiber terminal junction boxes that meet the requirements of more antennas on a wireless tower.

    With the development of distributed antenna syatems(DAS), ODVA,PDLC connectors has become a standard interface for the new generation wireless base station linked to the FTTA equipment that set up outdoor environment.



    Typical Usages

    FTTA,FTTH Application
    3G,4G Base Station
    Horizontal and Vertical Cabling
    BBU,RRU,RRH,LTE

    Typical Advantage

    IP67 Protection, Salt-mist proof
    Fully Water-blocked
    Wall Seal Design, Easy Operation, Cost-effective Installation
    Light Weight, Dustproof and Waterpoof

    Performance Parameters

    Connector End A Compact RRH/BBU Helix Cover Connector
    End B DLC (duplex LC),or SC,FC,ST,MPO,MTP......
    Fiber Core 2,4…12
    Mode Singlemode Multimode
    Operating Wavelength(nm) 1310/1550 850/1310
    Polishment UPC APC UPC
    Insertion Loss(Max.dB) 0.2 0.3
    Return Loss(Min.dB) 55 60 35
    Mating times 500 Min
    Durability(Max.dB) 0.2
    Reaptability(Max.dB) 0.5
    Operating Temperature(℃) -40~+85
    Storage Temperature(℃) -40~+85
