Fiber Optic Tool

Optical Fiber Cutting Knife Fiber Optic Cutter Cold Contact Dedicated Metal Ftth Tool Fiber Cleaver FC 6S

Features:
• Provides approximately 36,000 cleaves
• Compact body& light weight
• High Precision Cleaves
• 250um Coated or 900um Buffer fiber
• Singlemode or Multimode Use
• 12 Position Rotatable and Replicable Blade
Product Features:
Cutting angle: 0.5
Cutting length: 0.9mm fiber is 10-16mm;
0.25mm fiber is 9-16mm
Fibre package diameter: 125μm
Jacket OD: 0.25 & 0.9mm
Size: 75*62*60mm
Packing included
1pcs FC-6S Cleaver
3pcs allen wrench

    Optical Fiber Cutting Knife Fiber Optic Cutter Cold Contact Dedicated Metal Ftth Tool Fiber Cleaver FC 6S



    Optical Fiber Cutting Knife Fiber Optic Cutter Cold Contact Dedicated Metal Ftth Tool Fiber Cleaver FC 6S

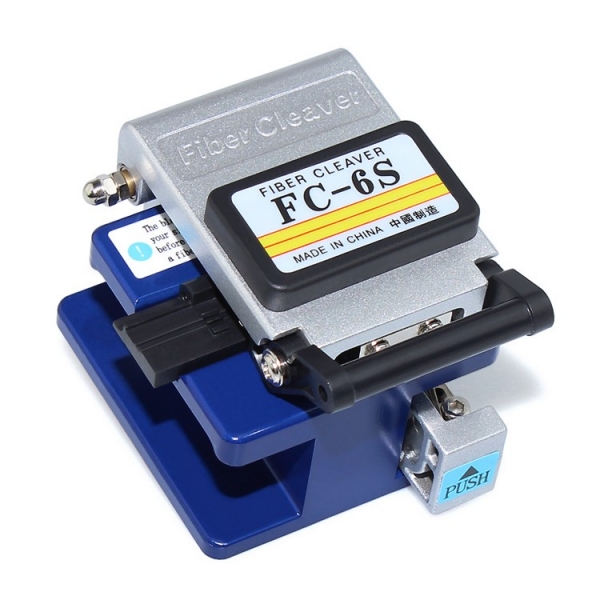

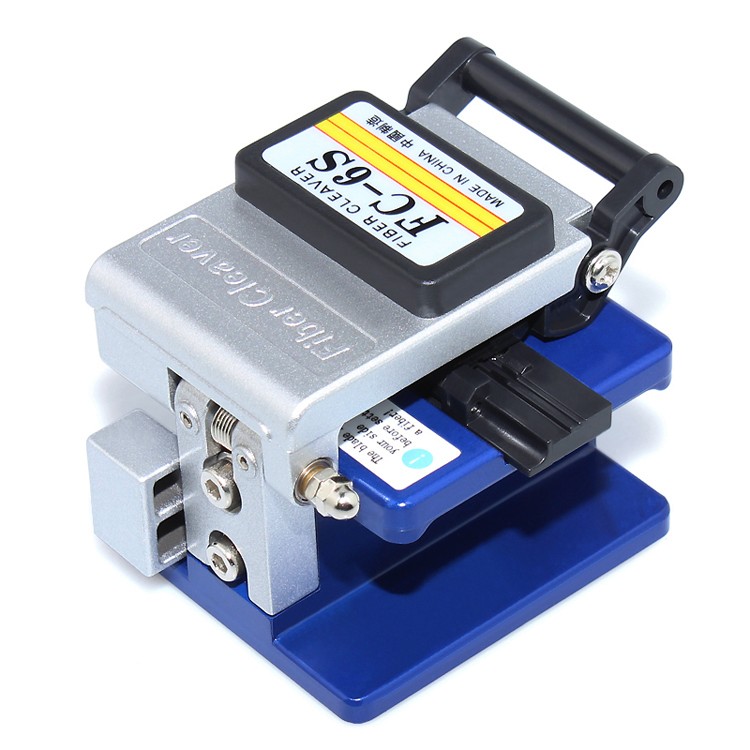

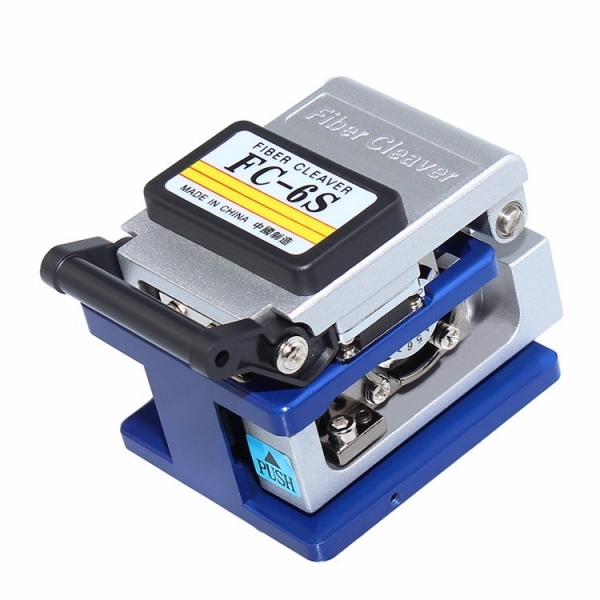

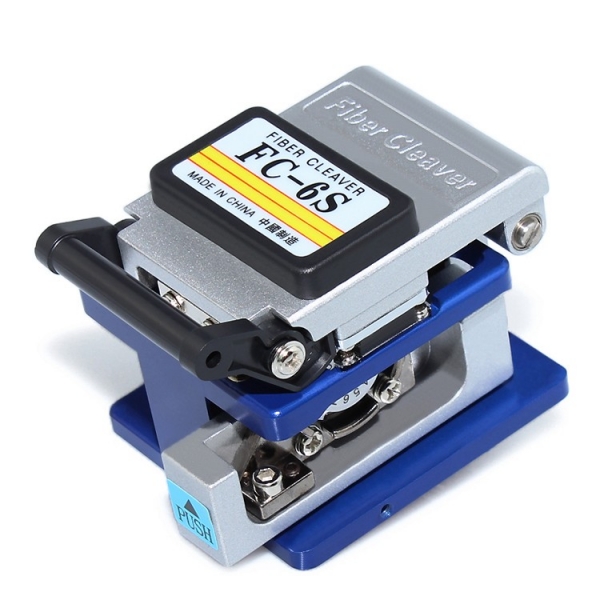

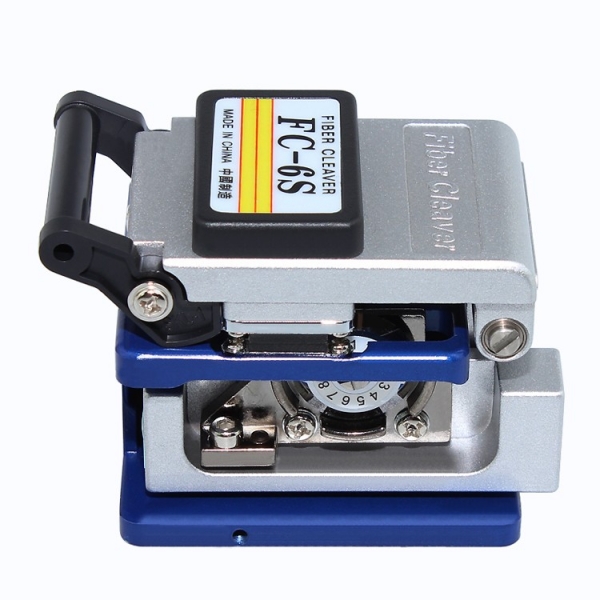

    This FC-6S optical fiber cleaver is available with a single fiber adapter for 250 to 900 micron coated single fibers. It is a simple operation for the user to remove or install the single fiber adapter and alternate between mass and single fiber cleaving.
    Provides approximately 36,000 cleaves
    Compact body& light weight
    High Precision Cleaves
    250um Coated or 900um Buffer fiber

    Singlemode



    Physical features:





    Bare fiber diameter 0.25mm~0.9mm
    Outercoat diameter 125µm
    Fiber type Single tube fiber and Ribbon fiber(exchangeable)
    Cleaved length 9~16mm(φ0.25) 10~16(φ0.9)
    Cleaved angle ≤0.5°
    blade life 36,000 cleaves
    Mode Semiautomatic
    Dimension 63mm(W)*76mm(D)*63mm(H)
    Weight

    430g

     Optical Fiber Cutting Knife Fiber Optic Cutter Cold Contact Dedicated Metal Ftth Tool Fiber Cleaver FC 6SOptical Fiber Cutting Knife Fiber Optic Cutter Cold Contact Dedicated Metal Ftth Tool Fiber Cleaver FC 6SOptical Fiber Cutting Knife Fiber Optic Cutter Cold Contact Dedicated Metal Ftth Tool Fiber Cleaver FC 6S

    Optical Fiber Cutting Knife Fiber Optic Cutter Cold Contact Dedicated Metal Ftth Tool Fiber Cleaver FC 6S
