FTTH Tool Kit High Precision Handheld Fiber Optical Power Meter -70+3 dBm Fiber Optical Cable-Homenet Electronic Technology Co.,LTD

Products

homenet2007@hotmail.com

< >

1.Features:

Assembled with 2.5mm universal connector suitable for all φ2.5mm optical connector. (support FC/SC/ST connectors).

Low power consumption ,continuous working time is more than 48 hours .

Linear optical power and logarithmic power display.

Relative value measurement function.

Compact and portable design

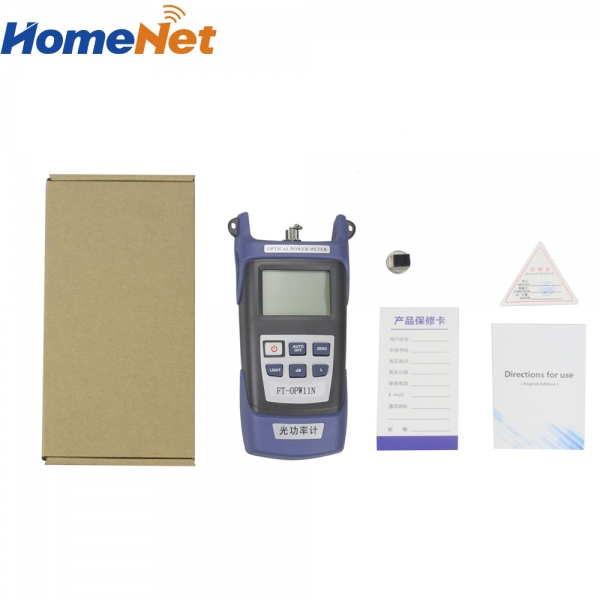

2.Standard Accessories

FC/SC Adapter

FTTH Tool Kit High Precision Handheld Fiber Optical Power Meter -70+3 dBm Fiber Optical Cable

Physical features:

Wavelength(nm)	(800~1700 )
Detector	InGaAs
Measurement Range (dBm)	-70~+10	-50~+26
Uncertainty	+0.2(5%)
Calibrated Wavelength(nm)	850,980,1300,1310,1490,1550, 1625
Resolution(dB)	Linear 0.1% or Non-linear 0.01dBm
Optical Connector	FC/ Universal 2.5mm adapter (FC,SC,ST interchangeable connector can be optional)
Power Supply	Alkaline Battery(3 AA 1.5V batteries)
Battery Operating Time	240 h with 1.5V Battery(3)
Operating Temperature(oC)	-10 ~ +60
Storage Temperature(oC)	-25 ~ +70
Relative Humidity	0 to 95% (non-condensing)
Dimension(mm)	172x82x33
Weight	300 g
