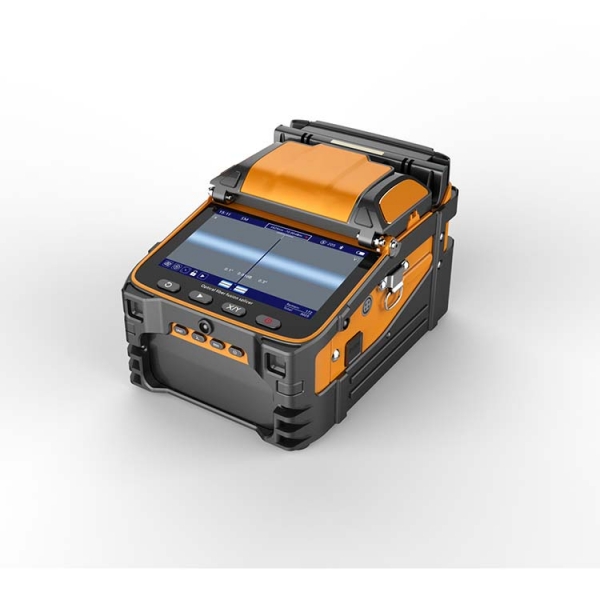

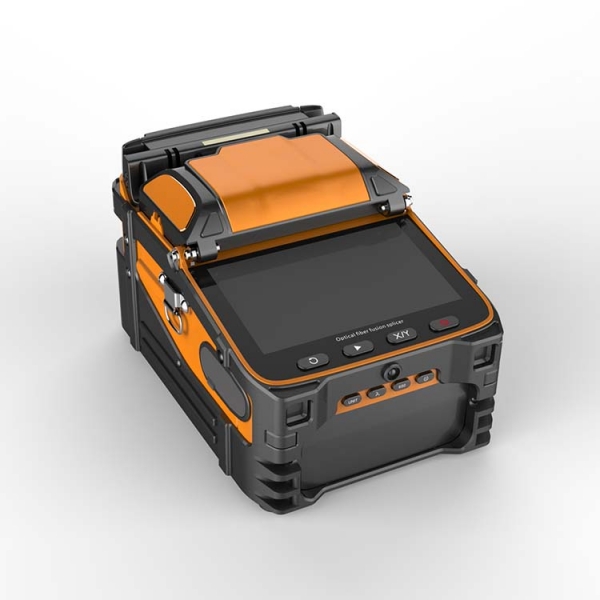

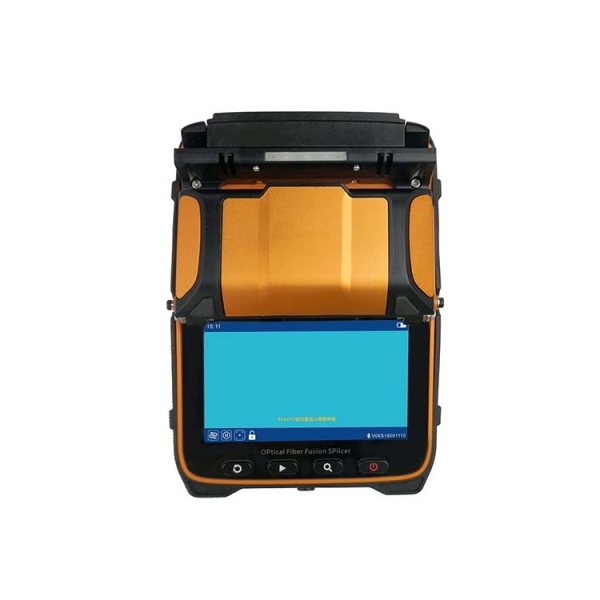

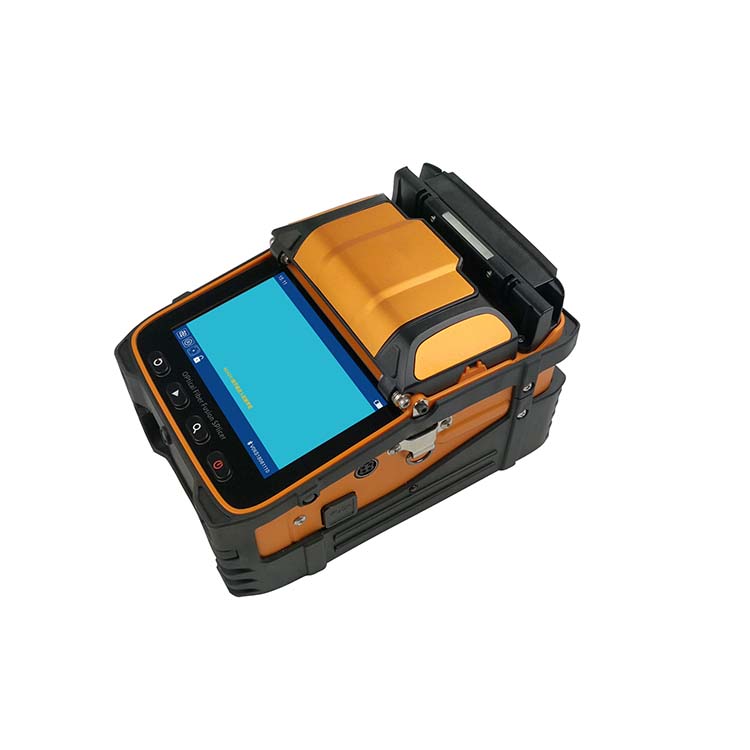

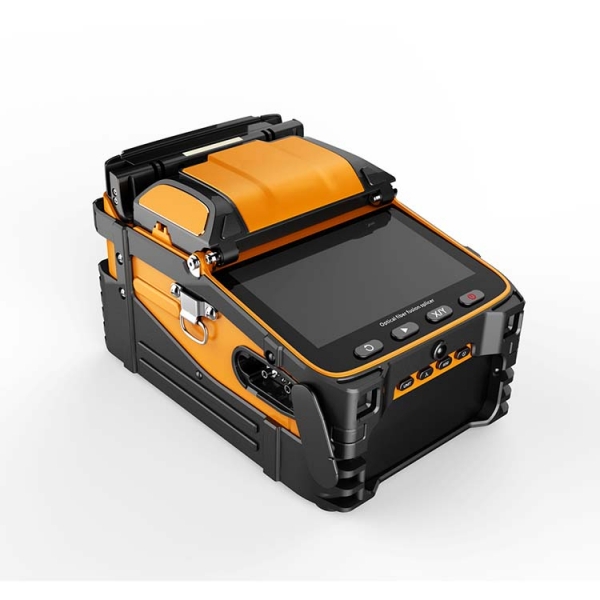

AI-9 use the latest core alignment technology with auto focus and six motors, it is a new generation of fiber

fusion splicer. It is fully qualified with trunk construction of medium and short distance, FTTH project, security

monitoring and other fiber cable splicing projects. The machine uses industrial quad-core CPU, fast response, is

currently one of the fastest fiber splicing machine in the market; with 5-inch 800X480 high-resolution screen, the

operation is simple and intuitively; and up to 300 times focus magnifications, making it is very easy to observe

the fiber with naked eyes. 5 seconds speed core alignment splicing, 15 seconds heating, the working efficiency

increased by 50% compared to ordinary splicing machines. Under the conditions of rigorous testing, the

performance is still outstanding; toolbox is small, exquisite, durable, and with unique bench design. The design

of operating platform reflects the humanistic care; unique lighting design, it is convenient for night construction

or repair. Screen brightness is adjustable and it is convenient for outdoor sunshine environment operation. The

core parts are using imported brands, aviation metal body material with exquisite details. With the combination

of advanced technology and design, the new generation of optical fiber fusion splicer will bring you a reliable

and comfortable user experience

AI-9 Fusion Splicer FTTH Fiber Optic Welder Fusion Machine English Russian Spanish AI-9 Fusion Splicer

Physical features:

Fiber alignment	Core/cladding alignment / Manual alignment
Splice Loss	0.025dB(SM),0.01dB(MM)0.04dB(DS/NZDS)
Splicing Mode	Normal / high precision splicing
Splicing record storage	Synchronize to the phone, the server to cloud storage unlimited
Shrinkable tube	60mm,50mm,40mm,25mm
Built-in battery	7800 mA high-capacity lithium battery, charging time ≤ 3.5 hours, continuous splicing and heating about 200 times
Optical Power Meter	Wavelength:850nm,1300nm,1310nm,1490nm,1550nm,1625nm Measuring Range:-70 ~ +6db Absolute Error:<0.3db(-50dbm ~ +3dbm Range)
