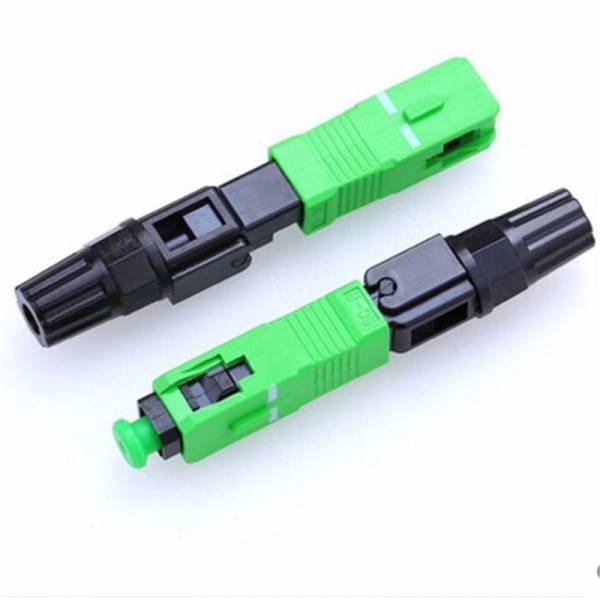

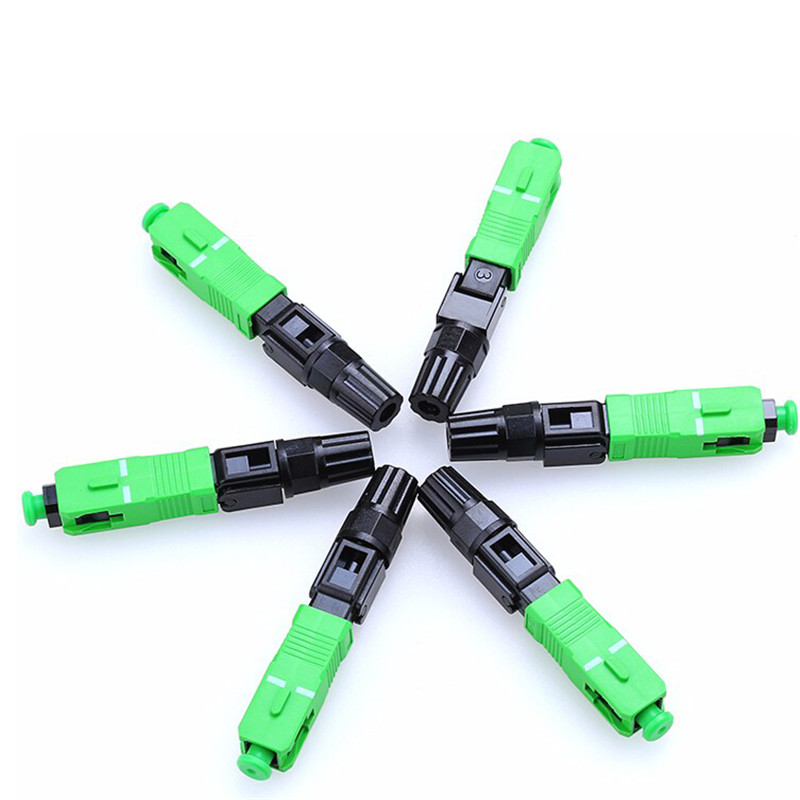

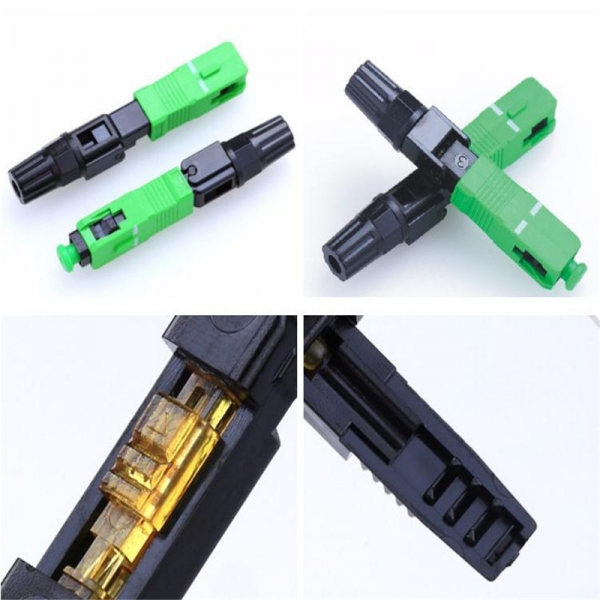

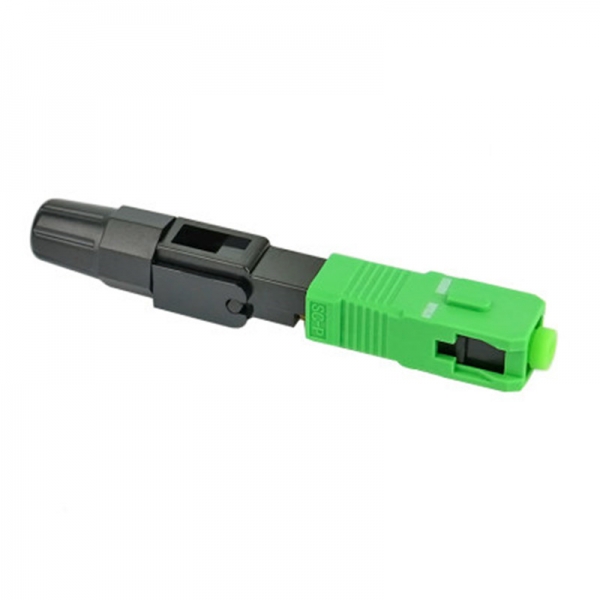

FTTH Tool Cold Fiber SC APC Fast Connector-Homenet Electronic Technology Co.,LTD

Products

homenet2007@hotmail.com

< >

Low insertion loss ,high return loss

Features

Low insertion loss ,high return loss

Reliable optical performance

Good connection stability

Convenient for field installation

Installs fast,Operates easy

Low cost

Applications

Telecommunications,acccess network

Optic fiber CATV LAN and Access Network

Terminal of the devices multimedia

Testing and hospital deveces

Other industry and military applications

Technical Parameters

FTTH Fast Connector Specification
Mode	SM		MM
Polish	UPC	APC	PC
Insertion Loss	Typical ≤0.2dB Maximum ≤0.3dB		≤0.25dB
Return Loss	≥50dB	≥65dB	≥35dB
Interchangeability	≤0.2dB
Repeatability	≤0.1dB
Durability	≤0.2dB (1000 times mating)
Tensile Strengh	> 10kg
Temperature	≤0.2dB (-40+85 sustain 100 hours)
Humidity	≤0.2dB (+25+65 93 R.H.100 hours)
