Technical Item

Details

PON interface

1 GPON/EPON port(EPON PX20+ and GPON Class B+)

Upstream: 1310nm, Downstream: 1490nm

SC/APC connector

Receiving sensitivity: ≤-27dBm

Transmitting optical power: 0~+4dBm

Transmission distance: 20KM

LAN interface

10/100/1000Mbps auto adaptive Ethernet interfaces.

10/100/1000M Full/Half, RJ45 connector

CATV Interface

RF, optical power : +2~-18dBm

Optical reflection loss: ≥45dB

Optical receiving wavelength: 1550±10nm

RF frequency range: 47~1000MHz,  RF output impedance: 75Ω

RF output level: ≥ 82dBuV(-7dBm optical input)

AGC range: +2~-7dBm/-4~-13dBm/-5~-14dBm

MER: ≥32dB(-14dBm optical input), >35(-10dBm)

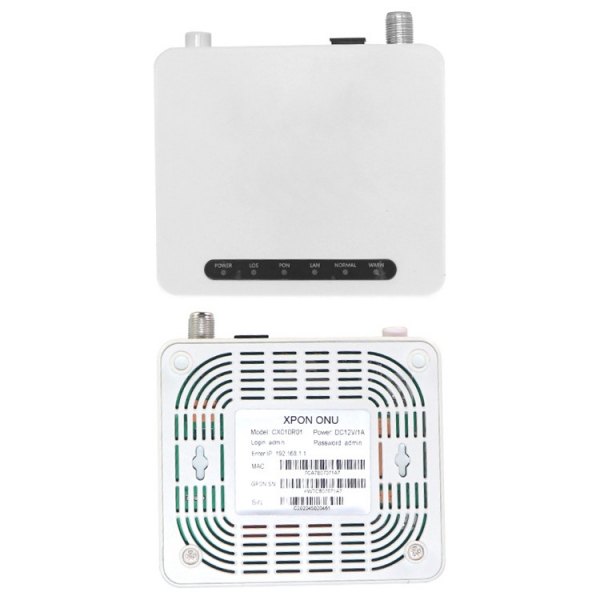

LED

6 LED, For Status of POWER, LOS, PON, LAN, NORMAL, WARN

Push-Button

2, for Function of Power on/off, Reset

Operating condition

Temperature : 0℃~50℃

Humidity :10%~90%(non-condensing)

Storing Condition

Temperature : -40℃~+60℃

Humidity :10%~90%(non-condensing)

Power supply

DC 12V/1A

Power Consumption

<3W

Net Weight

<0.2kg
