G/E/XPON ONU

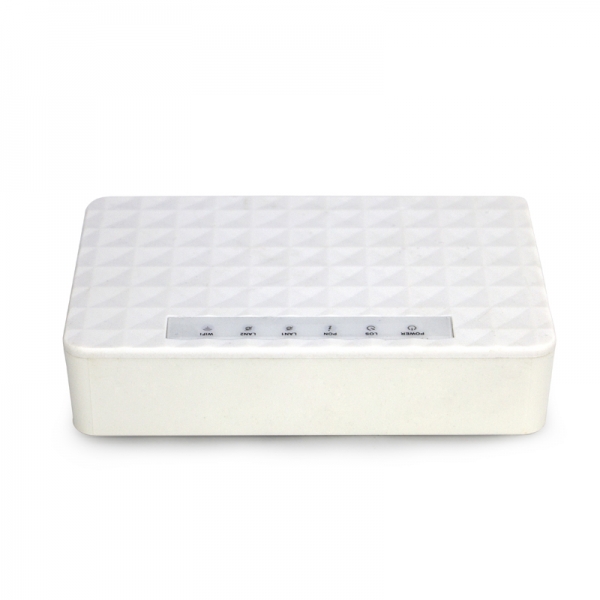

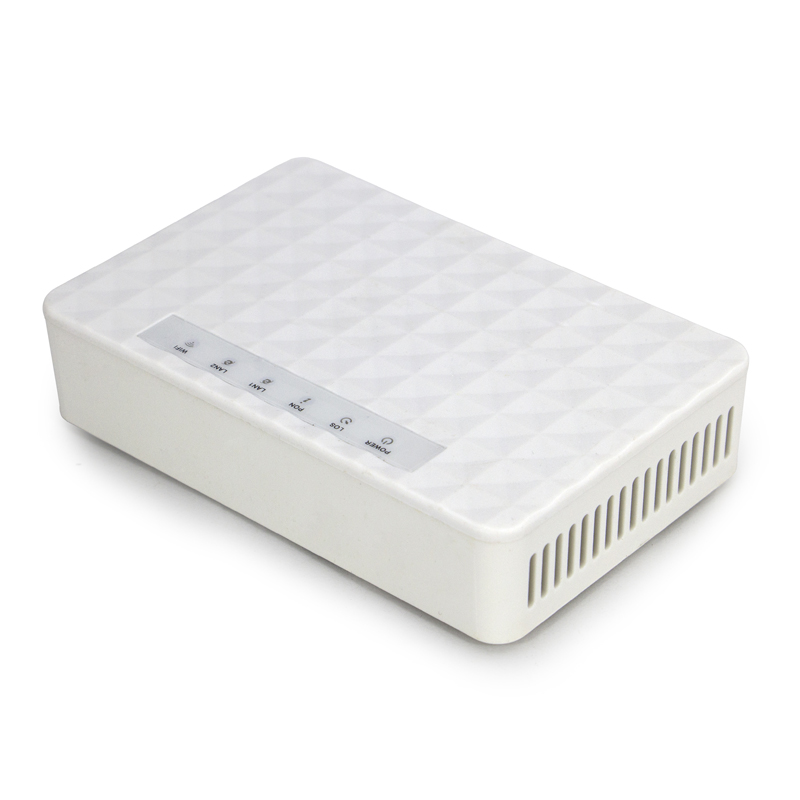

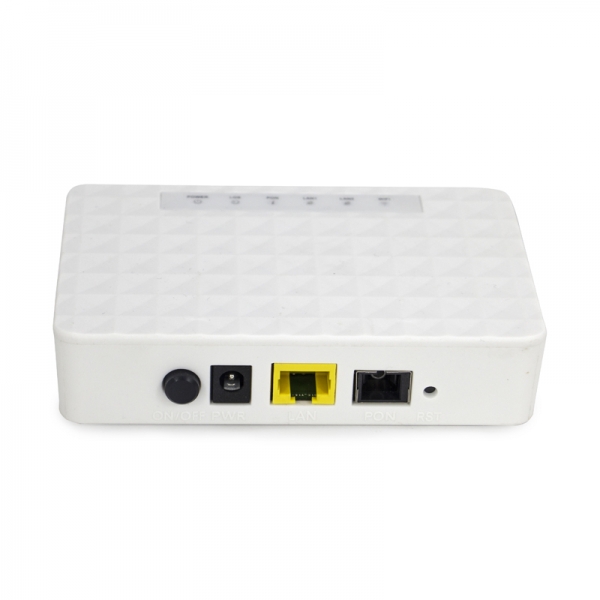

1GE GPON ONU

Port features:
 1 PON ports (2.5G)
 1 10/100M port
 1 WLAN Port

Physical features:
 Power supply: 12VDC
 Power consumption: 6W
 Temperature:
 Working temperature:0~55℃
 Storage temperature: -30~60℃
 Relative humidity: 10~90% (non-condensing)
 Storage temperature: -30~60℃
 Relative humidity: 10~90% (non-condensing)

    Product features:
                Conform to ITU-T G.984 GPON standards.
    Support Ethernet service layer 2 switching and wire-speed forwarding of uplink and downlink services
    Support frame filtering and suppression
    Support standard 802.1Q Vlan function, support VLAN conversion
    Support 4094 VLANs (802.1Q)
    Support Dynamic Bandwidth Allocation (DBA) function
           Support QoS, including traffic flow classification, priority marking, queue and dispatch, traffic shaping and traffic control, etc
    Single ONU supports up to 1 LLID.
    Support IGMP Snooping
    Support Ethernet port ratelimit loop detection
    Support power failure alarm
    Support lightning protection for power supply and lightning protection for service port
    Complies with 2.4GHz IEEE802.11n v2.0 and backward compatible with IEEE 802.11b/g standards
    Supports NAT/NAPT IP sharing
    WAN Protocols: PPPoE/StaticIP/PPTP/DHCP
    Supports advanced 2T2R MIMO technology to enhance the throughput and coverage range significantly
    High speed data rate - up to 300Mbps

    Port features:
    1 PON ports (2.5G)
    1 10/100M port
    1 WLAN Port

    Physical features:
    Power supply: 12VDC
    Power consumption: 6W
    Temperature:
    Working temperature:0~55℃
    Storage temperature: -30~60℃
    Relative humidity: 10~90% (non-condensing)
    Storage temperature: -30~60℃
    Relative humidity: 10~90% (non-condensing)
