G/E/XPON ONU

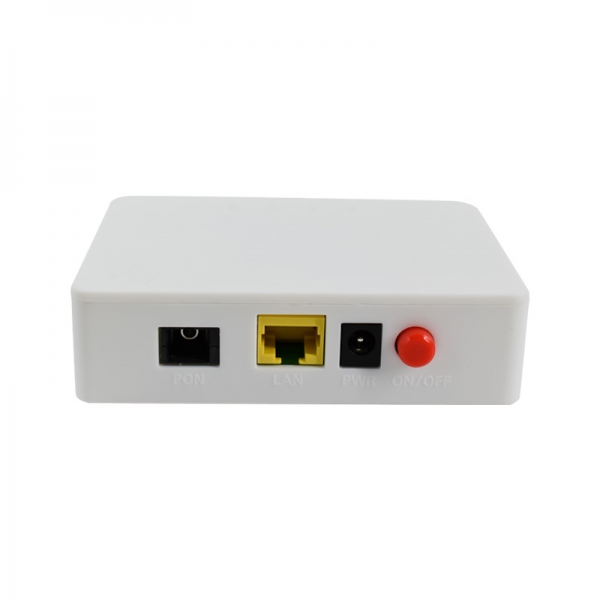

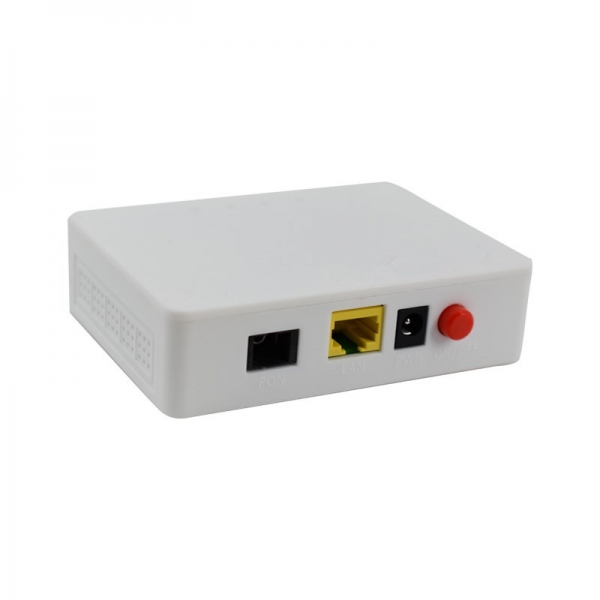

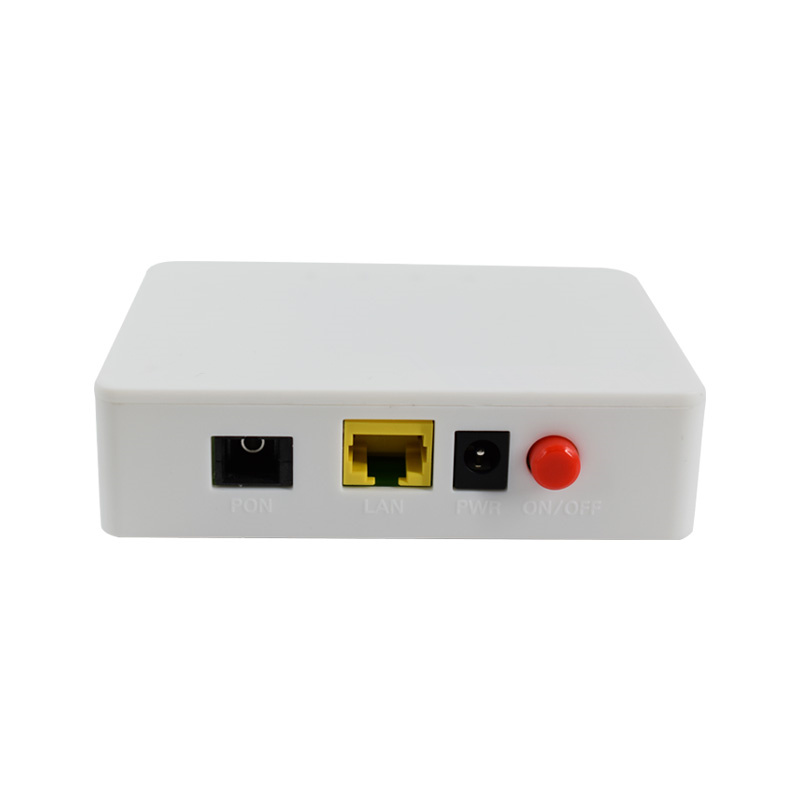

1GE EPON ONU

1. Plug and play, integrated auto detecting, auto configuration, and auto firmware upgrade technology.
2. Support OAM remote configuration and maintenance.
3. Support rich VLAN, DHCP Server and IGMP snooping multicast feature.
4. Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset.
5. Support NAT, Firewall function.
6. The WAN port supports bridge or router mode .

    Item

    Parameter















          Interface









    PON Interface

    1 EPON optical interface

    Meet 1000BASE-PX20+ standard

    Symmetric1.25Gbpsupstream/downstream SC single-mode fiber

     split ratio:1:64

     Transmission distance 20KM



     User Ethernet Interface

    1*10/100/1000M auto-negotiation Full/half duplex mode

    RJ45 connector Auto MDI/MDI-X 100m distance

    Power Interface

    12V DC Power supply















      Performance  Parameters





    PON

    Optical Parameter

    Wavelength: Tx 1310nm, Rx1490nm Tx Optical Power: -1~4dBm

    Rx Sensitivity: -27dBm

     Saturation Optical Power: -3dBm Connector Type: SC

    Optical Fiber: 9/125 single-mode fiber



    Data Transmission Parameter

    PON Throughput: Downstream 950Mbps; Upstream 930Mbps, 1000Mbps

    Packet Loss Ratio:<1*10E-12 latency: <1.5ms





     Gateway

    Router mode supports PPPoE/DHCP/ static IP WAN support Route rand Bridge mode

    WAN support Internet,VoIP,IPTV,TR069

    LAN supports DHCP and static IP Support NAT and NAPT

    Support UPnP
