Overview
l 1G1F+WIFI is designed as HGU (Home Gateway Unit) in deferent FTTH solutions; the carrier-class FTTH application provides data service access.
l 1G1F+WIFI is based on mature and stable, cost-effective XPON technology. It can switch automatically with EPON and GPON mode when it access to the EPON OLT or GPON OLT.
l 1G1F+WIFI adopts high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of the module of China Telecom EPON CTC3.0.
l 1G1F+WIFI is compliant with IEEE802.11n STD, adopts with 2x2 MIMO, the highest rate up to 300Mbps.
l XPON 1G1F+WIFI are fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah.
l XPON 1G1F+WIFI is designed by Realtek chipset 9602C
Functional Feature
l Supports Dual Mode (can access GPON/EPON OLT).
l Supports GPON G.984/G.988 standards
l Support 802.11n WIFI (2x2 MIMO) function
l Support NAT, Firewall function.
l Support Flow & Storm Control , Loop Detection, Port Forwarding and Loop-Detect
l Support port mode of VLAN configuration
l Support LAN IP and DHCP Server configuration
l Support TR069 Remote Configuration and WEB Management
l Support Route PPPoE/IPoE/DHCP/Static IP and Bridge mixed mode
l Support IPv4/IPv6 dual stack
l Support IGMP transparent/snooping/proxy
l In compliant with IEEE802.3ah standard
Specification:
|
Technical Item |
Details |
|
PON interface |
1 G/EPON port(EPON PX20+ and GPON Class B+) Upstream: 1310nm; Downstream: 1490nm SC/UPC connector Receiving sensitivity: ≤-27dBm Transmitting optical power: 0~+4dBm Transmission distance: 20KM |
|
LAN interface |
1x10/100/1000Mbps and 1x10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector |
|
WIFI Interface |
Compliant with IEEE802.11b/g/n Operating frequency: 2.400-2.4835GHz support MIMO, rate up to 300Mbps 2T2R,2 external antenna 5dBi Support: Multiple SSID Channel:13 Modulation type: DSSS,CCK and OFDM Encoding scheme: BPSK,QPSK,16QAM and 64QAM |
|
LED |
7 LED, For Status of POWER, LOS, PON, LAN1~LAN2, WIFI, WPS |
|
Push-Button |
4, for Function of Power on/off, Reset, WPS, WIFI |
|
Operating condition |
Temperature : 0℃~+50℃ Humidity :10%~90%(non-condensing) |
|
Storing Condition |
Temperature : -40℃~+60℃ Humidity :10%~90%(non-condensing) |
|
Power supply |
DC 12V/1A |
|
Power Consumption |
<6W |
|
Net Weight |
<0.4kg |

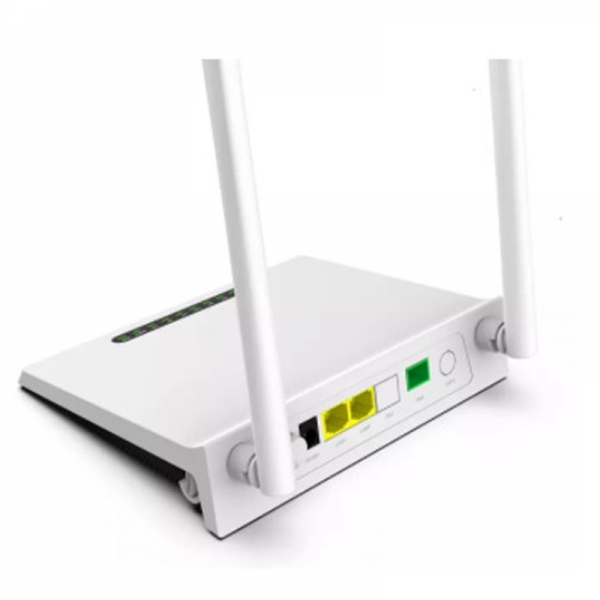

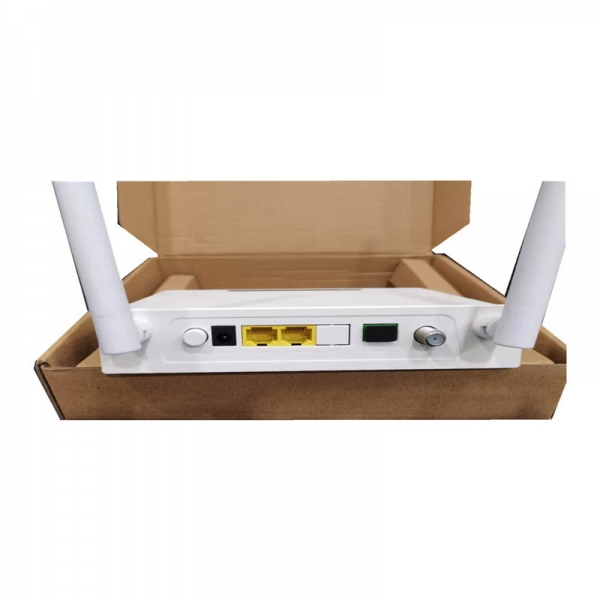

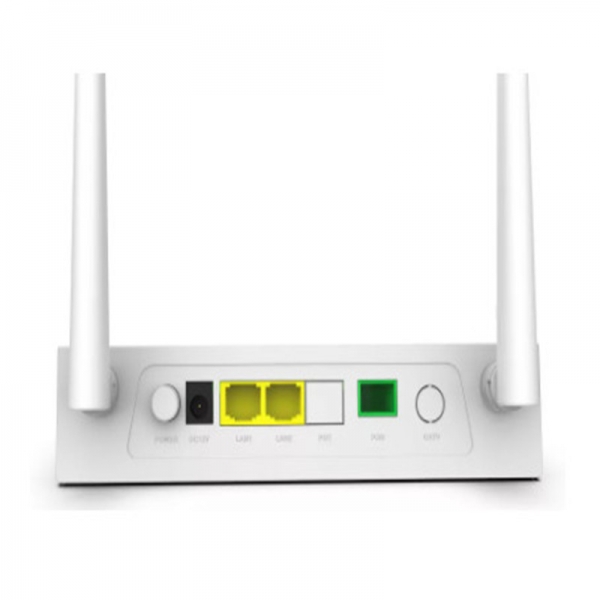

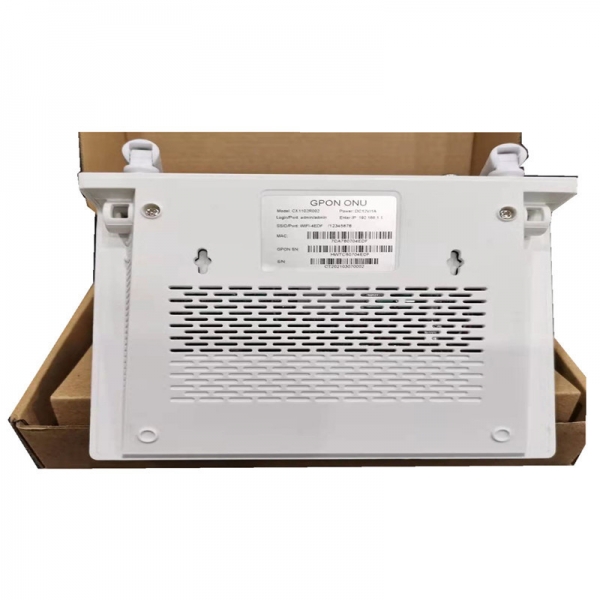

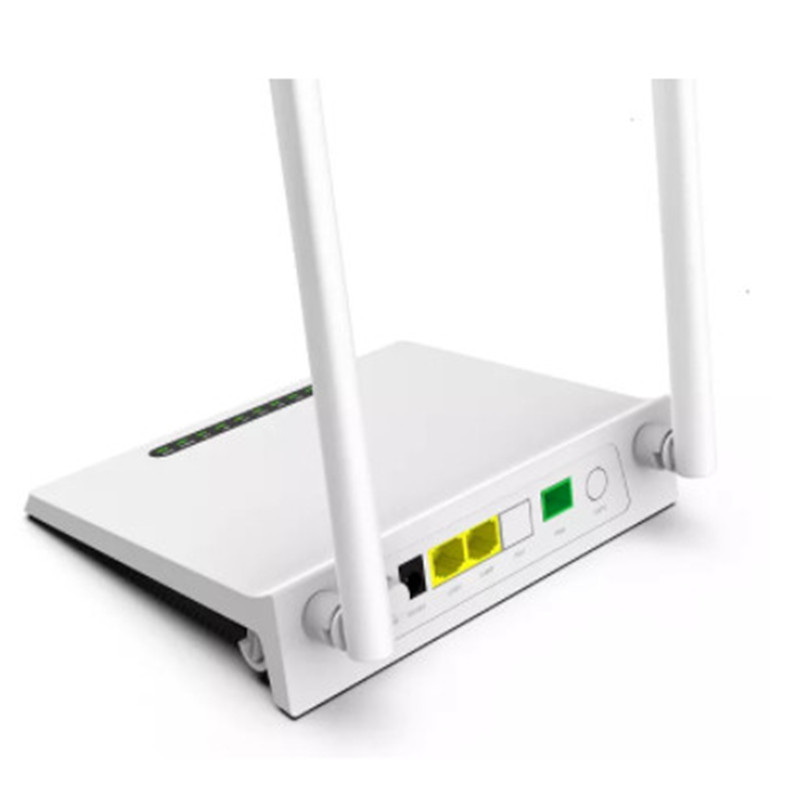

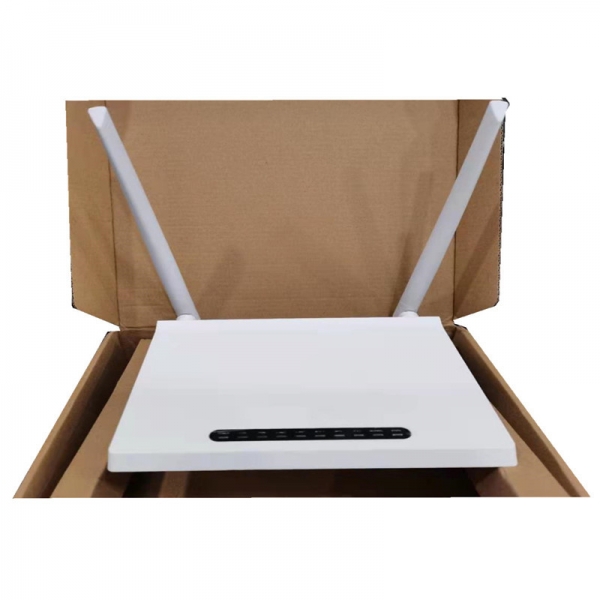

Products Real Take:
