EPON OLT

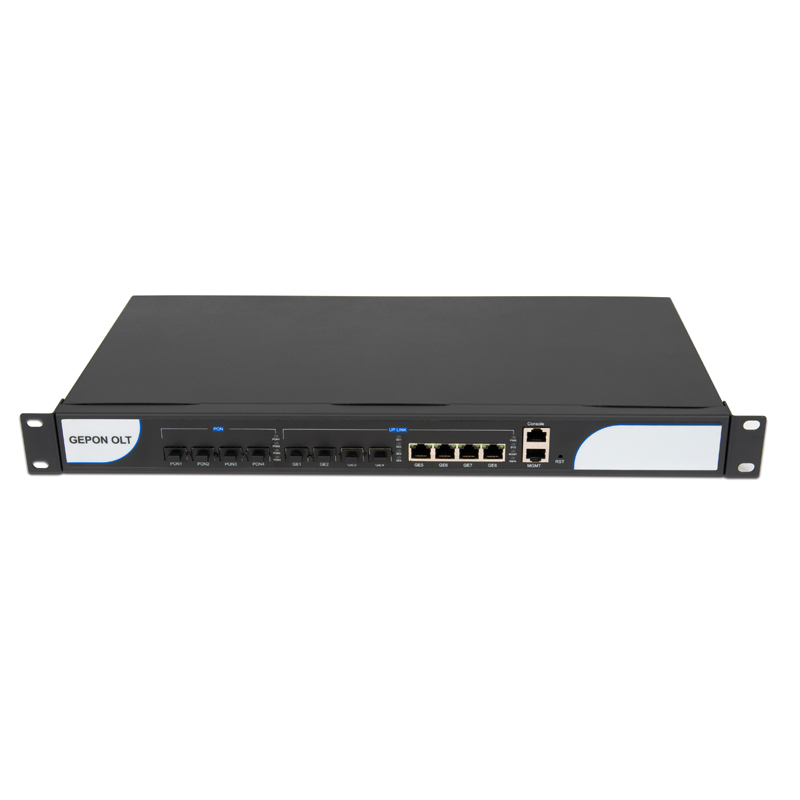

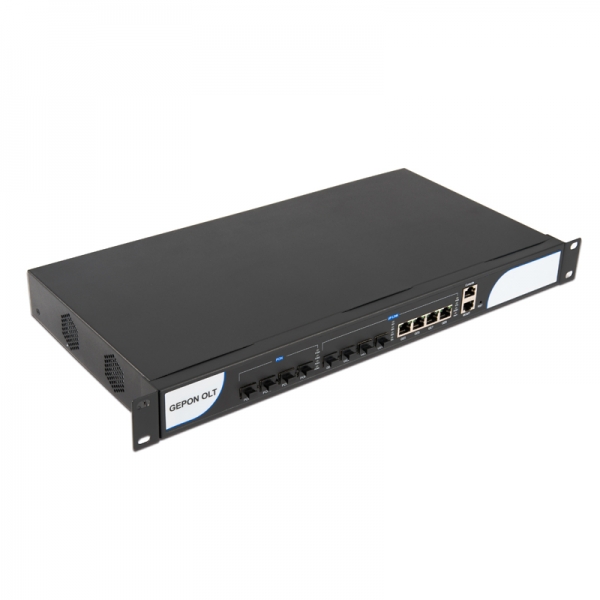

4 PORTS WEB EPON OLT

lWith 4 PON ports or 8PON ports.
lSupport 256/512 ONUs (1:64 splitting ratio, 10km transmission distance).
lProvide 4GE/8GE uplink ports and and 4 SFP/ 8 SFP Combo ports.
lMAC address table: 16K
lVLAN support: 4096
lONU auto find and auto register.
lSupport dynamic bandwidth distribution.
lSupport online upgrade and batch upgrade
lSupport in-band and out-of-band management interface
lSupport CLI, TELNET,EMS management mode.
lSupport dual-redundancy power supply.

    Product Features:

    l  With 4 PON ports or 8PON ports.

    l  Support 256/512 ONUs (1:64 splitting ratio, 10km transmission distance).

    l  Provide 4GE/8GE uplink ports and and 4 SFP/ 8 SFP Combo ports.

    l  MAC address table: 16K

    l  VLAN support: 4096

    l  ONU auto find and auto register.

    l  Support dynamic bandwidth distribution.

    l  Support online upgrade and batch upgrade

    l  Support in-band and out-of-band management interface

    l  Support CLI, TELNET,EMS management mode.

    l  Support dual-redundancy power supply.



    Technical Parameters:



    Items



    4PON OLT





    8PON OLT





    Rack

    Size

    1U height, 19 inches

    1U height, 19 inches

    Slot

    NO

    NO





    Uplink port

    Quantity

    8 ports

    16 ports

    Ethernet port

    4*100/1000M self-adaption Ethernet port

    8*100/1000M self-adaption Ethernet port

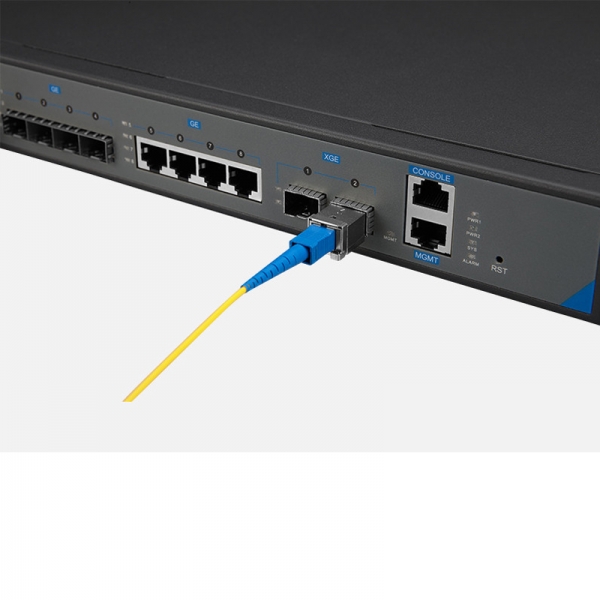

    SFP ports

    4 SFP (Combo ports)

    8 SFP (Combo ports)

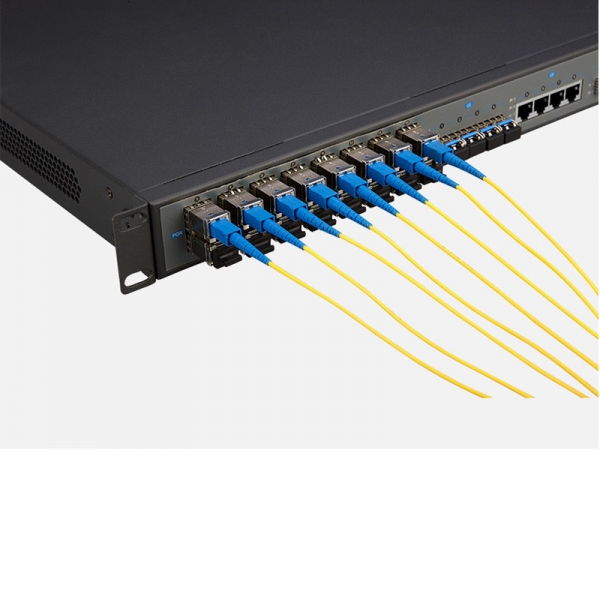

    PON port



    4PON

    8PON

     Physical interface

    SFP slot

    SFP slot

    Connect Type

    1000BASE-PX20

    1000BASE-PX20

    Maximum splitting ratio

    1:64

    1:64

    Management port

    one 100BASETX out-of-band Ethernet port, one CONCOLE local management port





    PON port feature

    ( work well with our PON module)

    Maximum  transmission distance



    20KM

    Port rate

    1.25Gbps

    Wavelength

    Tx1490nm, Rx 1310nm

    Connect Type

    SC

    Connect fiber

    9/125μm single mode single fiber

    Transmit optical power

    +2+7dBm

    Receive sensitivity

    -27dBm

    Saturated optical power

    -6dBm

    Network management ability

    Fan detection;

    Port state monitoring, configuration management;

    L2 switching configuration management, such as VLAN, TRUNK, RSTP, IGMP, QOS, etc

    EPON function configuration management, such as: DBA bandwidth allocation, ONU authentication, ACL configuration, QOS, etc

    Accessing ONU configuration and management (see the ONU specifications)

    Users management and alarm management

    Layer 2 switching part

    Support port VLAN, agreement VLAN, VLAN TAG/UNTAG, VLAN unvarnished transmission, VLAN transition;

    Support 4096pcs VLAN;

    Support 802.3 AD link aggregation (TRUNK)

    Support rapid spanning tree RSTP

    Support QOS based on port, VID, TOS, MAC address

    Support IGMP Snooping

    Support 802.1 x flow control

    Support port performance statistics

    EPON features

    Conform to IEEE802.3ah EPON standard

    Support downlink data encryption

    Support the DBA bandwidth allocation

    Support standard OAM and extended OAM

    Support the ONU authentication

    Support for dynamic range

    Support ACL packet filtering

    Supporting QOS, business flow classification and mark

    Support RSTP, IGMP Proxy

    Size

    442mm(L)*315mm(W)*44mm(H)

    Net Weight

    4.2kg

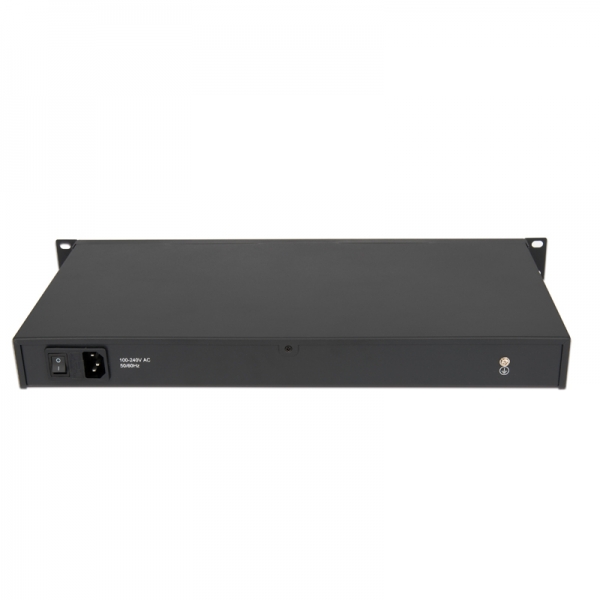

    Power supply

    220VAC

    4.5kg

     Maximum power

    -48DC

    AC: 90V240V, 47/63Hz

    45W

    DC:-36V-72V

    Environmental

    parameter

    Working temperature



    Storage temperature

    -1045℃

    Relative humidity

    -4085℃



    590% (no condensing)
