EPON OLT

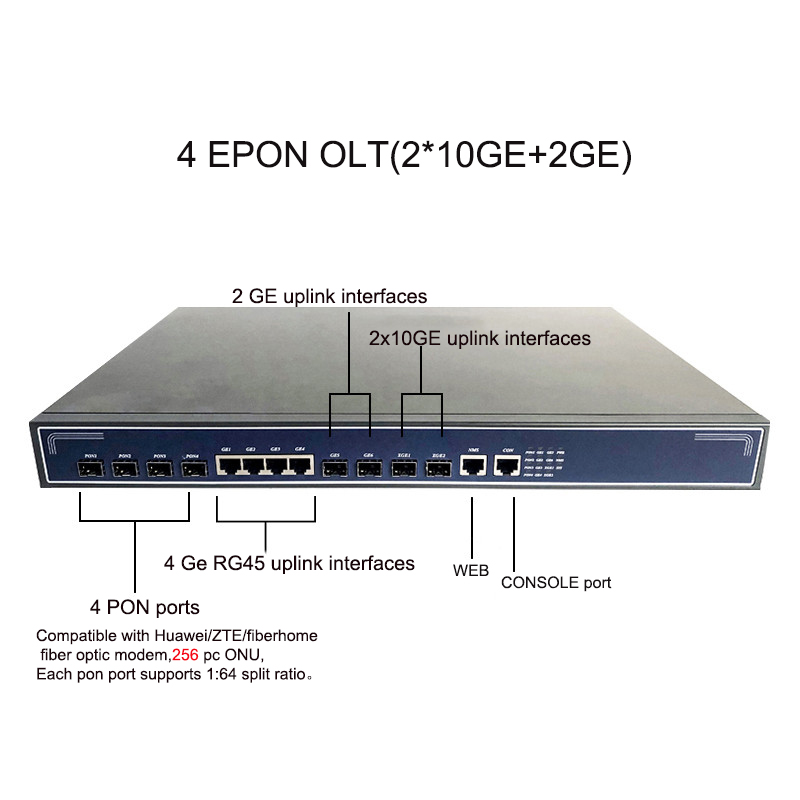

4 PON Ports EPON OLT with 2 10GE

Supply 4 PON Port
Supply 4 pcs RJ45 Uplink Port
Supply 4 SFP slots(Combo)
Supporting 256 ONUs under 1:64 splitter ratio.
Supporting various types of management mode, such as out-band, in-band, CLI /WEB and EMS based on development interface.
Typical Power 50W

    Items

    Unit

    Specifications

    PONstandard.



    EPON IEEE802.3ah

    PON interface



    4*EPON SFP Ports (PX20+), Receiving sensitivity: ≤-30dBm(Saturation Optical -6dBm). Power,Transmitting optical power: +2~+7dBmTransmission distance: 20KM. Max splitting ratio1:64

    Speed

    Upstream 1.25G

    Downstream 1.25G

    Wavelength

    nm

    Tx1310, Rx 1490

    Uplink

    GE

    4*copper ethernet ports 10/100/1000Mauto-negotiation

    SFP

    2*10GE+2GE/4*GE SFP

    Management Ports



    1*10/100BASE-T out-band port, 1*CONSOLE port

    Backplane

    Gbps

    128

    MAC table

    K

    32

    Spanning

    Tree protocol



    Support IEEE 802.1d (STP), 802.1w (RSTP) spanning tree protocols

    QoS



    Support 802.1p priority queue scheduling

    Support SPWRR and SP+WRR scheduling algorithms

    Operating condition

    Operating temp: -5 ~ +55

    Storing condition

    Storing temp: -40 ~ +85

    Humidity

    %

    5~90(non-condensing)

    Power consumption

    W

    ≤30

    Dimension

    mm

    440mm×300mm×44mm(L×W×H)

    Net weight

    Kg

    4.6Kg

    Please submit your basic information, we will contact you as soon as possible!

    *

    *

    *

    *
