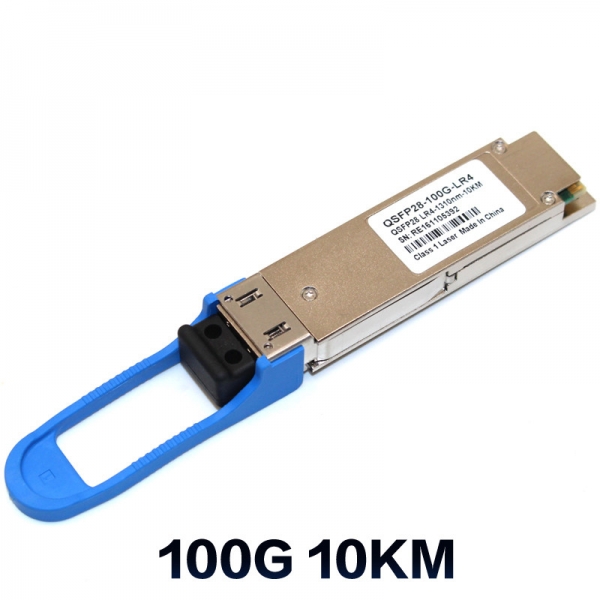

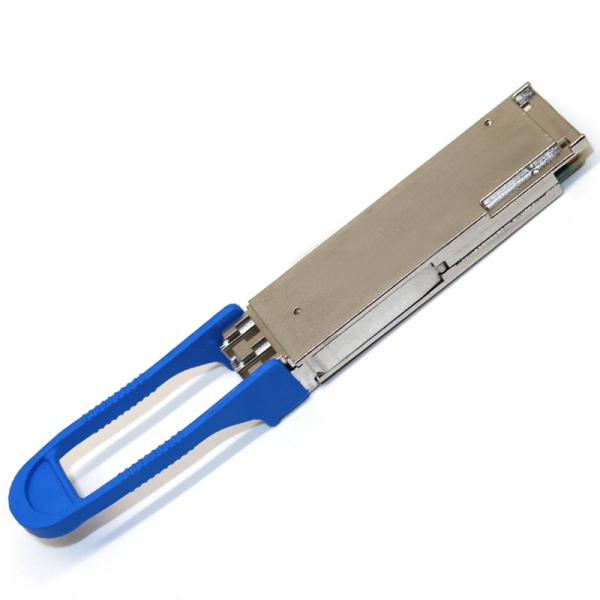

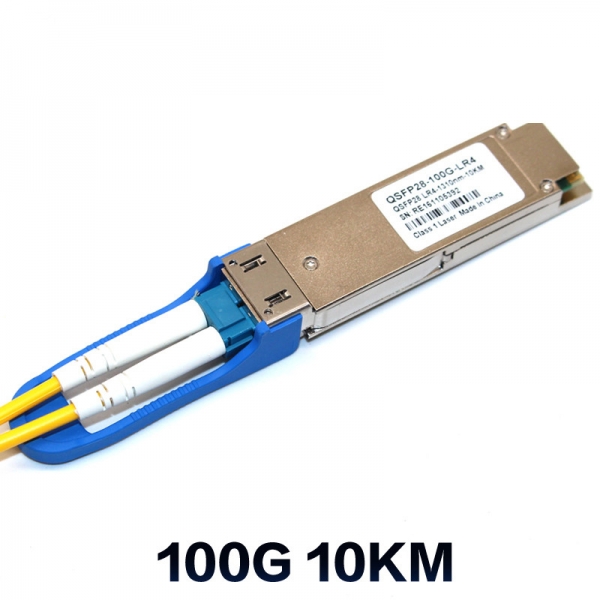

QSFP28 100G LR4

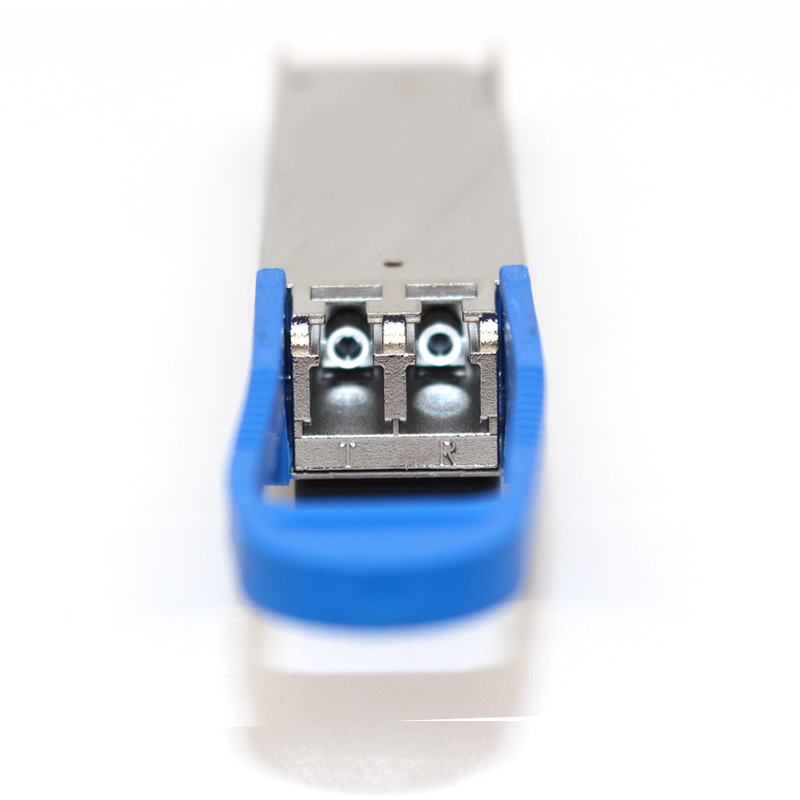

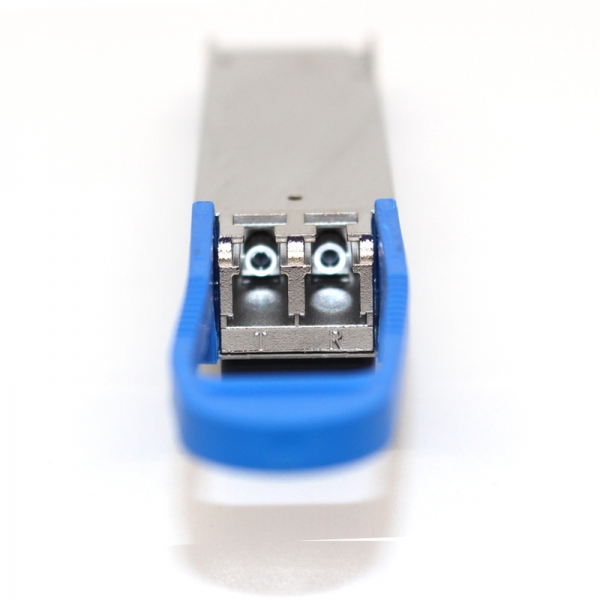

Single LC receptacle optical interface
Single +3.3V power supply
Hot-pluggable QSFP28 MSA form factor
4x25G Electrical Serial Interface
Compliant with 4x28G(CEI-28G-VSR)
AC coupling of CML signals
Receiver: 4x25Gb/s PIN ROSA
Low power dissipation(Max:3W)
Built in digital diagnostic function
Operating case temperature range:0℃ to 70℃
Compliant with 100GBASE-LR4
I2C Communication Interface

    Applications

    100GBASE-LR4

    Infiniband QDR and DDR interconnects

    100G Datacom connections

    Standards

    Compliant with IEEE 802.3ba

    Compliant with QSFP28 MSA hardware specifications

    Compliant with RoHS

    Functional Description

    The 100G QSFP28 LR4 optical receiver integrates receive path onto one module. The receiver four lanes of optical data streams are optically demultiplexed by an integrated optical demultiplexer. Each data steam is recovered by a PIN photodetector and transimpedance amplifier, retimed, and passed on to an output driver. This module features a hot-pluggable electrical interface, low power consumption, and 2-wire serial interface.



    Absolute Maximum Ratings

    Parameter

    Symbol

    Min.

    Max.

    Unit

    Note

    Supply Voltage

    Vcc

    -0.5

    3.6

    V



    Storage Temperature

    TS

    -40

    85

    °C



    Relative Humidity

    RH

    0

    85

    %



    Rx Damage Threshold,per Lane

    PRdmg

    5.5



    dBm



    Note: Stress in excess of the maximum absolute ratings can cause permanent damage to the transceiver.

    Recommended Operating Conditions

    Electrical Characteristics (Top=0~70, Vcc=3.14~3.47V)

    (Tested under recommended operating conditions,unless otherwise noted)

    Parameter

    Symbol

    Min

    Typ

    Max

    Unit

    Notes

    Receiver

    Signaling rate per lane

    DRPL

    25.78125 ± 100 ppm

    Gb/s



    Differential data output swing

    Vout,pp

    400



    800

    mV



    Eye width

    Ew

    0.57





    UI



    Vertical eye closure







    5.5

    dB



    Differential output return loss (min)

    RLd(f)

    9.5 0.37f,  0.01f<8

    4.75 7.4log10(f/14),  8 f<19



    dB



    Common to differential mode conver- sion return loss (min)



    RLdc(f)

    22-20(f/25.78), 0.01f<12.89

    15-6(f/25.78), 12.89f<19



    dB



    Differential termination mismatch

    Tm





    10

    %



    Transition time, 20% to 80%

    Tr,Tf

    12





    ps





    Optical Characteristics (Top=0~70, Vcc=3.14~3.47V)

    (Tested under recommended operating conditions,unless otherwise noted)

    Parameter

    Symbol

    Unit

    Min

    Typ

    Max

    Notes

    Receiver

    Receive Rate for Each Lane



    Gb/s

    25.78125 ±100 ppm

    1

    Four Lane Wavelength Range

    λ1

    nm

    1294.53

    1295.56

    1296.59



    λ2

    1299.02

    1300.05

    1301.09



    λ3

    1303.54

    1304.58

    1305.63



    λ4

    1308.09

    1309.14

    1310.19



    Overload Input Optical Power

    Pmax

    dBm

    5.5







    Average Receive Power for Each

    Lane

    Pin

    dBm

    -10.6



    4.5

    2,4

    Receiver Sensitivity(OMA)per lane

    Psens1

    dBm





    -10.6



    Stressed Sensitivity(OMA) per lane

    Psens2

    dBm





    -6.8

    3

    Return Loss

    RL

    dB

    -26







    Receiver Electrical 3dB upper cutoff frequency, per lane



    GHz





    31



    Los De-Assert

    Pd

    dBm





    -11.6



    Los Assert

    Pa

    dBm

    -23.6







    Loss Hysteresis

    Pd-Pa

    dBm



    2





    Notes:

    1. Receiver consists of 4 photodetectors operating at 25.78Gb/s each.

    2. Minimum value is informative, equals min TxOMA with infinite ER and max channel insertion loss.

    3. SRS is measured with vertical eye closure penalty of 1.8 dB max, J2 of 0.30 UI, and J9 of 0.47 UI.

    4. Power value and power accuracy are with all channels on..

    Pin

    Name

    Logic

    Description



    1

    GND



    Ground

    1

    2

    Tx2n

    CML-I

    NC

    10

    3

    Tx2p

    CML-I

    NC

    10

    4

    GND



    Ground

    1

    5

    Tx4n

    CML-I

    NC

    10

    6

    Tx4p

    CML-I

    NC

    10

    7

    GND



    Ground

    1

    8

    ModSelL

    LVTTL-I

    Module Select

    3

    9

    ResetL

    LVTTL-I

    Module Reset

    4

    10

    Vcc Rx



    +3.3V Power Supply Receiver

    2

    11

    SCL

    LVCMOS-I/O

    2-wire serial interface clock

    5

    12

    SDA

    LVCMOS-I/O

    2-wire serial interface data

    5

    13

    GND



    Ground

    1

    14

    Rx3p

    CML-O

    Receiver Non-Inverted Data Output

    9

    15

    Rx3n

    CML-O

    Receiver Inverted Data Output

    9

    16

    GND



    Ground

    1

    17

    Rx1p

    CML-O

    Receiver Non-Inverted Data Output

    9

    18

    Rx1n

    CML-O

    Receiver Inverted Data Output

    9

    19

    GND



    Ground

    1

    20

    GND



    Ground

    1

    21

    Rx2n

    CML-O

    Receiver Inverted Data Output

    9

    22

    Rx2p

    CML-O

    Receiver Non-Inverted Data Output

    9

    23

    GND



    Ground

    1

    24

    Rx4n

    CML-O

    Receiver Inverted Data Output

    9

    25

    Rx4p

    CML-O

    Receiver Non-Inverted Data Output

    9

    26

    GND



    Ground

    1

    27

    ModPrsL

    LVTTL-O

    Module Present

    6

    28

    IntL

    LVTTL-O

    Interrupt

    7

    29

    Vcc Tx



    +3.3V Power supply transmitter

    2

    30

    Vcc1



    +3.3V Power supply

    2

    31

    LPMode

    LVTTL-I

    Low Power Mode

    8

    32

    GND



    Ground

    1

    33

    Tx3p

    CML-I

    NC

    10

    34

    Tx3n

    CML-I

    NC

    10

    35

    GND



    Ground

    1

    36

    Tx1p

    CML-I

    NC



    37

    Tx1n

    CML-I

    NC

    10

    38

    GND



    Ground

    1

    Notes:

    1: GND is the symbol for signal and supply (power) common for the module. All are common within the module and all module voltages are referenced to this potential unless otherwise noted. Connect these directly to the host board signal-common ground plane.

    2: Vcc Rx, Vcc1 and Vcc Tx shall be applied concurrently. Vcc Rx Vcc1 and Vcc Tx may be internally connected within the module in any combination. The connector pins are each rated for a maximum current of 1000 mA. Recommended host board power supply filtering is shown below .

    3: The ModSelL is an input pin. When held low by the host, the module responds to 2-wire serial communication commands. The ModSelL allows the use of multiple modules on a single 2-wire interface bus. When the ModSelL is "High", the module shall not respond to or acknowledge any 2-wire interface communication from the host. ModSelL signal input node shall be biased to the "High" state in the module.    In order to avoid conflicts, the host system shall not attempt 2-wire interface communications within the ModSelL de-assert time after any modules are deselected. Similarly, the host shall wait at least for the period of the ModSelL assert time before communicating with the newly selected module. The assertion and de-asserting periods of different modules may overlap as long as the above timing requirements are met.

    4: The ResetL pin shall be pulled to Vcc in the module. A low level on the ResetL pin for longer than the minimum pulse length (t_Reset_init) initiates a complete module reset, returning all user module settings to their default state. Module Reset Assert Time (t_init) starts on the rising edge after the low level on the ResetL pin is released. During the execution of a reset (t_init) the host shall disregard all status bits until the module indicates a completion of the reset interrupt. The module indicates this by asserting "low" an IntL signal with the Data_Not_Ready bit negated. Note that on power up (including hot insertion) the module should post this completion of reset interrupt without requiring a reset.

    5: Low speed signaling other than SCL and SDA is based on Low Voltage TTL (LVTTL) operating at Vcc. Vcc refers to the generic supply voltages of VccTx, VccRx, Vcc_host or Vcc1.

    Hosts shall use a pull-up resistor connected to Vcc_host on each of the 2-wire interface SCL (clock), SDA (data), and all low speed status outputs. The SCL and SDA is a hot plug interface that may support a bus topology.

    6: ModPrsL is pulled up to Vcc_Host on the host board and grounded in the module. The ModPrsL is asserted "Low" when inserted and deasserted "High" when the module is physically absent from the host connector.

    7: IntL is an output pin. When IntL is "Low", it indicates a possible module operational fault or a status critical to the host system. The host identifies the source of the interrupt using the 2-wire serial interface. The IntL pin is an open collector output and shall be pulled to host supply voltage on the host board. The INTL pin is deasserted "High" after completion of reset, when byte 2 bit 0 (Data Not Ready) is read with a value of ‘0‘ and the flag field is read (see SFF-8636).

    8: The LPMode pin shall be pulled up to Vcc in the module. The pin is a hardware control

    used to put modules into a low power mode when high. By using the LPMode pin and a combination of the Power_override, Power_set and High_Power_Class_Enable software control bits (Address A0h, byte 93 bits 0,1,2), the host controls how much power a module can dissipate.

    9: Rx(n)(p/n) are module receiver data outputs. Rx(n)(p/n) are AC-coupled 100 Ohm differential lines that should be terminated with 100 Ohm differentially at the Host ASIC(SerDes). The AC coupling is inside the module and not required on the Host board. For operation at 28 Gb/s the relevant standards (e.g., OIF CEI v3.1) define the signal requirements on the high-speed differential lines. For operation at lower rates, refer to the relevant standards.

    Note: Due to the possibility of insertion of legacy QSFP and QSFP+ modules into a host

    designed for higher speed operation, it is recommended that the damage threshold of the host input be at least 1600 mV peak to peak differential. Output squelch for loss of optical input signal, hereafter Rx Squelch, is required and shall function as follows. In the event of the optical signal on any channel becoming equal to or less than the level required to assert LOS, then the receiver data output for that channel shall be squelched or disabled. In the squelched or disabled state output impedance levels are maintained while the differential voltage swing shall be less than 50 mVpp. In normal operation the default case has Rx Squelch active. Rx Squelch can be deactivated using Rx Squelch Disable through the 2-wire serial interface. Rx Squelch Disable is an optional function. For specific details refer to SFF-8636.

    10: Tx(n)(p/n) are module transmitter data inputs. They are AC-coupled 100 Ohm differential lines with 100 Ohm differential terminations inside the module. The AC coupling is inside the module and not required on the Host board. For operation at 28 Gb/s the relevant standards (e.g., OIF CEI v3.1) define the signal requirements on the high-speed differential lines. For operation at lower rates, refer to the relevant standards. Due to the possibility of insertion of modules into a host designed for lower speed operation, the damage threshold of the module input shall be at least 1600 mV peak to peak differential. Output squelch, hereafter Tx Squelch, for loss of input signal, hereafter Tx LOS, is an optional function. Where implemented it shall function as follows. In the event of the differential, peak-to-peak electrical signal on any channel becomes less than 50 mVpp, then the transmitter optical output for that channel shall be squelched or disabled and the associated TxLOS flag set. Where squelched, the transmitter OMA shall be less than or equal to -26 dBm and when disabled the transmitter power shall be less than or equal to -30 dBm. For applications, e.g. Ethernet, where the transmitter off condition is defined in terms of average power, disabling the transmitter is recommended and for applications, e.g. InfiniBand, where the transmitter off condition is defined in terms of OMA, squelching the transmitter is recommended. In module operation, where Tx Squelch is implemented, the default case has Tx Squelch active. Tx Squelch can be deactivated using Tx Squelch Disable through the 2-wire serial interface. Tx Squelch Disable is an optional function. For specific details refer to SFF- 8636.
