SFP Transceiver

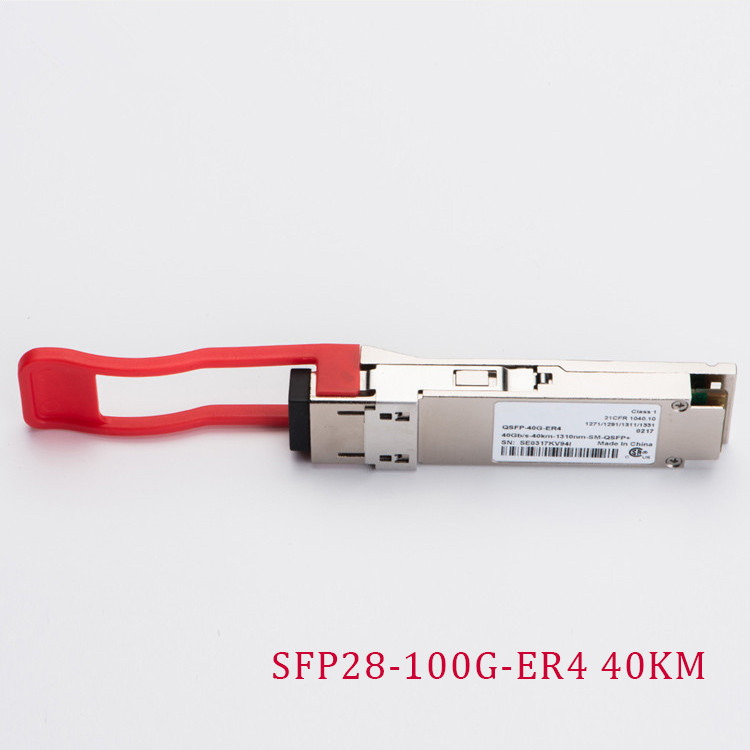

QSFP28 100G ER4

Hot pluggable QSFP28 MSA form factor
Compliant to IEEE 802.3ba 100GBASE-ER4
Up to 10km reach for G.652 SMF
Single +3.3V power supply
Operating case temperature: 0~70oC
Transmitter: cooled 4x25Gb/s LAN WDM EML
TOSA (1295.56, 1300.05, 1304.58, 1309.14nm)
Receiver: 4x25Gb/s PIN ROSA
4x28G Electrical Serial Interface (CEI-28G-VSR)
Maximum power consumption 4.0W
Duplex LC receptacle
RoHS-6 compliant

    Overview

    100G QSFP28 ER4 is a 100Gbps transceiver module designed for optical communication applications compliant to 100GBASE-LR4 of the IEEE P802.3ba standard. The module converts 4 input channels of 25Gbps electrical data to 4 channels of LAN WDM optical signals and then multiplexes them into a single channel for 100Gbps optical transmission. Reversely on the receiver side, the module de-multiplexes a 100Gbps optical input into 4 channels of LAN WDM optical signals and then converts them to 4 output channels of electrical data.

    The central wavelengths of the 4 LAN WDM channels are 1295.56, 1300.05, 1304.58 and 1309.14 nm as members of the LAN WDM wavelength grid defined in IEEE 802.3ba. The high performance cooled LAN WDM EA-DFB transmitters and high sensitivity PIN receivers provide superior performance for 100Gigabit Ethernet applications up to 10km links and compliant to optical interface with IEEE802.3ba Clause 88 100GBASE-LR4 requirements.

    The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP+ Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.

    Features

    · Hot pluggable QSFP28 MSA form factor

    · Compliant to IEEE 802.3ba 100GBASE-ER4

    · Up to 10km reach for G.652 SMF

    · Single +3.3V power supply

    · Operating case temperature: 0~70oC

    · Transmitter: cooled 4x25Gb/s LAN WDM EML

    · TOSA (1295.56, 1300.05, 1304.58, 1309.14nm)

    · Receiver: 4x25Gb/s PIN ROSA

    · 4x28G Electrical Serial Interface (CEI-28G-VSR)

    · Maximum power consumption 4.0W

    · Duplex LC receptacle

    · RoHS-6 compliant



    Parameter

    Package (Form Factor)

    QSFP28 ER4

    Data Rate (typical)

    25.78 Gbps/CH

    Centre Wavelength

    1295.56,1300.05,1304.58,1309.14nm

    Distance

    10km on SMF

    Diagnostics

    Digital Monitor

    Transmitter

    4CH Cooled EML Laser

    Receiver

    4CH PIN photo detector Array

    TX Output Power (dBm)

    -4.3~+4.5

    RX Sensitivity (dBm)

    -8.6

    Low/High Case Temperature

    0°C~70°C

    Voltage Supply (typical)

    3.3v

    Connector

    Duplex LC/UPC

    · 100GBASE-LR4 Ethernet LinksApplication

    · Infiniband QDR and DDR interconnects

    · Client-side 100G Telecom connections
