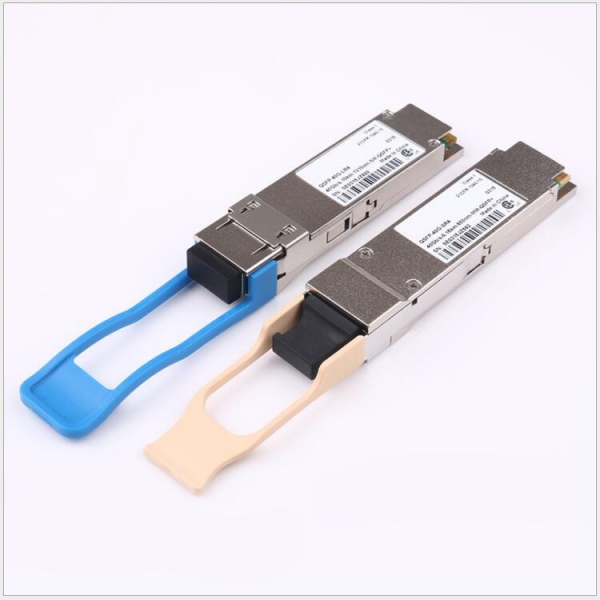

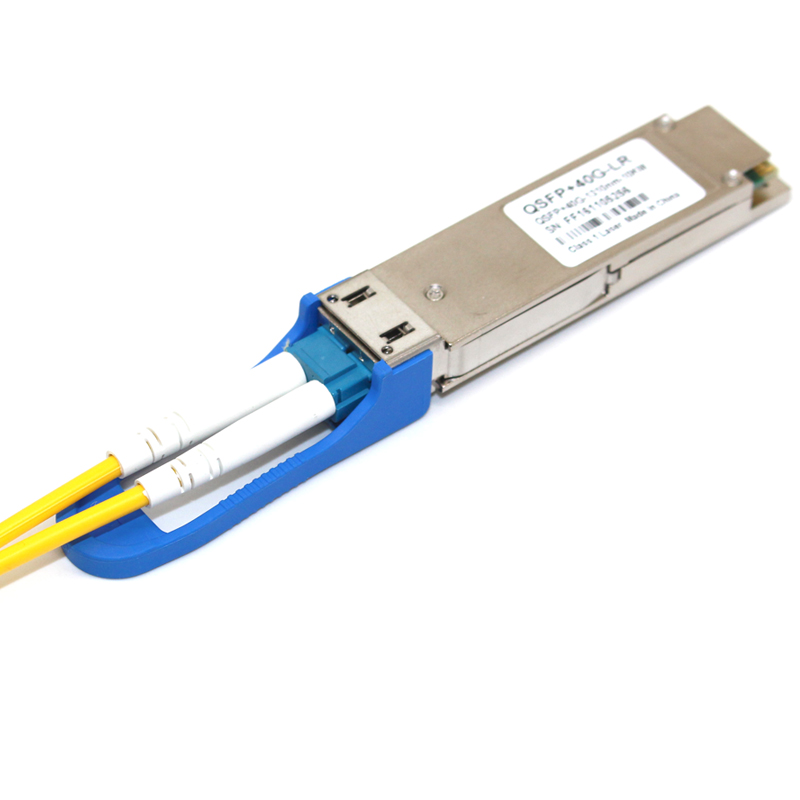

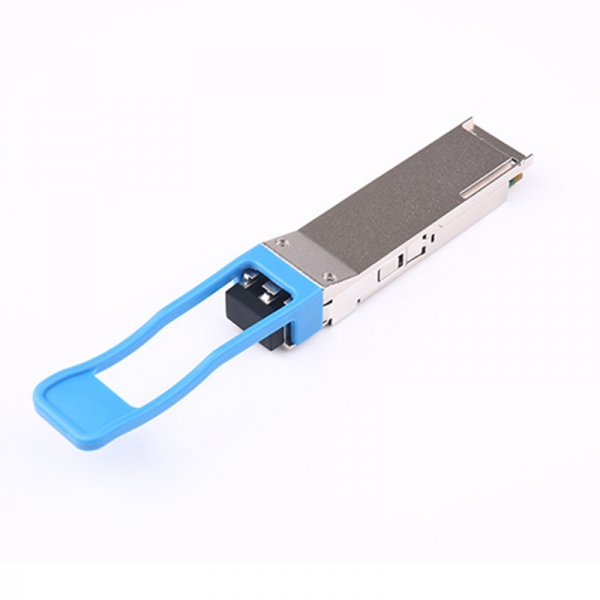

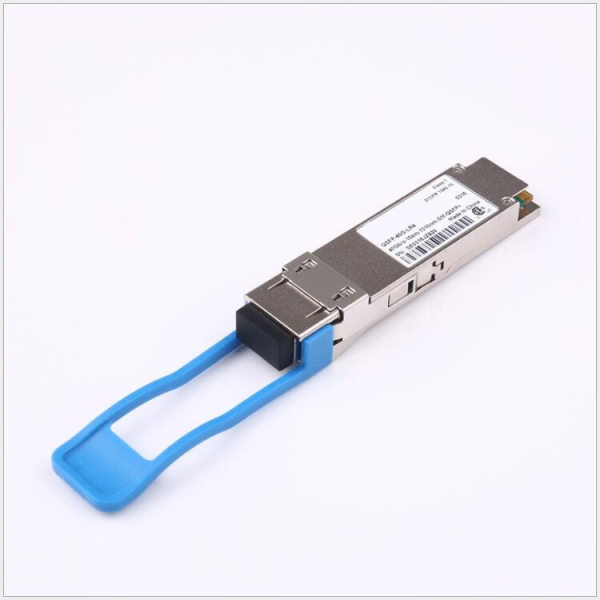

QSFP-40GE-LR4 40gb Optics Qsfp28 Sfp Sr4 Lr4 Qsfp to sfp 40gbps

Quick Details
Place of Origin: Guangdong, China
Brand Name: Homenet
Model Number: QSFP-40GE-LR4
ODM/OEM: Support
Model: QSFP-40GE-LR4
Connector Type: QSFP-40GE-LR4
Data Rate: LC Duplex
Distance: 10KM
Wavelength: 1310nm
Fiber Type: QSFP28
Application: FTTH FTTB FTTX Network
Compatible: Cisco, HP, Huawei, H3C, Alcatel, Juniper Networks, etc.
Warranty: 5 year

    Product Features

     Four-channel full-duplex transceiver modules

    Transmission data rate up to 11.2Gbit/s per channel

    Up to 10km transmission of single mode fiber

    DFB laser array inside

    Low power consumption <2.5W,

    Operating case temperature

    C to +70°C

    3.3V power supply voltage

    RoHS 6 compliant

    Hot Pluggable QSFP form factor

    Single MPO connector receptacle

    Built-in digital diagnostic function



    Applications

    InfiniBand QDR, DDR and SDR

    40G Ethernet

    Proprietary High Speed Interconnections

    Data center





    Product Descriptions

     40Gb/s QSFP+ PSM 10km  is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP+ Transceiver for InfiniBand QDR/DDR/SDR, 10G/8G/4G/2G fiber channel . and SAS Applications. The QSFP full-duplex optical module offers 4 independent transmit and receive channels, each capable of 10.3Gbps operation for an aggregate

    data rate of 40Gbps 10km using single mode fiber. These modules are designed to operate over single mode fiber systems using 1310nm DFB laser array. An optical fiber ribbon cable with an MPO/MTPTM connector can be plugged into the QSFP module receptacle. QSFP+ PSM LR4 is one kind of parallel transceiver which provides increased port density and total system cost savings.
