QSFP 40G ER4

Compliant with 40G Ethernet IEEE802.3ba and
40GBASE-ER4 Standard
QSFP+ MSA compliant
Compliant with QDR/DDR Infiniband data rates
Up to 11.2Gb/s data rate per wavelength
4 CWDM lanes MUX/DEMUX design
Up to 40km reach over standard single mode fiber
Operating case temperature 0°C to +70°C
3.5V power supply
RoHS 6 compliant (lead free)

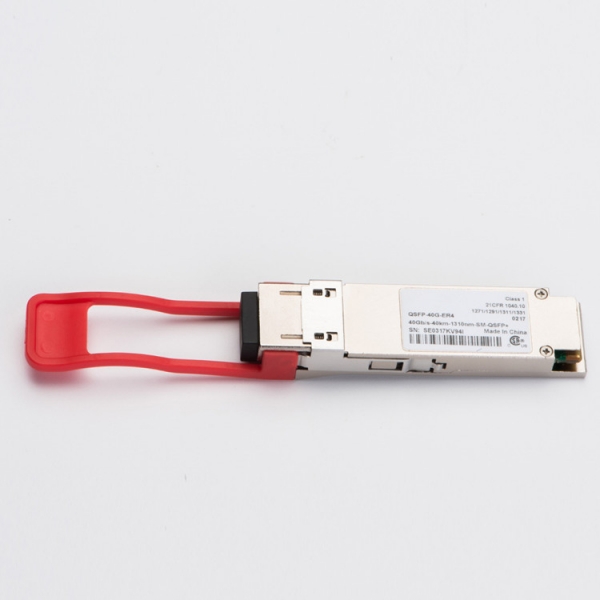

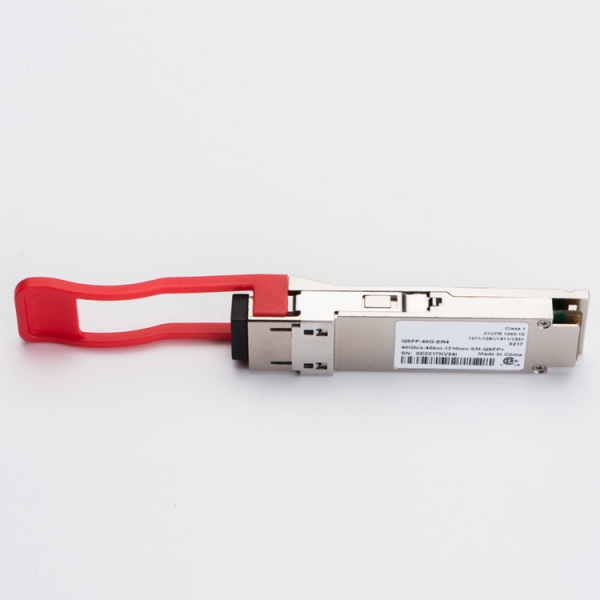

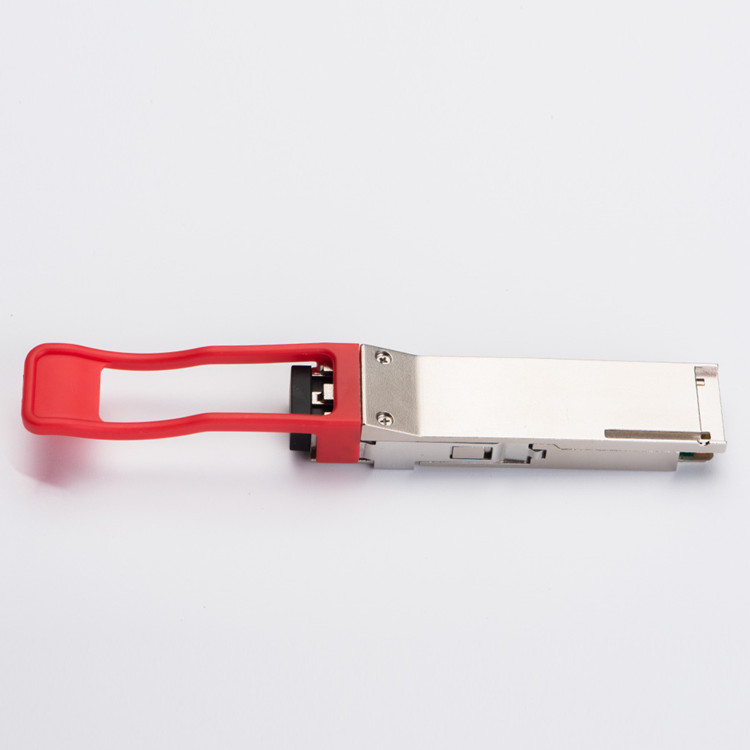

    40G QSFP ER4 is a 4x10G hot pluggable optical transceiver. The Sourcelight Technology enables the integration of 4 transmitters, 4 receivers and an optical MUX/DeMUX into a small form factor package that delivers a 40Gbps data link in a compact QSFP footprint.

    The optical connectivity is based on two SMF LC connectors, one for Tx and one for Rx. The Tx and Rx each consist of 4 10GB/s CWDM channels, whose wavelengths are in the 1300nm range. The QSFP-ER transceiver is designed for applications based on the IEEE 802.3ba 40BASE-ER4 standard of up to 40km reach.



    · Features

    ·

    · Compliant with 40G Ethernet IEEE802.3ba and

    · 40GBASE-ER4 Standard

    · QSFP+ MSA compliant

    · Compliant with QDR/DDR Infiniband data rates

    · Up to 11.2Gb/s data rate per wavelength

    · 4 CWDM lanes MUX/DEMUX design

    · Up to 40km reach over standard single mode fiber

    · Operating case temperature 0°C to +70°C

    · 3.5V power supply

    · RoHS 6 compliant (lead free)

    ·

    · Parameter

    Package (Form Factor)

    QSFP+

    Data Rate (typical)

    10.3 Gbps/CH

    Centre Wavelength

    1270/1290/1310/1330nm

    Distance

    40km

    Diagnostics

    Digital Monitor

    Transmitter

    4 CWDM un-cooled DFB Laser

    Receiver

    4CH APD photo detector

    TX Output Power (dBm)

    -3.7~+4.5

    RX Sensitivity (dBm)

    -18

    Low/High Case Temperature

    0°C~70°C

    Voltage Supply (typical)

    3.3v

    Connector

    Duplex LC/UPC

    Application

    · 40GBASE-ER4 40G Ethernet links

    · Infiniband QDR and DDR interconnects

    · Client-side 40G Telecom connections
