SFP Transceiver

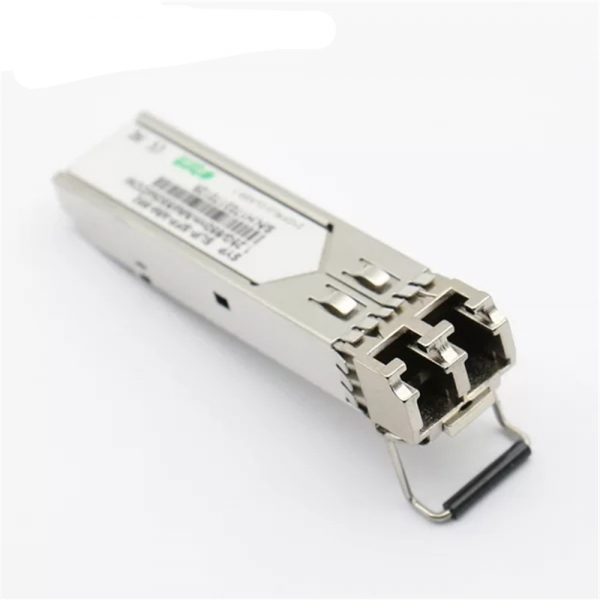

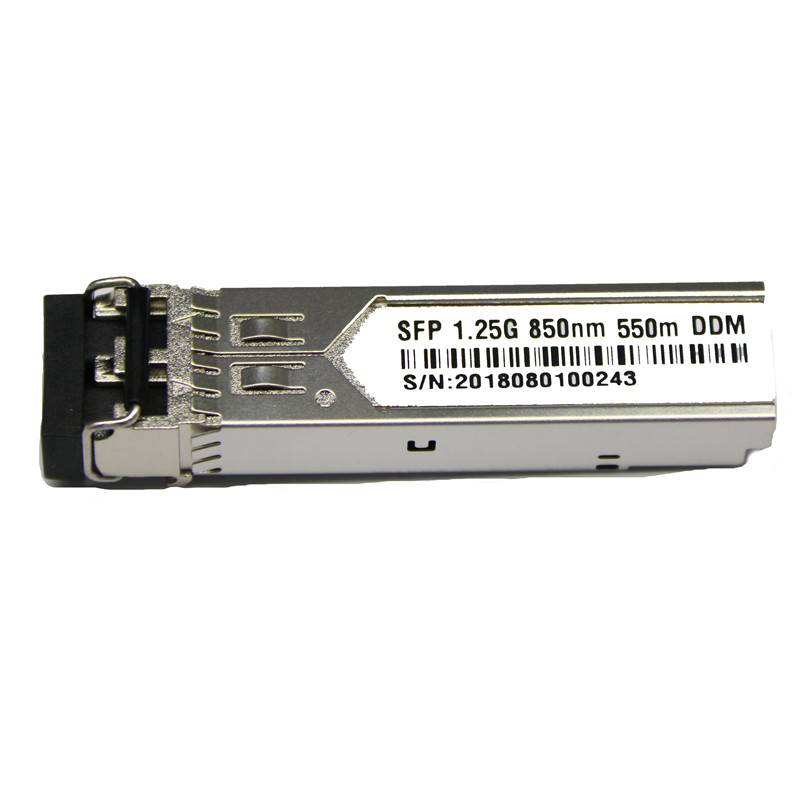

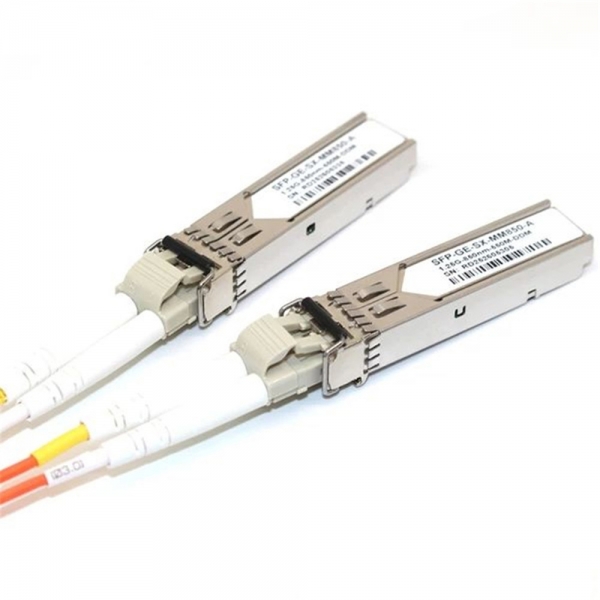

GLX-SX-MMD SFP 1.25G 850nm MMF 550m 300m DDM 6G Sfp Multi ModeTransceivers

Product Features

850nm VCSEL laser and PIN photodetector

Up to2.125Gbps data rate operation

Compliant with SFP MSA and SFF-8472 with duplex LC receptacle

Digital Diagnostic Monitor Interface

500m transmission with 50/125µm MMF

300m transmission with 62.5/125µm MMF

Very low EMI and excellent ESD protection

+3.3V single power supply

RoHS compliant

Case operating temperature

              Commercial: 0°C to +70°C

              Extended: -20°C to +80°C

              Industrial: -40°C to +85°C

    Product Features

    850nm VCSEL laser and PIN photodetector

    Up to2.125Gbps data rate operation

    Compliant with SFP MSA and SFF-8472 with duplex LC receptacle

    Digital Diagnostic Monitor Interface

    500m transmission with 50/125µm MMF

    300m transmission with 62.5/125µm MMF

    Very low EMI and excellent ESD protection

    +3.3V single power supply

    RoHS compliant

    Case operating temperature

                  Commercial: 0°C to +70°C

                  Extended: -20°C to +80°C

                  Industrial: -40°C to +85°C





    Applications

    Gigabit Ethernet

    Fiber Channel

    Switch to Switch interface

    Switched backplane applications

    Router/Server interface

    Other optical transmission systems





    Description

    The SFP transceivers are high performance, cost effective modules supporting data-rate of 1.25Gbps and 550m transmission distance with MMF.

    The transceiver consists of three sections: a VCSEL laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.

    The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
