1.PRODUCT FEATURES
l Support 10Gbase-T / 5Gbase-T / 2.5Gbase-T / 1000base-T
l Hot-pluggable SFP footprint
l Compact RJ-45 connector assembly
l RoHS compliant and lead-free
l Single +3.3V power supply
l 10 Gigabit Ethernet over Cat 6a cable
l Ambient Operating temperature: 0°C to +65°C
2.PRODUCT DESCRIPTION

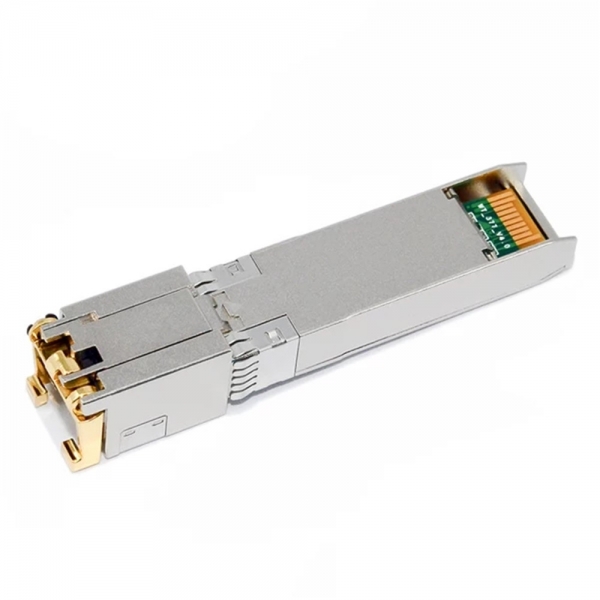

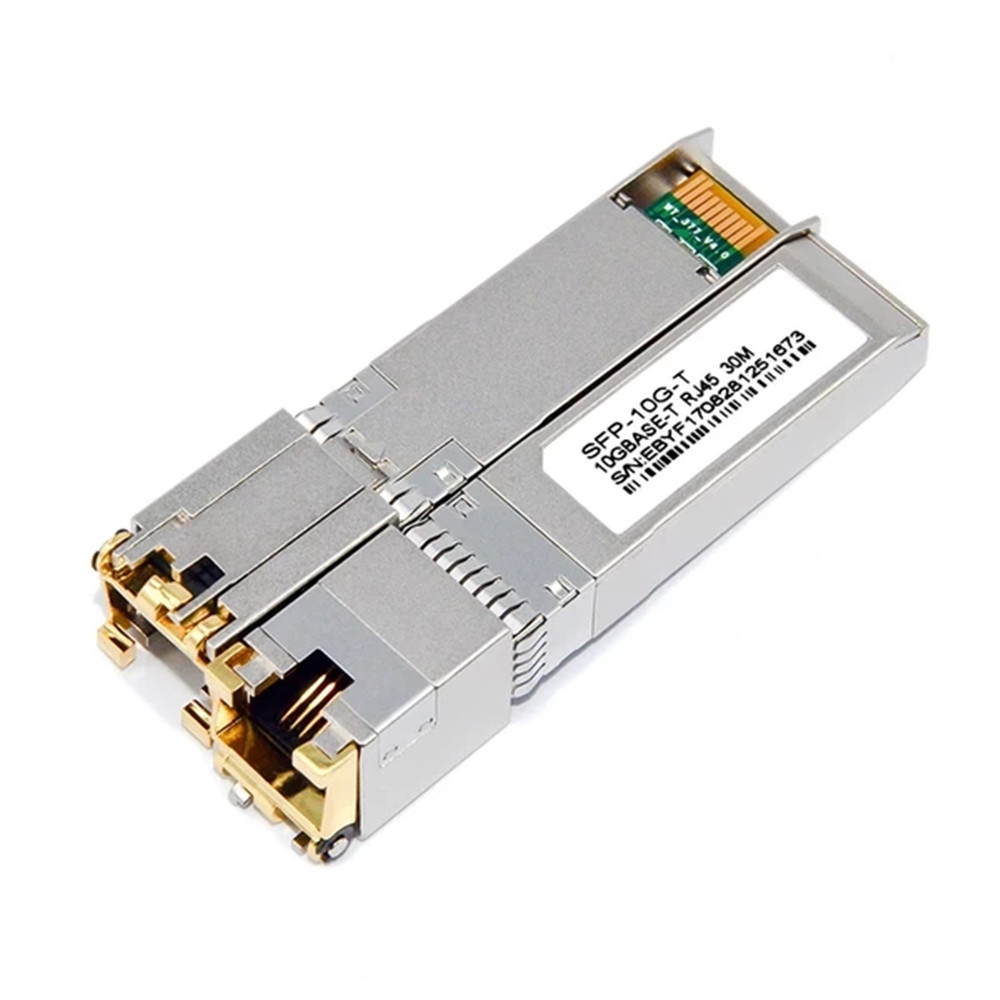

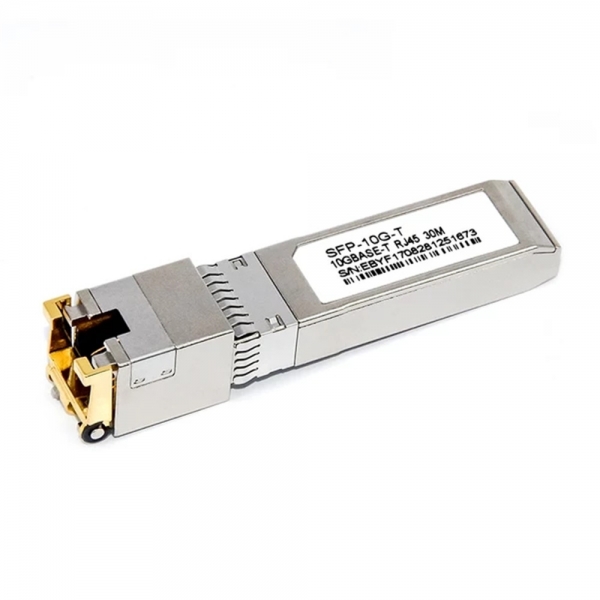

SFP+-10GBASE-T Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi Source Agreement (MSA) . They are compatible with the 10Gbase-T / 5Gbase-T / 2.5Gbase-T / 1000base-T standards as specified in IEEE Std 802.3 . SFP+-10GBASE-T uses the SFP‘s RX_LOS pin for link indication. If pull up SFP‘s TX_DISABLE pin, PHY IC be reset.
3. Cable Length
|
Standard |
Cable |
Reach |
Host Port |
|
10Gbase-T |
CAT6A |
30m |
XFI |
|
5Gbase-T/2.5Gbase-t |
CAT5E |
50m |
5GBase-R/2.5GBase-X |
|
1000base-T |
CAT5E |
100m |
1000base-FX |
4.SFP to Host Connector Pin Out
|
Pin |
Symbol |
Name/Description |
Ref. |
|
1 |
VEET |
Transmitter Ground (Common with Receiver Ground) |
1 |
|
2 |
TFAULT |
Transmitter Fault. Not supported. |
|
|
3 |
TDIS |
Transmitter Disable. Laser output disabled on high or open. |
2 |
|
4 |
MOD_DEF(2) |
Module Definition 2. Data line for Serial ID. |
3 |
|
5 |
MOD_DEF(1) |
Module Definition 1. Clock line for Serial ID. |
3 |
|
6 |
MOD_DEF(0) |
Module Definition 0. Grounded within the module. |
3 |
|
7 |
Rate Select |
No connection required |
|
|
8 |
LOS |
High indicates no linked. low indicates linked. |
4 |
|
9 |
VEER |
Receiver Ground (Common with Transmitter Ground) |
1 |
|
10 |
VEER |
Receiver Ground (Common with Transmitter Ground) |
1 |
|
11 |
VEER |
Receiver Ground (Common with Transmitter Ground) |
1 |
|
12 |
RD- |
Receiver Inverted DATA out. AC Coupled |
|
|
13 |
RD+ |
Receiver Non-inverted DATA out. AC Coupled |
|
|
14 |
VEER |
Receiver Ground (Common with Transmitter Ground) |
1 |
|
15 |
VCCR |
Receiver Power Supply |
|
|
16 |
VCCT |
Transmitter Power Supply |
|
|
17 |
VEET |
Transmitter Ground (Common with Receiver Ground) |
1 |
|
18 |
TD+ |
Transmitter Non-Inverted DATA in. AC Coupled. |
|
|
19 |
TD- |
Transmitter Inverted DATA in. AC Coupled. |
|
|
20 |
VEET |
Transmitter Ground (Common with Receiver Ground) |
1 |
