Description:

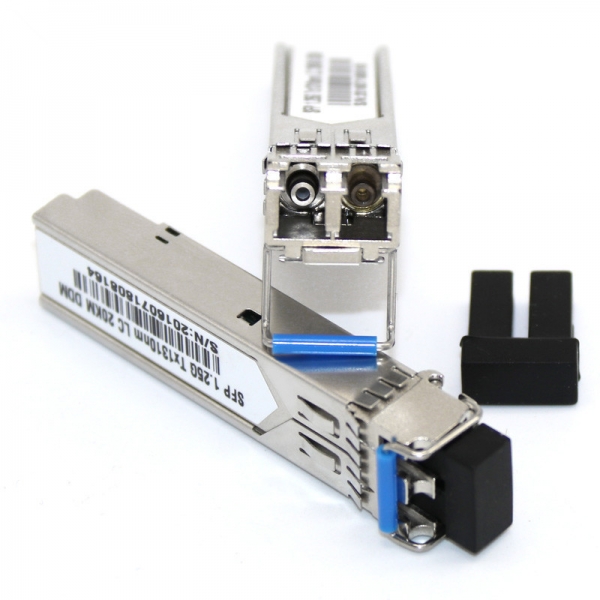

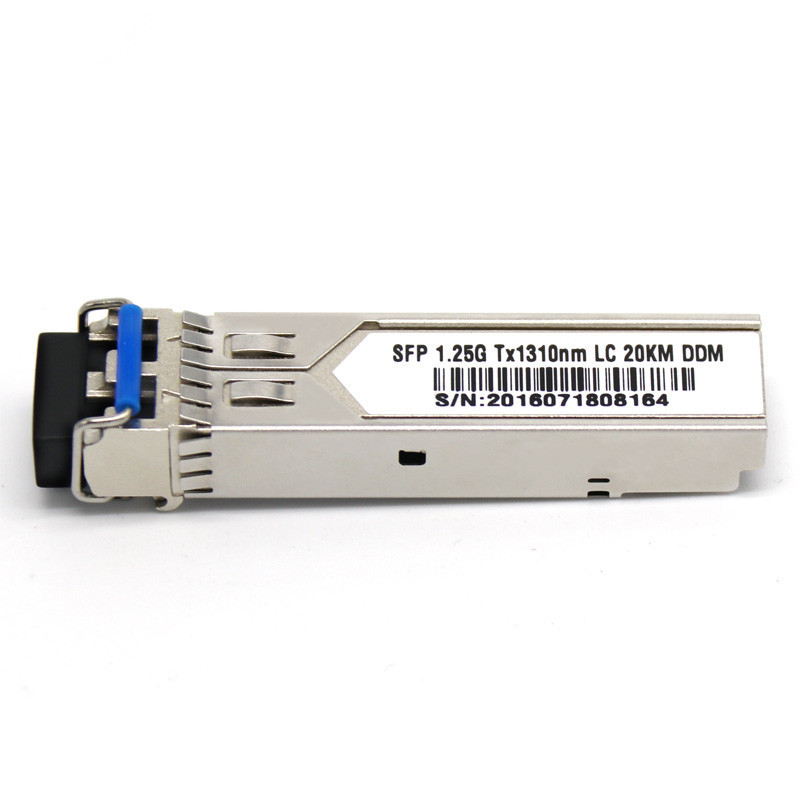

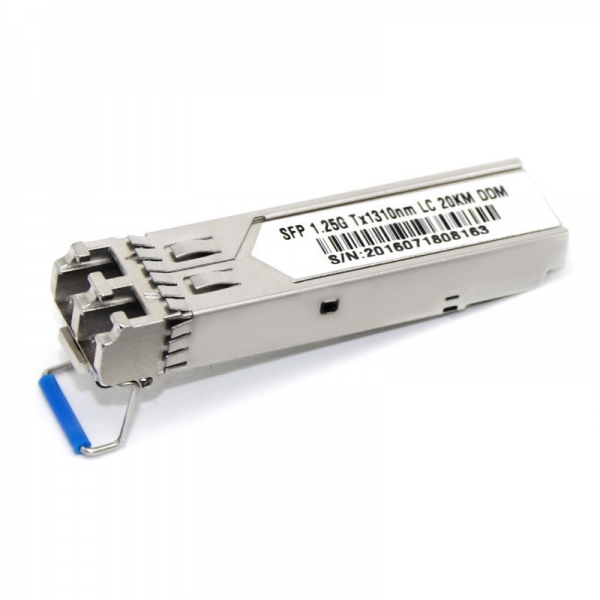

The SFP transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 20km transmission distance with SMF.The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472.
Product Specifications:
1.Dual data-rate of 1.25Gbps/1.063Gbps operation
2.1310nm FP laser and PIN photodetector for 10/20/40km transmission
3.Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
4.Digital Diagnostic Monitoring:
5.Internal Calibration or External Calibration
6.Compatible with SONET OC-24-LR-1
7.Operating case temperature: Standard: 0 to +70°C, Industrial: -40 to +85°C
8.Compatible with RoHS
9.+3.3V single power supply
Applications:
1.Gigabit Ethernet
2.Fiber Channel
3.Switch to Switch interface
4.Switched backplane applications
5.Router/Server interface
6.Other optical transmission systems
Parameters:
|
Data Rate |
1.25G |
Fiber Mode |
Single Mode Fiber (SMF) |
|
Types of Interface |
LC |
Types of Laser |
FP |
|
Operating Temperature |
Standard 0~70°C |
Operating Humidity |
0%~90% RH (non condensing) |
|
Transmission distance |
10/20/40km |
Modes of Communications |
Duplex |
|
Wavelength |
1310nm |
Hot Pluggable Times |
200 |
|
Receiver Sensitivity |
<-23dBm |
Extinction Ratio |
>9dB |
|
Saturated Optical Power |
-3dBm |
Power Consumption |
<3W |
|
Weight |
0.024kg |
Power Supply |
+3.3V |
|
Hot Pluggable Times |
200 |
Average Output Power |
-9 ~ -3dBm |
