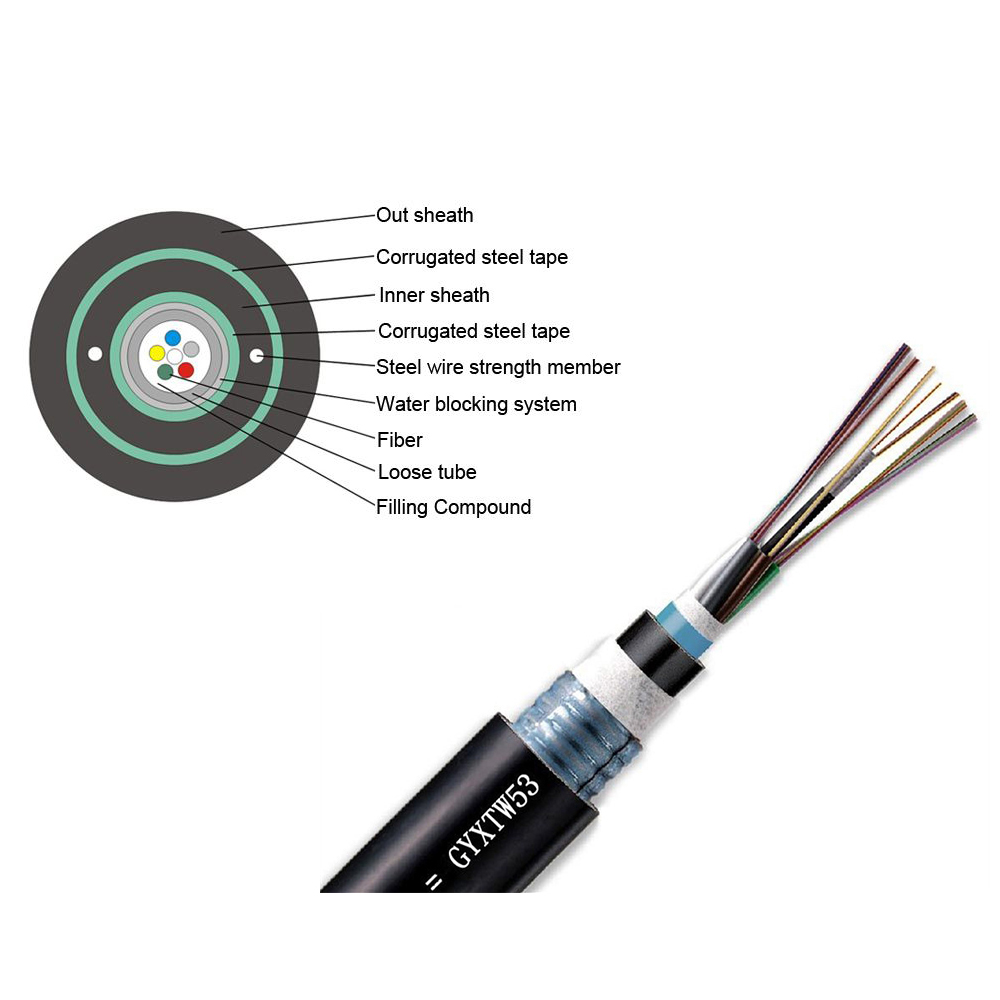

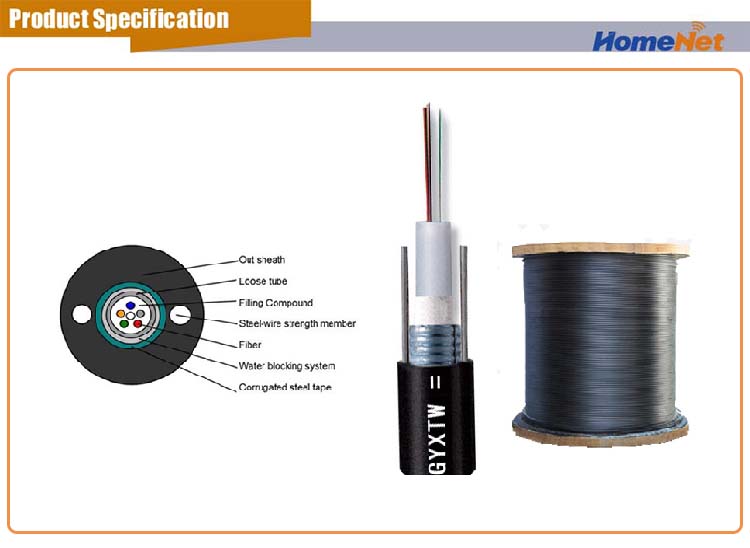

Single mode or multimode fibres are position in a loose tube made of a high modulus plastic.The tube are filled with a water resistant filling compound.A steel wire,sometimes sheathed with ployethylene(PE) for cable with high fiber count,locates in the center of core as a metallic strength member.
Tubes (and fillers) are stranded around the strength member into a compact and circular cable core.the cable core is filled with filling compound to protect it from water ingress,over which a thin PE inner sheath is applied.After the PSP is longitudinally applied overthe inner sheath, the cable is completed with a PE sheath.
|
Items |
Specifications |
|
|
Fiber Count |
2~24 |
|
|
Colored Coating Fiber |
Dimension |
250µm±15µm |
|
Color |
Blue, Orange, Green, Brown, Gray, White |
|
|
Loose Tube |
Dimension |
2.10mm±0.05mm |
|
Material |
PBT |
|
|
Color |
Natural |
|
|
Strength Member |
Diameter |
1.0mm |
|
Material |
Steel |
|
|
Outer Jacket |
Dimension |
8.0mm±0.1mm |
|
Material |
PE |
|
|
Color |
Black |
|
|
Transmission Characteristics |
|||||
|
|
G.652 |
G.655 |
50/125μm |
62.5/125μm |
|
|
Max Attenuation (dB/km) (+20℃) |
850 nm |
|
|
3.0 |
3.3 |
|
1300 nm |
|
|
1.0 |
1.0 |
|
|
1310 nm |
0.36 |
0.4 |
|
|
|
|
1550 nm |
0.24 |
0.23 |
|
|
|
|
Cable Cute-off Wavelength (nm) |
≤1260 |
≤1450 |
|
||
