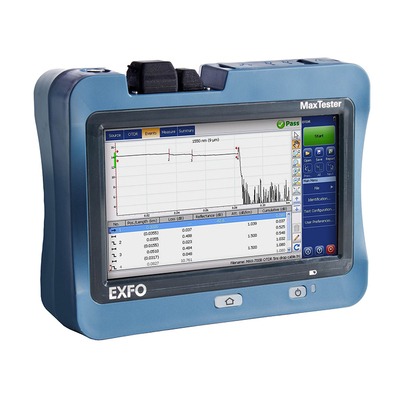

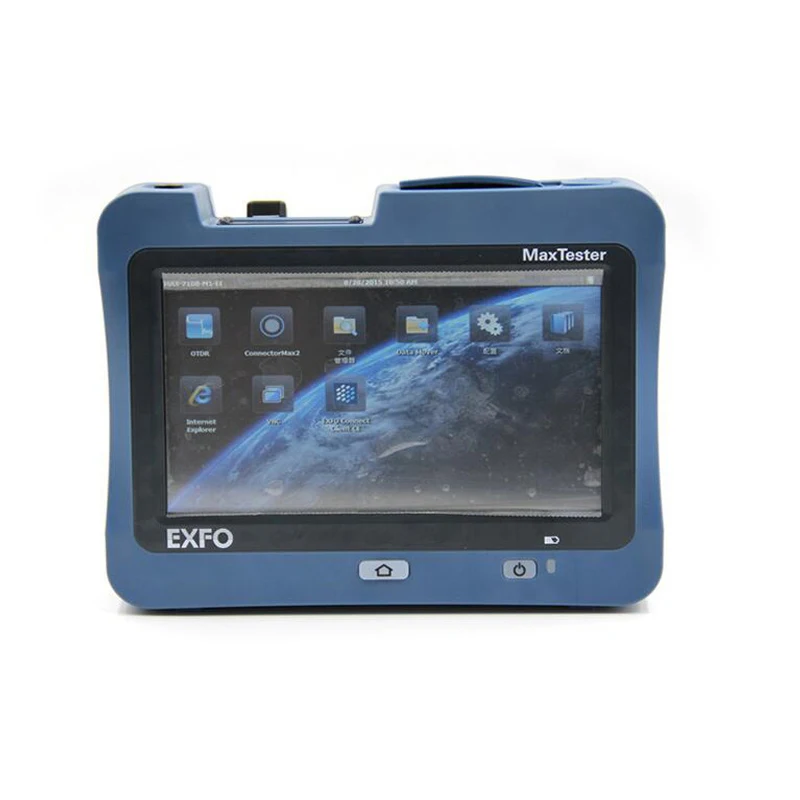

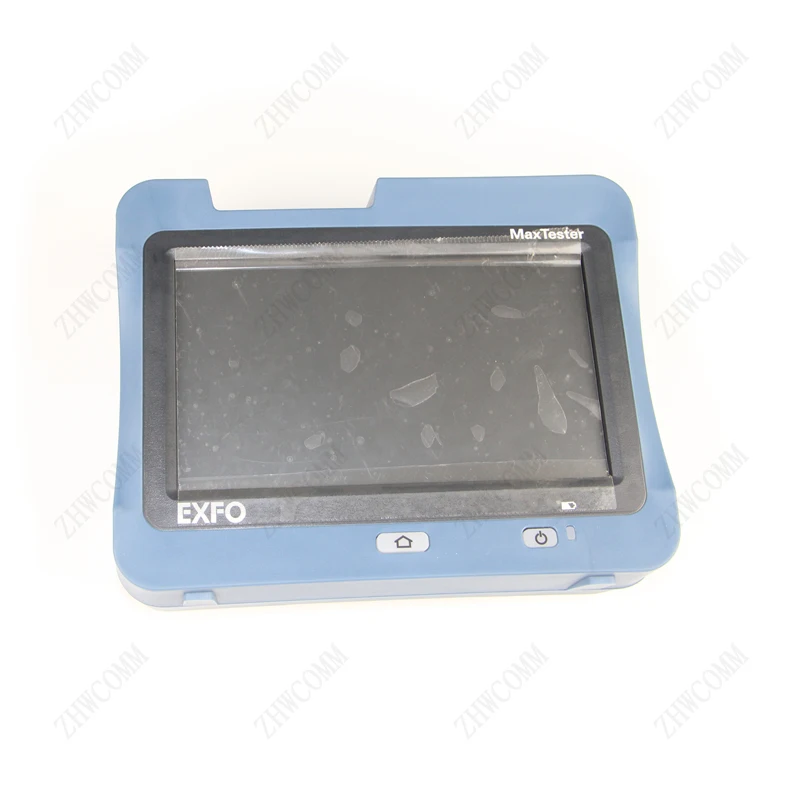

Handy, lightweight, powerful, tablet-inspired design
7-inch, outdoor-enhanced touchscreen – the biggest in
the handheld industry
12-hour autonomy
Dead zones: EDZ 1 m, ADZ 4 m
Dynamic range of 30/28 dB
Rugged design built for outside plant
7-inch, outdoor-enhanced touchscreen – the biggest in
the handheld industry
12-hour autonomy
Dead zones: EDZ 1 m, ADZ 4 m
Dynamic range of 30/28 dB
Rugged design built for outside plant
Application
FTTx last-mile installation and troubleshooting
Short access network testing
FTTA-fi ber DAS installations
CATV/HFC network testing
FTTx last-mile installation and troubleshooting
Short access network testing
FTTA-fi ber DAS installations
CATV/HFC network testing
|
TECHNICAL SPECIFICATIONS
|
MAXTESTER 710B
|
|
Display
|

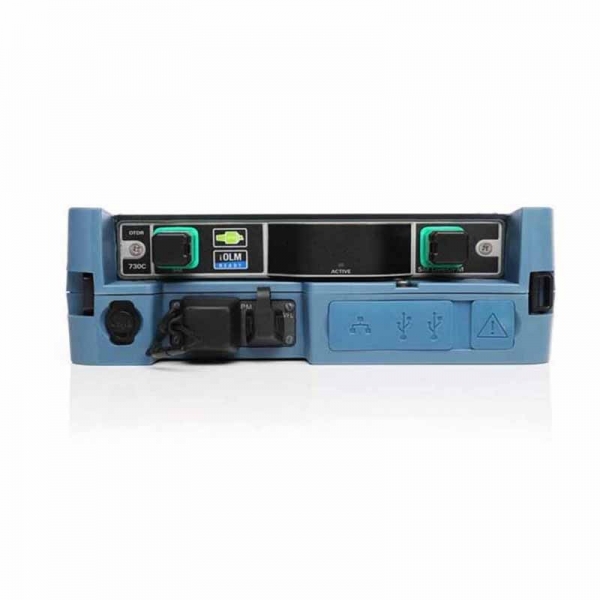

Two USB 2.0 ports
RJ-45 LAN 10/100 Mbit/s |
|
Storage
|
2 GB internal memory (20 000 OTDR traces, typical)
|
|
Batteries
|
Rechargeable lithium-polymer battery
12 hours of operation as per Telcordia (Bellcore) TR-NWT-001138 |
|
Power supply
|
Power supply AC/DC adapter, input 100-240 VAC, 50-60 Hz, 9-16 V DCIN 15 Watts minimum
|
|
Wavelength
|
1310/1550nm
|
|
Dynamic range
|
30/28dB
|
|
Event dead zone
|
1m
|
|
Attenuation dead zone
|
4m
|
|
Distance range
|
0.1 to 160 km
|
|
Pulse width
|
5 ns to 20 us
|
|
Linearity
|
±0.05dB
|
|
Loss threshold
|
0.01dB
|
|
Loss resolution
|
0.001dB
|
|
Sampling resolution
|
0.04 to 5m
|
|
Sampling points
|
Up to 256 000
|
