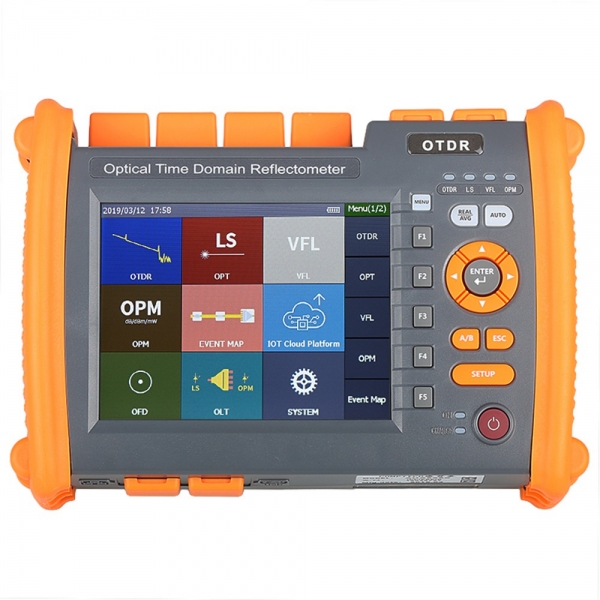

Application:
It is mainly used to measure the length,loss and connection quality of all kinds of optical fibers and cables,and can be widely used in engineering construction,line maintenance and testing,emergency repair,and the development and production of optical fiber and cables
The design concept of multifunctional integration ,precision testing and convenient operation makes and field test operation simple.
Feature
|
Model Item |
Multi-function OTDR |
|
5000 |
|
|
Fiber type |
SMF |
|
Display |
5.8inch color LCD touch screen |
|
wavelength |
1310/1550 |
|
Maxmum dynamic range(dB) |
32/30 |
|
Event blind zone(m) |
1 |
|
Attenuation dead zone(m) |
6 |
|
Measuring range |
500m/1km/2km/4km/8km/16km/32km/64km/128km/256km |
|
Measuring pluse width |
5ns/10ns/50ns/160ns/320ns/500ns/1000ns/5000ns/10000ns/20000ns |
|
Ranging accuracy |
±(0.75m+ Sampling interval±0.005% xTest distance) |
|
Loss precision |
±0.005dB |
|
Reflection accuracy |
±3dB |
|
Data storage |
≥2000 |
|

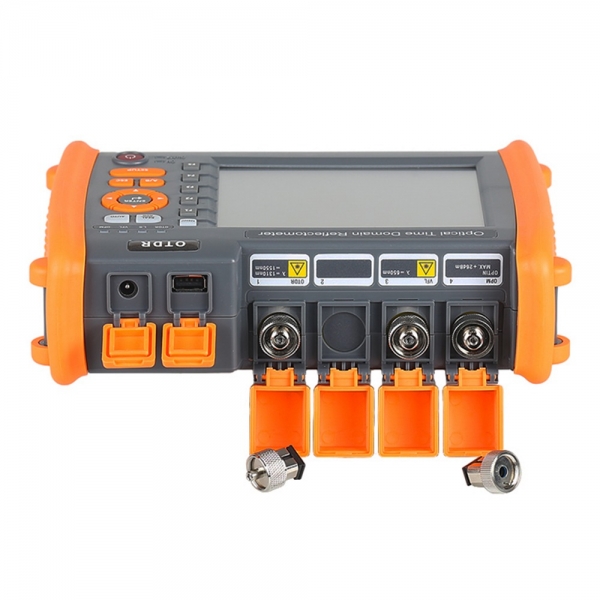

Interface type |
FC/PC(Replaceable SC,ST) |
|
Communication interface |
USB ,mini-USB,10M/100M Ethernet |
|
VFL outpute |
≥5mw |
